GEAR SHIFTING
GSX1300BK BKING 2008 (K8) USA (E03)

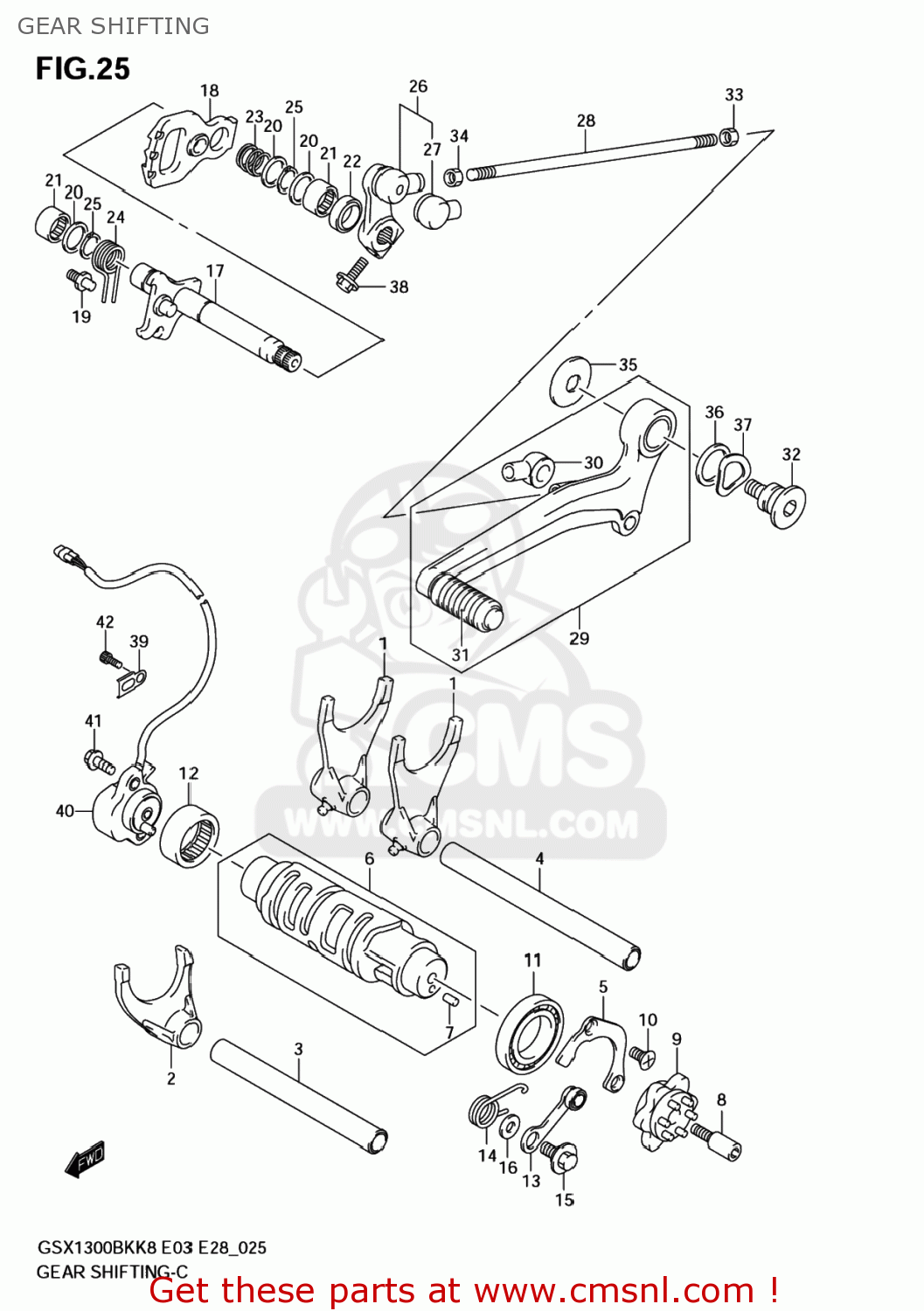

Gear shifting diagram GSX1300BK BKING 2008 (K8) USA (E03)
GEAR SHIFTING GSX1300BK BKING 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521124F20
ref: 1
FORK,GEAR SHIFT NO.1
€ 113.50
2
2523124F20
ref: 2
FORK,GEAR SHIFT NO.3
€ 114.00
3
2541124F00
ref: 3
SHAFT,SHIFT FORK NO.2(L:132)
€ 19.00
4
2541138B01
ref: 4
SHAFT,GEAR SHIFT FORK(L:152)
€ 20.00
5
2474124F10
ref: 5
RETAINER,SHIFT CAM BEARING
€ 5.50
6
2531024F00
ref: 6
CAM,GEAR SHIFT
€ 151.50
7
0422104089
ref: 7
PIN
€ 1.50
8
2531242F01
ref: 8
BOLT,GEAR SHIFT CAM PLATE
€ 5.50
9
2538113E00
ref: 9
PLATE,GEAR SHIFT CAM
€ 30.00
10
0912606011
ref: 10
SCREW(6X12)
€ 2.00
11
0926225006
ref: 11
BEARING(25X47X8)
€ 24.00
12
0926325018
ref: 12
BEARING(25X32X12)
€ 17.50
13
2535024F00
ref: 13
STOPPER,SHIFT CAM
€ 18.00
14
2535524F00
ref: 14
SPRING,STOPPER ARM
€ 11.00
15
0911106041
ref: 15
BOLT(6X14.3)
€ 3.00
16
0821106141
ref: 16
WASHER
€ 2.50
17
2551015H00
ref: 17
SHAFT,GEAR SHIFT
€ 70.00
18
2551206G10
ref: 18
PLATE,GEAR SHIFT CAM DRIVE
€ 20.00
19
2567101011
ref: 19
STOPPER,GEAR SHIFT ARM
€ 3.00
20
0918114167
ref: 20
SHIM(14X22X1)
€ 3.50
21
0926314027
ref: 21
BEARING(14X20X12)
€ 11.00
22
0928314006
ref: 22
SEAL,OIL(14X22X6)
€ 6.50
23
0944017009
ref: 23
SPRING
€ 1.50
24
0944420001
ref: 24
SPRING
€ 5.00
25
0833131146
ref: 25
08331-3114A
CIRCLIP
€ 2.00
26
2552017G10
ref: 26
ARM,GEAR SHIFT LINK
€ 52.00
27
2552647000
ref: 27
COVER,DUST
€ 3.50
28
2552523H00
ref: 28
ROD,GEAR SHIFT LINK
€ 17.00
29
2560023H00
ref: 29
LEVER ASSY,GEA
€ 178.50
30
2552647000
ref: 30
COVER,DUST
€ 3.50
31
2565220C00
ref: 31
RUBBER,GEAR SHIFT PEDAL
€ 8.00
32
2561718H00
ref: 32
BOLT,GEAR SHIFT LEVER
€ 25.00
33
0914006020
ref: 33
NUT
€ 2.50
34
0914006025
ref: 34
NUT
€ 2.00
35
0916010144
ref: 35
WASHER(10X30X2.5)
€ 6.50
36
0916018037
ref: 36
WASHER(18X26X1)
€ 3.50
37
0916418009
ref: 37
WASHER
€ 1.50
38
015000620A
ref: 38
BOLT
€ 2.00
39
3149745000
ref: 39
CLAMP,GENERATOR LEAD WIRE
€ 1.50
40
3773015H00
ref: 40
SENSOR. VERSNEL
€ 122.50
41
071200516A
ref: 41
BOLT
€ 1.50
42
071300510B
ref: 42
BOLT
€ 2.00
