RADIATOR
GSX1300BK BKING 2008 (K8) USA (E03)

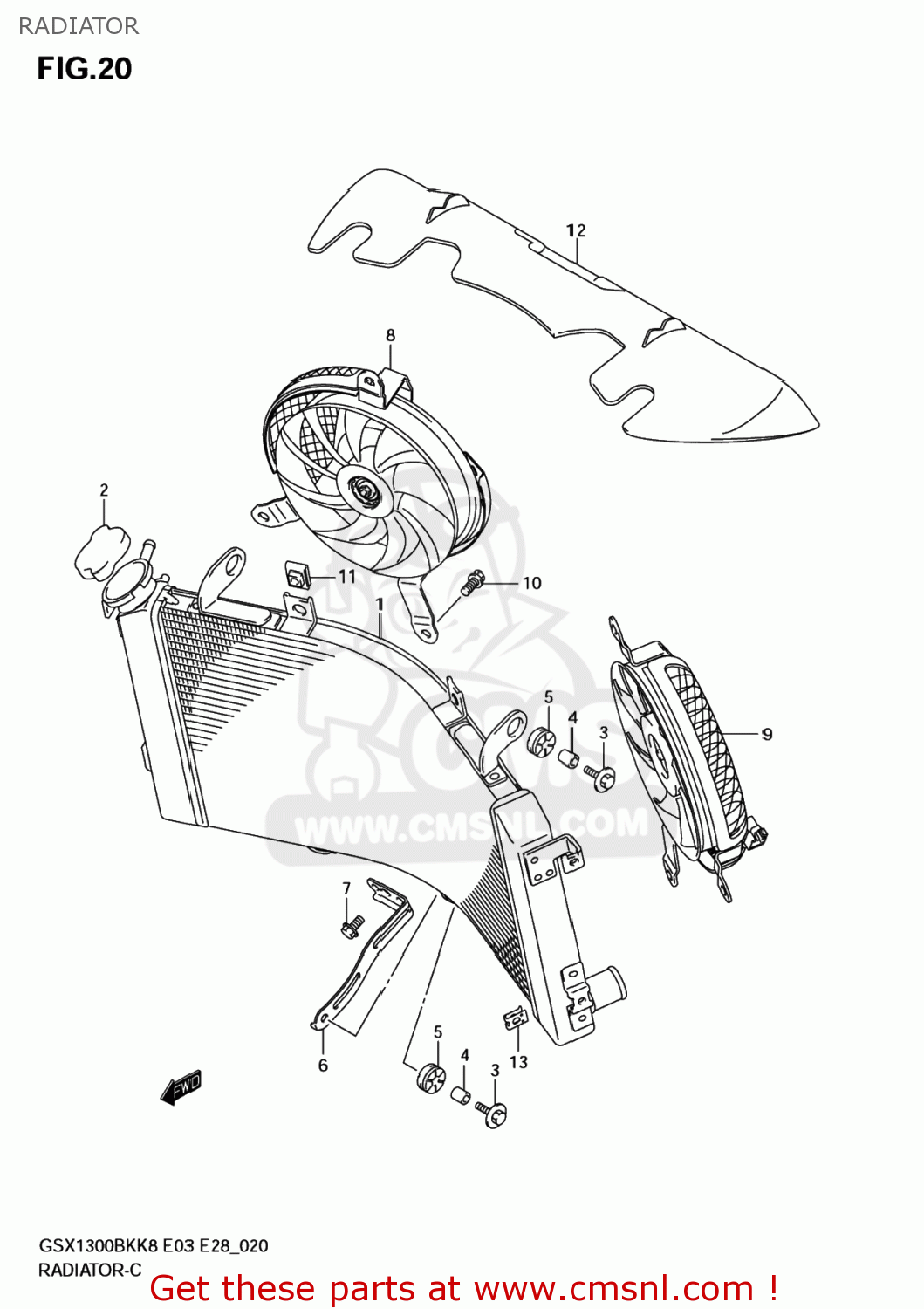

Radiator diagram GSX1300BK BKING 2008 (K8) USA (E03)
RADIATOR GSX1300BK BKING 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771023H00
ref: 1
RADIATOR ASSY,WATER
€ 1,097.00
2
1773012C20
ref: 2
17730-08J00
CAP COMP,RADIATOR
€ 40.00
3
0911806097
ref: 3
BOLT(6X25)
€ 2.50
4
0918006290
ref: 4
SPACER(6.5X10X12)
€ 2.50
5
0932010051
ref: 5
CUSHION
€ 3.50
6
1775024F00
ref: 6
BRACKET,RADIATOR
€ 8.00
7
015500612A
ref: 7
BOLT
€ 2.50
8
1781015H00
ref: 8
FAN ASSY,RADIATOR,R
€ 462.50
9
1782015H00
ref: 9
FAN ASSY,RADIATOR,L
€ 462.50
10
1771140F00
ref: 10
BOLT,FAN ASSY
€ 3.50
11
1771240F00
ref: 11
NUT,FAN ASSY
€ 3.50
12
1777123H00
ref: 12
SHIELD,RADIATOR HEAT
€ 25.50
13
0914805052
ref: 13
NUT
€ 3.50
