BATTERY

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

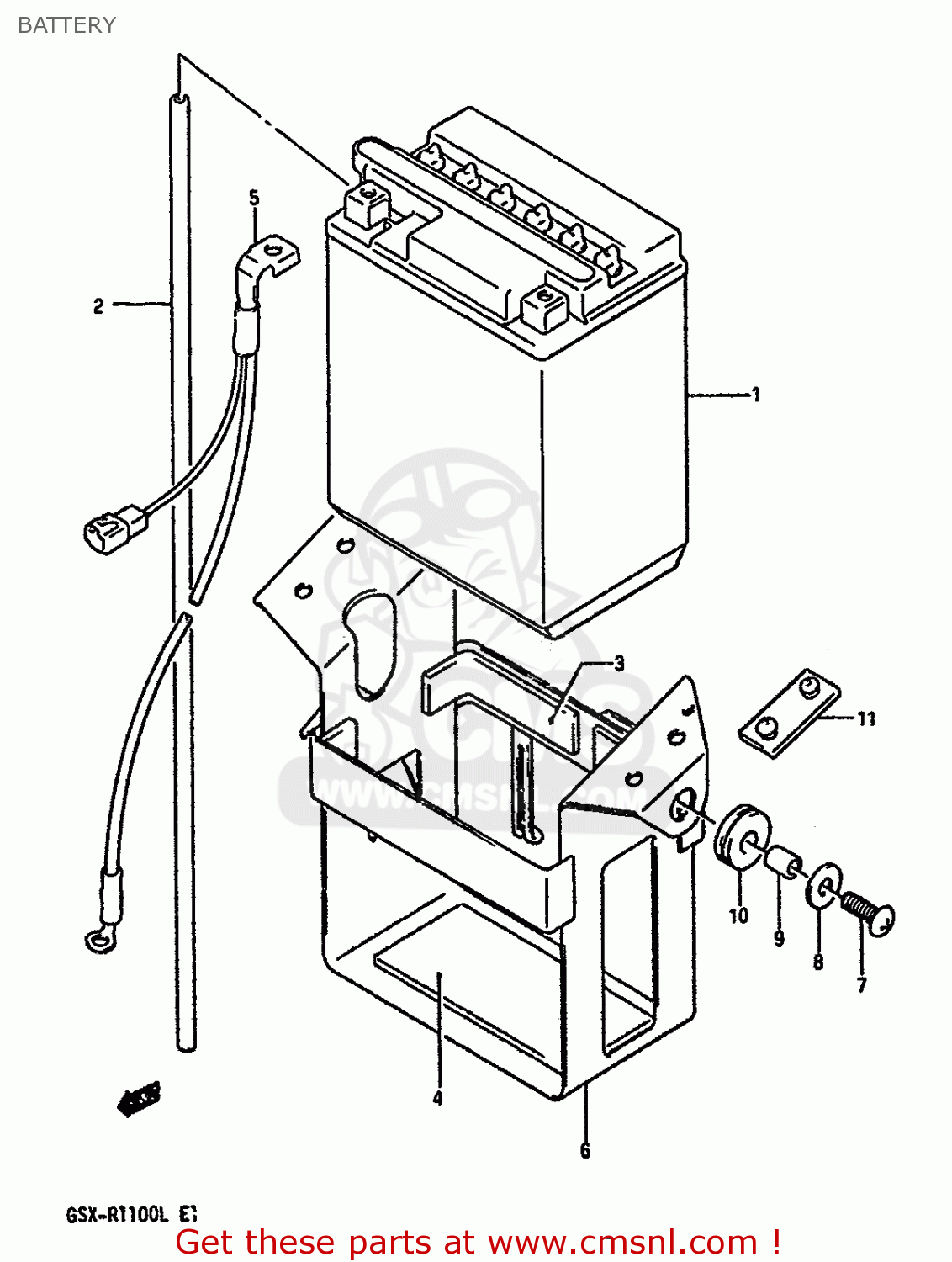

Battery diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

BATTERY GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

BATTERY GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

2

3368014A00
ref: 2
L:700-650

HOSE,BATTERY EXHAUST

€ 4.50

3

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

4

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

5-1

3386040C00
ref: 5-1
MODEL K

WIRE,BATTERY MINUS LEAD

€ 17.00

5-2

3386040C01
ref: 5-2
MODEL L

WIRE,BATTERY MINUS LEAD

€ 17.00

6

4154040C00
ref: 6

HOLDER,BATTERY

€ 38.50

7

0912506038
ref: 7

SCREW

€ 3.00

8

09160060A6
ref: 8

WASHER

€ 2.00

9

0918006152
ref: 9

SPACER

€ 3.00

10

0932009021
ref: 10

CUSHION

€ 4.00

11

0932905005
ref: 11

CUSHION

€ 4.00
