COWLING (MODEL K 9SR)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

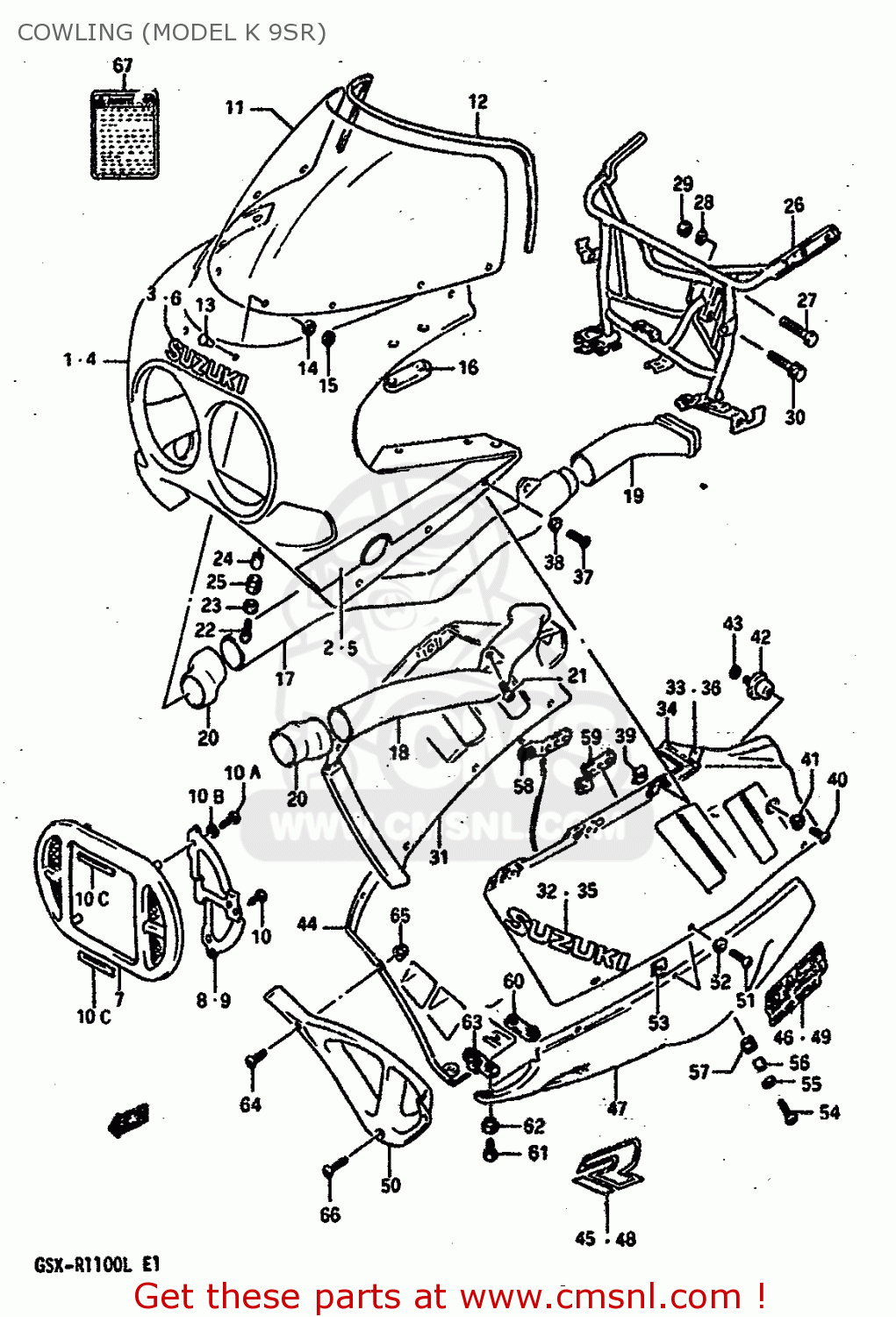

Cowling (model k 9sr) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL K 9SR) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL K 9SR) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL K 9SR) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440040C019SR
ref: 1-1
CLEAR COATING
BODY ASSY,COWLING
€ 981.50
1-2
9440040C029SR
ref: 1-2
NO CLEAR COATING
COWLING ASSEMBLY,BODY
€ 981.50
2
6827040C0039K
ref: 2
TAPE SET,COWLING,UPPER
€ 38.50
3
6818505C1022R
ref: 3
EMBLEM,COWLING,FRONT
€ 10.50
4-1
9440040C119SR
ref: 4-1
E18,CLEAR COATING
BODY ASSY,COWLING (BLUE/WHITE)
€ 678.50
4-2
9440040C129SR
ref: 4-2
E18,NO CLEAR COATING
BODY ASSY,COWLING (BLUE/WHITE)
€ 678.50
5
6827040C0039K
ref: 5
E18
TAPE SET,COWLING,UPPER
€ 38.50
6
6818505C1022R
ref: 6
E18
EMBLEM,COWLING,FRONT
€ 10.50
7-1
9446040C0022R
ref: 7-1
E18,CLEAR COATING
COVER,FRONT (WHITE)
€ 0.00
7-2
9446040C0122R
ref: 7-2
E18,NO CLEAR COATING
COVER,FRONT (WHITE)
€ 0.00
8
9469140C00
ref: 8
E18
PLATE,COVER RH
9469140C00
€ 13.00
9
9469240C00
ref: 9
E18
PLATE,COVER LH
9469240C00
€ 13.00
10
0354104106
ref: 10
E18
TAPPING SCREW 4X10/A
0354104106
€ 1.50
10A
0354104126
ref: 10A
E18
SCREW
0354104126
€ 1.50
10B
9446640C00
ref: 10B
E18
SPACER
€ 0.00
10C
94446540C00
ref: 10C
E18
CUSHION
€ 0.00
11-1
9461040C00
ref: 11-1
SCREEN SET,WINDOW
€ 455.50
11-2
9461040C10
ref: 11-2
E17
SCREEN SET,WIND
€ 0.00
12-1
9463140C00
ref: 12-1
MOLDING
9463140C00
€ 18.00
12-2
9463140C10
ref: 12-2
E17
MOLDING
€ 0.00
13
9461640C01
ref: 13
PIN,WINDSCREEN
9461640C01
€ 2.50
14
0932004007
ref: 14
CUSHION
0932004007
€ 3.00
15
0914804032
ref: 15
NUT
0914804032
€ 2.50
16
9457612C00
ref: 16
CUSHION,RR VIEW MIRRORR
9457612C00
€ 4.50
17
9445140C00
ref: 17
PIPE,AIR INTAKE FR,R
9445140C00
€ 33.00
18
9445240C00
ref: 18
PIPE,AIR INTAKE,FRONT
9445240C00
€ 34.00
19
9445317C00
ref: 19
PIPE,AIR INTAKE RR,R
9445317C00
€ 23.50
20
9445440C00
ref: 20
JOINT,AIR INTAKE
9445440C00
€ 16.00
21
0214206205
ref: 21
SCREW, CENTER
0214206205
€ 2.00
22
0913906056
ref: 22
SCREW(6X20)
0913906056
€ 3.00
23
0916006056
ref: 23
WASHER(6.5X18X1)
0916006056
€ 2.00
24
0918006152
ref: 24
SPACER
0918006152
€ 3.00
25
0932009016
ref: 25
CUSHION
0932009016
€ 2.50
26
9451040C02
ref: 26
BRACE,COWLING
€ 236.50
27
0110708355
ref: 27
BOLT
€ 3.50
28
0832121084
ref: 28
WASHER,LOCK,8.
0832121084
€ 2.50
29
0831012085
ref: 29
NUT ,8MM
0831012085
€ 1.50
30
0113708355
ref: 30
BOLT
€ 2.00
31-1
9443040C009SR
ref: 31-1
CLEAR COATING
COVER COMP,COWLING SIDE,RIGHT
€ 559.50
31-2
9443040C019SR
ref: 31-2
NO CLEAR COATING
COVER ASSEMBLY,COWLING
€ 559.50
32
681124340022R
ref: 32
EMBLEM
681124340022R
€ 9.50
33
6868540C0039K
ref: 33
TAPE,COWLING SIDE,RIGHT
€ 10.00
34-1
9444040C009SR
ref: 34-1
CLEAR COATING
COVER COMP,COWLING SIDE,LEFT
9444040C009SR
€ 280.00
34-2
9444040C019SR
ref: 34-2
NO CLEAR COATING
COVER COMP,COWLING SIDE,LEFT
€ 280.00
35
681124340022R
ref: 35
EMBLEM
681124340022R
€ 9.50
36
6869540C0039K
ref: 36
TAPE,COWLING SIDE,LEFT
€ 12.50
37
0913905032
ref: 37
SCREW(5X18)
0913905032
€ 2.50
38
0916105017
ref: 38
WASHER(5.2X14X1.5)
0916105017
€ 3.00
39
9448432B00
ref: 39
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
40
0913906027
ref: 40
SCREW(6X12)
0913906027
€ 3.00
41
0916106021
ref: 41
WASHER(6.3X16X1.5)
0916106021
€ 2.50
42
9457004A00
ref: 42
CUSHION,COWLING
9457004A00
€ 12.50
43
0832121064
ref: 43
WASHER,LOCK
0832121064
€ 2.00
44-1
9447040C002GZ
ref: 44-1
CLEAR COATING
COWLING,UNDER,
9447040C002GZ
€ 441.50
44-2
9447040C012GZ
ref: 44-2
NO CLEAR COATING
COWLING,UNDER RH (BLUE/WHITE)
€ 441.50
45
6819106B002GR
ref: 45
EMBLEM,COWLING UNDER
6819106B002GR
€ 19.00
46
6868127B102GZ
ref: 46
EMBLEM
6868127B102GZ
€ 10.50
47-1
9448040C002GZ
ref: 47-1
CLEAR COATING
COVER,COWL LH
9448040C002GZ
€ 374.00
47-2
9448040C012GZ
ref: 47-2
NO CLEAR COATING
COWLING,UNDER LH (BLUE/WHITE)
€ 374.00
48
6819106B002GR
ref: 48
EMBLEM,COWLING UNDER
6819106B002GR
€ 19.00
49
6868127B102GZ
ref: 49
EMBLEM
6868127B102GZ
€ 10.50
50-1
9449817C0022R
ref: 50-1
CLEAR COATING
COWLING,UNDER,CENTER
9449817C0022R
€ 80.50
50-2
9449817C01
ref: 50-2
NO CLEAR COATING
COWLING,UNDER,CENTER
€ 80.50
51
0913905032
ref: 51
SCREW(5X18)
0913905032
€ 2.50
52
0916105017
ref: 52
WASHER(5.2X14X1.5)
0916105017
€ 3.00
53
9448432B00
ref: 53
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
54
0913906028
ref: 54
SCREW(6X20)
0913906028
€ 3.50
55
0916006056
ref: 55
WASHER(6.5X18X1)
0916006056
€ 2.00
56
0918006152
ref: 56
SPACER
0918006152
€ 3.00
57
0932009016
ref: 57
CUSHION
0932009016
€ 2.50
58
9458017C01
ref: 58
BRACKET
€ 6.00
59
9459017C01
ref: 59
BRACE,COWLING UNDER,LH
€ 7.00
60
9449306B00
ref: 60
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
61
0913906039
ref: 61
SCREW(6X16)
0913906039
€ 2.50
62
0916106021
ref: 62
WASHER(6.3X16X1.5)
0916106021
€ 2.50
63
9449006B00
ref: 63
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
64
0913905025
ref: 64
SCREW(5X14)
0913905025
€ 2.00
65
0831626055
ref: 65
NUT
0831626055
€ 2.00
66
0913906030
ref: 66
SCREW(6X16)
0913906030
€ 3.50
67-1
6861248B10
ref: 67-1
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
67-2
6861248B00
ref: 67-2
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
67-3
6861340C11
ref: 67-3
LABEL (WARNING)
6861340C11
€ 8.50
67-4
6861340C00
ref: 67-4
E4,E21,E34,E53
LABEL (WARNING)
€ 7.50
