HEADLAMP

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

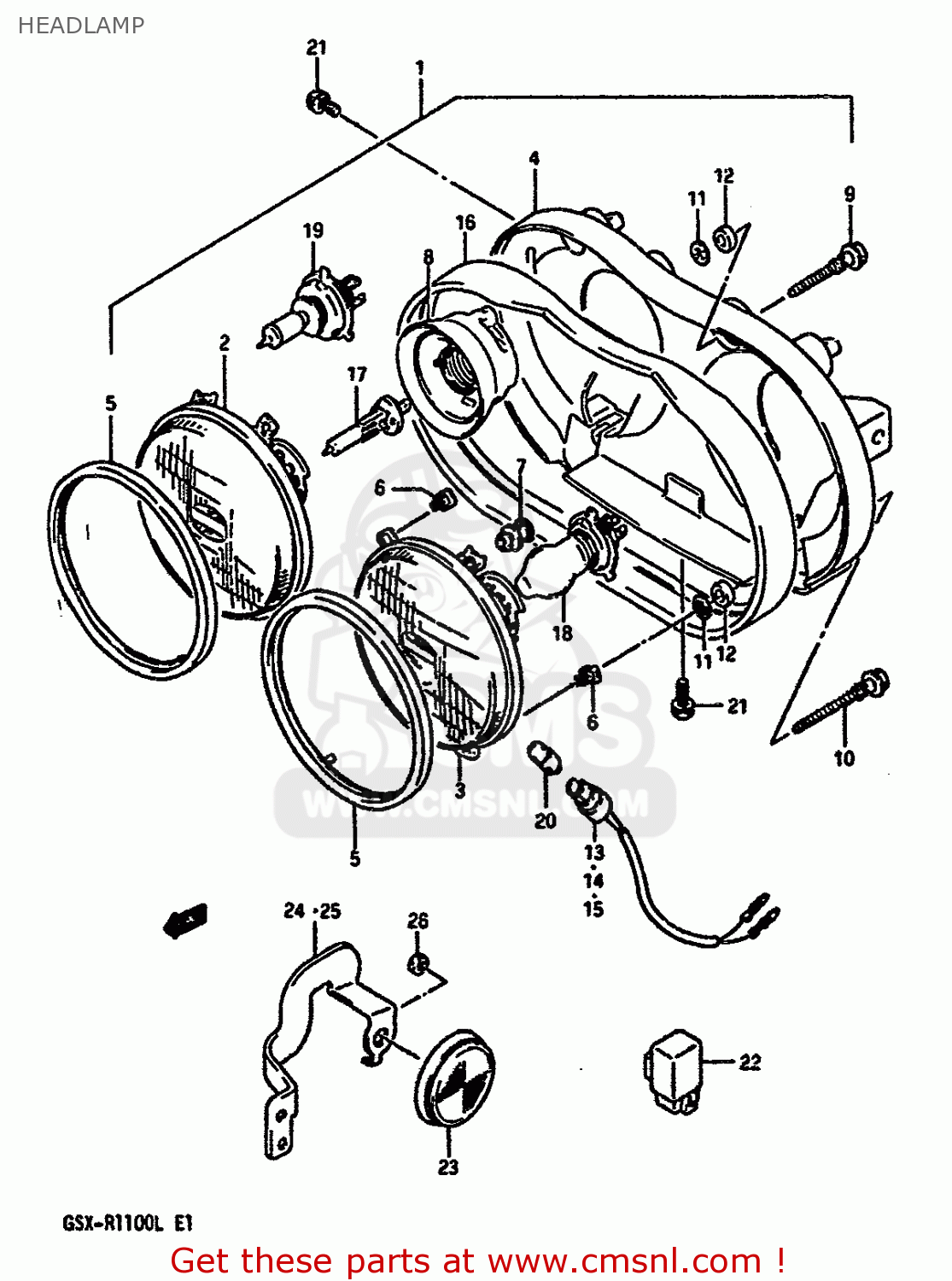

Headlamp diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

HEADLAMP GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
HEADLAMP GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
HEADLAMP GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3510040C40999
ref: 1-1
E4
HEADLAMP ASSY
€ 24.00
1-2
3510040C80999
ref: 1-2
E15
HEADLAMP ASSY
€ 24.00
1-3
3510040C70999
ref: 1-3
E25
HEADLAMP ASSY
€ 261.00
1-4
3510040C20999
ref: 1-4
E34
HEADLAMP ASSY
3510040C20999
€ 272.00
1-5
3510040C00999
ref: 1-5
E1,E2,E24
HEADLAMP ASSY
€ 323.00
1-6
3510040C50999
ref: 1-6
E17,E22,E39,E53
HEADLAMP ASSY
€ 282.00
1-7
3510040C60999
ref: 1-7
E16,E21,MODEL L E18
HEADLAMP ASSY
€ 357.00
2-1
3512117C40
ref: 2-1
E4
UNIT,HEADLAMP
€ 93.50
2-2
3512117C80
ref: 2-2
E15
UNIT,HEADLAMP RH
€ 93.50
2-3
3512117C70
ref: 2-3
E25
UNIT,HEADLAMP RH
€ 74.50
2-4
3512117C20
ref: 2-4
E34
UNIT,HEADLAMP RH
3512117C20
€ 93.50
2-5
3512117C00
ref: 2-5
E1,E2,E24
UNIT,HEADLAMP RH
€ 81.50
2-6
3512117C50
ref: 2-6
E17,E22,E39,E53
UNIT,HEADLAMP RH
€ 93.50
2-7
3512117C60
ref: 2-7
E16,E21,MODEL L E18
UNIT,HEADLAMP RH
€ 77.00
3-1
3532117C40
ref: 3-1
E4,E15,E16,E17,E21,E
UNIT,HEADLAMP LH
€ 77.00
3-2
3532117C20
ref: 3-2
E34
UNIT,HEADLAMP LH
3532117C20
€ 52.00
3-3
3532117C00
ref: 3-3
E1,E2,E24
LAMP UNIT
€ 80.50
4
3524005C02
ref: 4
HOUSING,HEAD LAMP
3524005C02
€ 67.50
5
3512704A00
ref: 5
RING,RETAINING
3512704A00
€ 15.00
6
3515205C00
ref: 6
NUT,HEADLAMP ADJUSTER
3515205C00
€ 2.50
7
3516204A00
ref: 7
SCREW,SPHERICAL
3516204A00
€ 2.00
8-1
3517320A01
ref: 8-1
E4,E17,E22,E25,E39,E
COVER,SOCKET
3517320A01
€ 14.50
8-2
3517306B50
ref: 8-2
E4,E17,E22,E25,E39,E
COVER, SOCKET,LH
3517306B50
€ 10.00
8-3
3517320A01
ref: 8-3
E1,E2,E15,E16,E21,E2
COVER,SOCKET
3517320A01
€ 14.50
8-4
3517348540
ref: 8-4
E34
COVER, SOCKET
3517348540
€ 16.00
9
3515105C00
ref: 9
SCREW,HEADLAMP ADJUST
3515105C00
€ 4.50
10
3515305C00
ref: 10
SCREW,ADJUSTER
3515305C00
€ 4.50
11
3515732B00
ref: 11
WASHER
3515732B00
€ 1.50
12
3516705C00
ref: 12
BUSHING
3516705C00
€ 1.50
13
3611804A00
ref: 13
E4,E15,E16,E17,E21,E
SOCKET
3611804A00
€ 11.50
14
3611833670
ref: 14
E34
SOCKET & CORD
3611833670
€ 11.50
15
3611805C00
ref: 15
E1,E2,E24
SOCKET & CORD
€ 9.50
16
3524240C00
ref: 16
GASKET,HEADLAMP HOUSING (NAS)
3524240C00
€ 47.50
17
0947112122
ref: 17
E4,E17,E22,E25,E39,E
BULB(12V55W/H1/P14.5S/OSRA,PHI
€ 4.00
18
0947112061
ref: 18
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
19-1
0947112060
ref: 19-1
E17,E22,E25,E39,E53
BULB(12V60/55W,H4)
0947112060
€ 8.00
19-2
0947112060
ref: 19-2
E1,E2,E24,E15,E16,E2
BULB(12V60/55W,H4)
0947112060
€ 8.00
19-3
0947112020
ref: 19-3
E34,EXECUTED LOCALLY
BULB(12V35/35W)
0947112020
€ 108.50
20-1
0947112063
ref: 20-1
BULB(12V4W)
0947112063
€ 6.00
20-2
0947112063
ref: 20-2
E16,E21,MODEL L E18
BULB(12V4W)
0947112063
€ 6.00
20-3
0947112051
ref: 20-3
E34,EXECUTED LOCALLY
BULB (12V,3W)
€ 0.00
21
0211236165
ref: 21
SCREW
€ 2.50
22-1
3864017C00
ref: 22-1
MODEL K E1,E2,E16,E2
RELAY ASSY,HEADLAMP
3864017C00
€ 37.50
22-2
3864017C00
ref: 22-2
MODEL K E4,E15,E17,E
RELAY ASSY,HEADLAMP
3864017C00
€ 37.50
23-1
3595014A00
ref: 23-1
MODEL K E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
23-2
3595043431
ref: 23-2
MODEL L E39
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
24-1
3595640C01
ref: 24-1
MODEL K E39
BRACKET,FR SIDE REFLECTOR,R
€ 7.50
24-2
3595617D00
ref: 24-2
MODEL L E39
BRACKET,FR SIDE RR,R
3595617D00
€ 6.50
25-1
3595740C01
ref: 25-1
MODEL K E39
BRACKET,FR SIDE REFLECTOR,L
3595740C01
€ 7.50
25-2
3595717D00
ref: 25-2
MODEL L E39
BRACKET,FR SIDE RR,L
3595717D00
€ 6.50
26
0836115055
ref: 26
E39
NUT
€ 2.50
