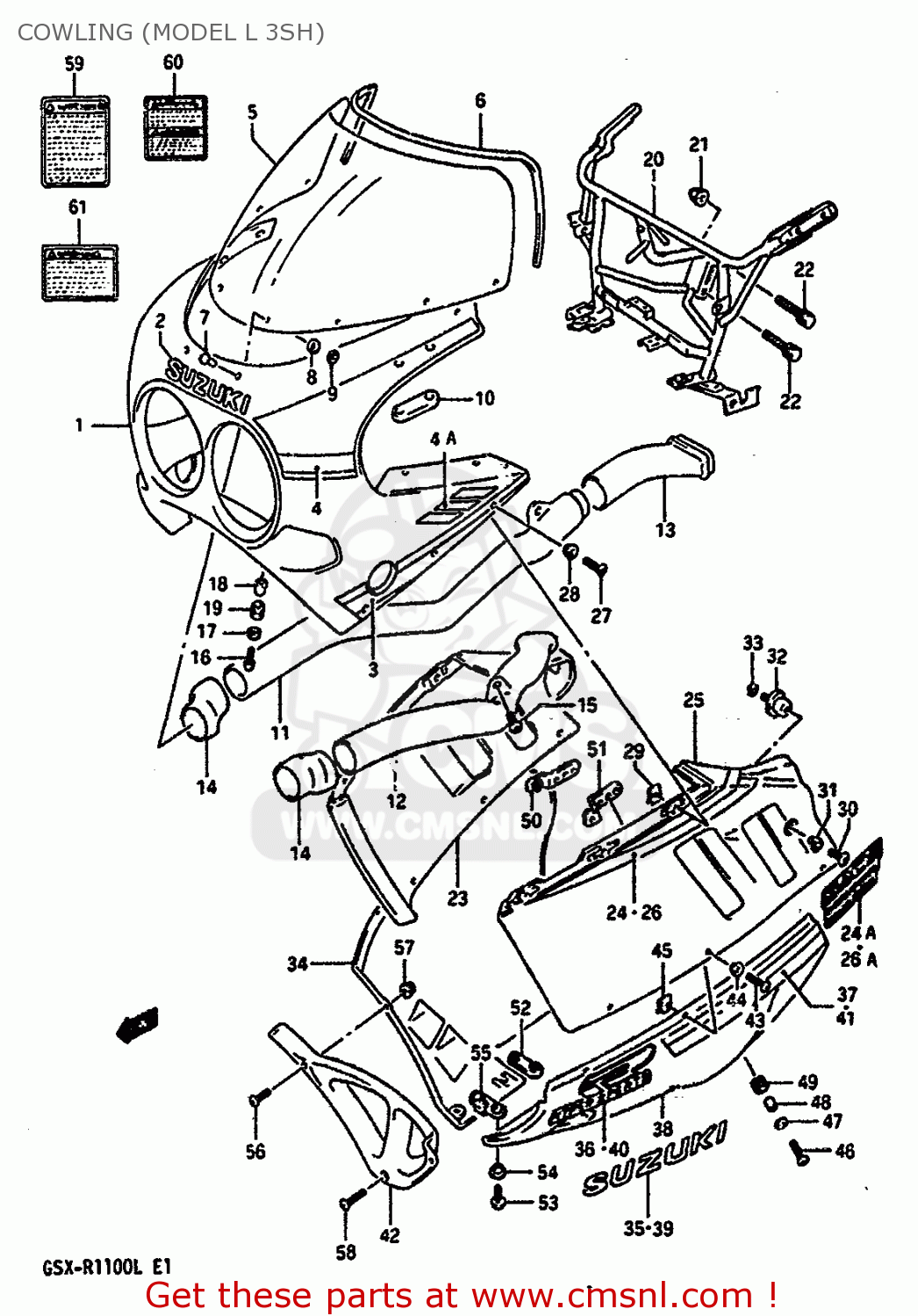

COWLING (MODEL L 3SH)

ref

part #

description

quantity

1

9440040C710JW
ref: 1

BODY ASSY,COWLING

€ 979.00

2

6818505C100NE
ref: 2

EMBLEM,COWLING UPR

€ 12.50

3

6827040C303TU
ref: 3

TAPE SET,COWLING,UPPER SIDE

€ 28.00

4

6828040C003TU
ref: 4

TAPE SET,COWLING,UPPER,FRONT

€ 79.00

4A

6827032C403BK
ref: 4A

TAPE SET,COWL

€ 38.00

5-1

9461040C21
ref: 5-1

SCREEN,WIND

€ 455.50

5-2

9461040C30
ref: 5-2
E17

SCREEN SET,WIND

€ 0.00

6-1

9463140C20
ref: 6-1

MOLDING

€ 12.50

6-2

9463140C30
ref: 6-2
E17

MOLDING

€ 0.00

7

9461640C01
ref: 7

PIN,WINDSCREEN

€ 2.50

8

0932004007
ref: 8

CUSHION

€ 3.00

9

0914804032
ref: 9

NUT

€ 2.50

10

9457612C00
ref: 10

CUSHION,RR VIEW MIRRORR

€ 4.50

11

9445140C00
ref: 11

PIPE,AIR INTAKE FR,R

€ 33.00

12

9445240C00
ref: 12

PIPE,AIR INTAKE,FRONT

€ 34.00

13

9445317C00
ref: 13

PIPE,AIR INTAKE RR,R

€ 23.50

14

9445440C00
ref: 14

JOINT,AIR INTAKE

€ 16.00

15

0214206205
ref: 15

SCREW, CENTER

€ 2.00

16

0913906056
ref: 16

SCREW(6X20)

€ 3.00

17

0916006056
ref: 17

WASHER(6.5X18X1)

€ 2.00

18

0918006152
ref: 18

SPACER

€ 3.00

19

0932009016
ref: 19

CUSHION

€ 2.50

20

9451040C12
ref: 20

BRACE,COWLING

€ 236.50

21

0831321085
ref: 21

NUT ,8MM

€ 2.50

22

0113708355
ref: 22

BOLT

€ 2.00

23

9443040C313SH
ref: 23

COVER,SIDE RH (BLUE/WHITE)

€ 474.00

24

6868540C203TS
ref: 24

TAPE,COWL SIDE,R

€ 15.50

24A

6868127B103SH
ref: 24A

EMBLEM,"SACS"

€ 13.50

25

9444040C313SH
ref: 25

COVER,COWLING,

€ 710.00

26

6869540C203TS
ref: 26

TAPE,COWL SIDE,L

€ 21.50

26A

6868127B103SH
ref: 26A

EMBLEM,"SACS"

€ 13.50

27

0913905032
ref: 27

SCREW(5X18)

€ 2.50

28

0916105017
ref: 28

WASHER(5.2X14X1.5)

€ 3.00

29

9448432B00
ref: 29

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

30

0913906027
ref: 30

SCREW(6X12)

€ 3.00

31

0916106021
ref: 31

WASHER(6.3X16X1.5)

€ 2.50

32

9457004A00
ref: 32

CUSHION,COWLING

€ 12.50

33

0832121064
ref: 33

WASHER,LOCK

€ 2.00

34

9447040C713SH
ref: 34

COWLING COMP,UNDER,RIGHT

€ 646.00

35

68111343010NE
ref: 35

EMBLEM

€ 15.50

36

6818140C103ZG
ref: 36

EMBLEM,COWLING,UNDER

€ 28.00

37

6818540C203TS
ref: 37

TAPE,COWLING,UNDER STRIPE

€ 27.00

38

9448040C713SH
ref: 38

COWLING,UNDER,LEFT

€ 617.00

39

6818117D000NE
ref: 39

EMBLEM,COWLING UNDER,L

€ 13.50

40

6818140C103ZG
ref: 40

EMBLEM,COWLING,UNDER

€ 28.00

41

6819540C203TS
ref: 41

TAPE,COWLING,UNDER STRIPE

€ 27.00

42

9449817D000JW
ref: 42

COWLING,UNDER,CENTER

€ 89.00

43

0913905032
ref: 43

SCREW(5X18)

€ 2.50

44

0916105017
ref: 44

WASHER(5.2X14X1.5)

€ 3.00

45

9448432B00
ref: 45

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

46

0913906028
ref: 46

SCREW(6X20)

€ 3.50

47

0916006056
ref: 47

WASHER(6.5X18X1)

€ 2.00

48

0918006152
ref: 48

SPACER

€ 3.00

49

0932009016
ref: 49

CUSHION

€ 2.50

50

9458017C01
ref: 50

BRACKET

€ 6.00

51

9459017C01
ref: 51

BRACE,COWLING UNDER,LH

€ 7.00

52

9449306B00
ref: 52

BRACE,COWLING LWR COVER RR

€ 4.00

53

0913906039
ref: 53

SCREW(6X16)

€ 2.50

54

0916106021
ref: 54

WASHER(6.3X16X1.5)

€ 2.50

55

9449006B00
ref: 55

BRACE,COWLING LWR COVER

€ 4.50

56

0913905025
ref: 56

SCREW(5X14)

€ 2.00

57

0831626055
ref: 57

NUT

€ 2.00

58

0913906030
ref: 58

SCREW(6X16)

€ 3.50

59-1

6861248B00
ref: 59-1

LABEL (WARNING SCREEN)

€ 6.50

59-2

6861248B10
ref: 59-2
E4

LABEL (WARNING SCREEN)

€ 6.50

60-1

6861340C11
ref: 60-1

LABEL (WARNING)

€ 8.50

60-2

6861340C00
ref: 60-2
E4,E21,E34,E53

LABEL (WARNING)

€ 7.50

61-1

6831940C00
ref: 61-1

LABEL

€ 8.00

61-2

6831940C20
ref: 61-2
E22,E39

LABEL, WARNING SAFETY

€ 8.00

61-3

6831940C30
ref: 61-3
E21

LABEL, WARNING SAFETY

€ 8.50

61-4

6831940C40
ref: 61-4
E34

LABEL, WARNING SAFETY

€ 8.00

61-5

6831940C50
ref: 61-5
E53

LABEL,WARNING

€ 8.00

all assemblies
