HANDLEBAR (MODEL L E24)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

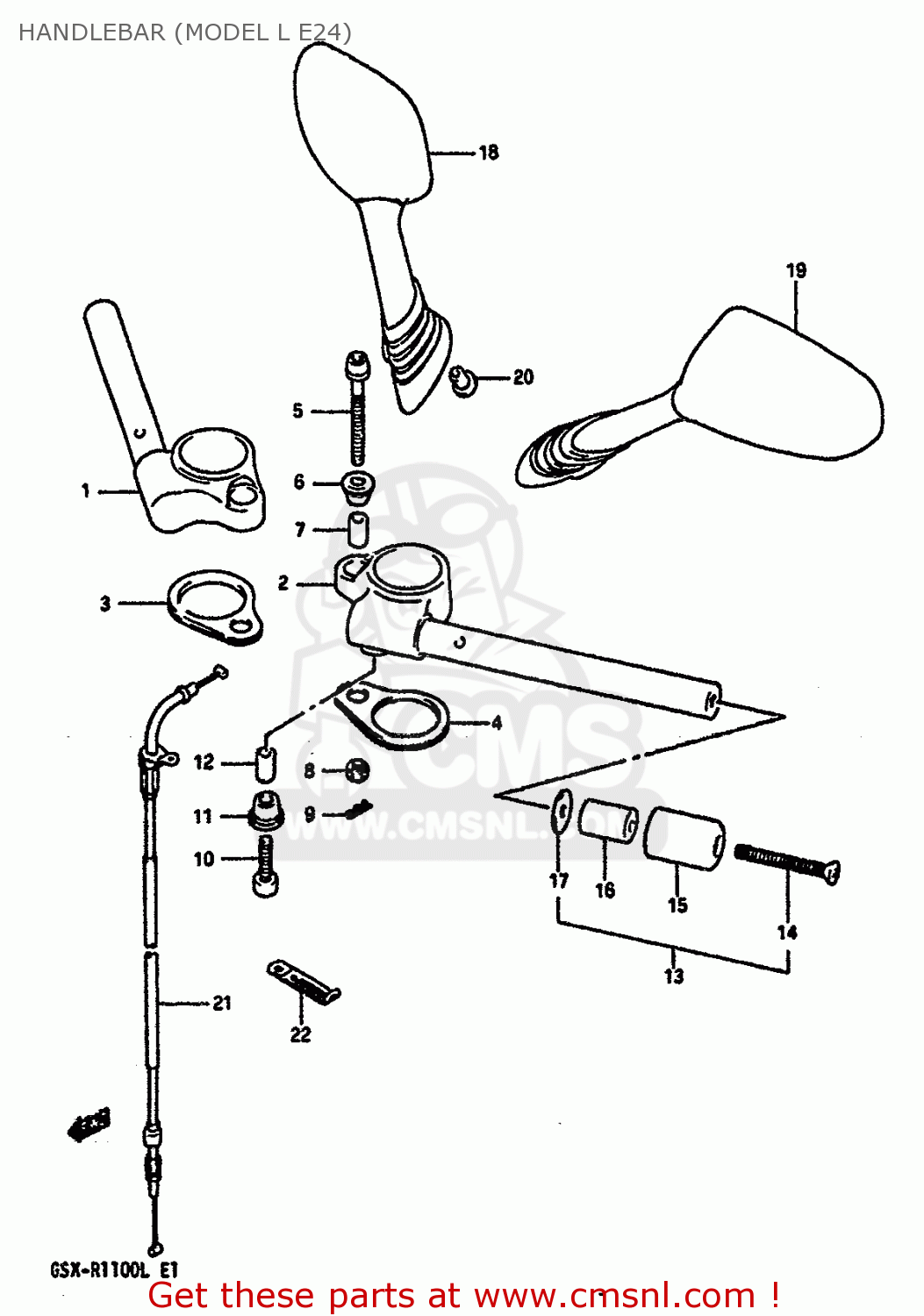

Handlebar (model l e24) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

HANDLEBAR (MODEL L E24) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
HANDLEBAR (MODEL L E24) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
HANDLEBAR (MODEL L E24) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
5611140C30
ref: 1
HANDLEBAR,RIGHT
€ 0.00
2
5615140C30
ref: 2
HANDLEBAR,LEFT
€ 0.00
3
5624040C01
ref: 3
CUSHION,HANDLEBAR,R
5624040C01
€ 32.50
4
5626040C01
ref: 4
CUSHION,HANDLEBAR,L
5626040C01
€ 34.00
5
5623140C10
ref: 5
BOLT,HANDLEBAR
5623140C10
€ 14.00
6
5619040C10
ref: 6
CUSHION,HANDLEBAR UPR
5619040C10
€ 18.00
7
5624340C10
ref: 7
SPACER,HANDLEBAR
€ 6.50
8
0831022088
ref: 8
NUT 8MM
0831022088
€ 2.00
9
0938508005
ref: 9
SNAP
0938508005
€ 2.00
10
0711008307
ref: 10
BOLT, LH
€ 4.50
11
5619040C10
ref: 11
CUSHION,HANDLEBAR UPR
5619040C10
€ 18.00
12
5624340C10
ref: 12
SPACER,HANDLEBAR
€ 6.50
13
5620040811
ref: 13
BALANCER SET,HANDLEBAR
5620040811
€ 69.50
14
0912706015
ref: 14
SCREW (L:65)(SUS)
0912706015
€ 3.00
15
5627440C10
ref: 15
CAP,BALANCER
5627440C10
€ 39.50
16
5627140C10
ref: 16
BALANCER,HANDLEBAR
5627140C10
€ 19.50
17
5627534400
ref: 17
SPACER,BALANCER
5627534400
€ 2.50
18-1
5650040C1133J
ref: 18-1
FOR 3EE,3CG
MIRROR ASSY,RR VIEW,R
5650040C1133J
€ 195.00
18-2
5650040C110NE
ref: 18-2
FOR 3SH
MIRROR ASSY,RR VIEW,R
5650040C110NE
€ 191.50
19-1
5660040C1133J
ref: 19-1
FOR 3EE,3CG
MIRROR ASSY,RR VIEW,L
5660040C1133J
€ 195.00
19-2
5660040C110NE
ref: 19-2
FOR 3SH
MIRROR ASSY,RR VIEW,L
€ 195.00
20
5661917C00
ref: 20
NUT,RR VIEW MIRROR
5661917C00
€ 8.00
21
5830017C01
ref: 21
CABLE ASSY,THROTTLE
5830017C01
€ 43.00
22
0940406413
ref: 22
CLAMP
0940406413
€ 2.50
