FRONT FENDER (MODEL L E24)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

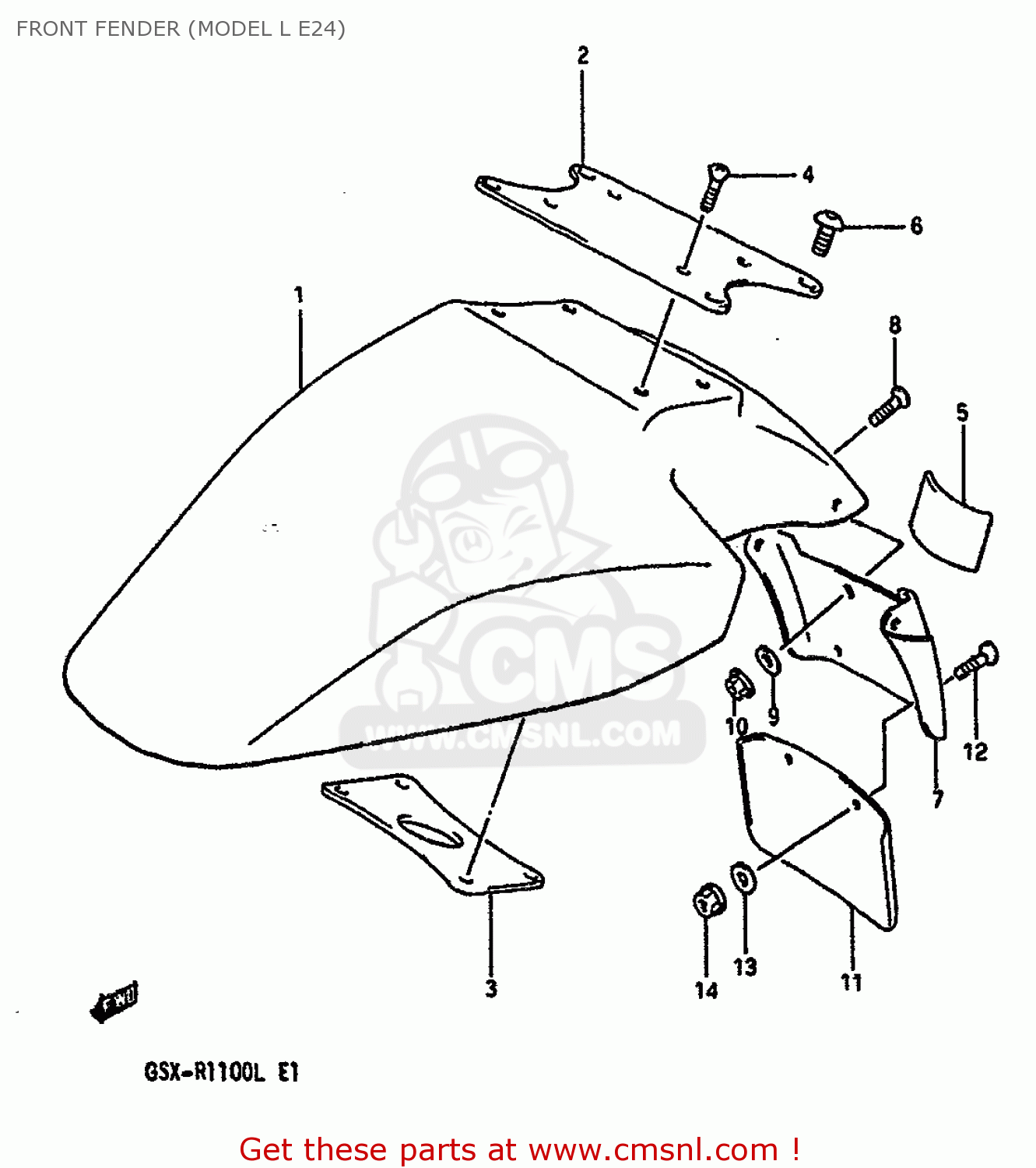

Front fender (model l e24) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

5311117C110NE
ref: 1-1
FOR 3SH

FENDER,FRONT (BLUE)

€ 124.50

1-2

5311117C1133J
ref: 1-2
FOR 3CG

FENDER,FR

€ 245.00

1-3

5311117C1128V
ref: 1-3
FOR 3EE

FENDER,FRONT (RED)

€ 124.50

5311417C02
ref: 2

BRACE,FR FENDER

€ 49.50

5321017C00
ref: 3

BRACE,FR FENDER INNER

€ 9.00

0913905032
ref: 4

SCREW(5X18)

€ 2.50

5314517C11
ref: 5

CUSHION,FR FENDER

€ 5.00

0913908007
ref: 6

SCREW(8X16)

€ 4.50

5333117C00
ref: 7

MUD GUARD,UPPER

€ 22.00

0214205124
ref: 8

SCREW, FRONT & REAR

€ 1.50

0916005030
ref: 9

WASHER

€ 2.00

0831321055
ref: 10

NUT 5MM

€ 1.50

5333217C00
ref: 11

MUD GUARD,FR.F

€ 12.50

0214205124
ref: 12

SCREW, FRONT & REAR

€ 1.50

0916005030
ref: 13

WASHER

€ 2.00

0831321055
ref: 14

NUT 5MM

€ 1.50

0916005030
ref: 9
E15,E18,E24

WASHER

€ 2.00

0831321055
ref: 10
E15,E18,E24

NUT 5MM

€ 1.50

5333217C00
ref: 11
E15,E18,E24

MUD GUARD,FR.F

€ 12.50

0214205124
ref: 12
E15,E18,E24

SCREW, FRONT & REAR

€ 1.50

0916005030
ref: 13
E15,E18,E24

WASHER

€ 2.00

0831321055
ref: 14
E15,E18,E24

NUT 5MM

€ 1.50
