HEADLAMP (MODEL K E18)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

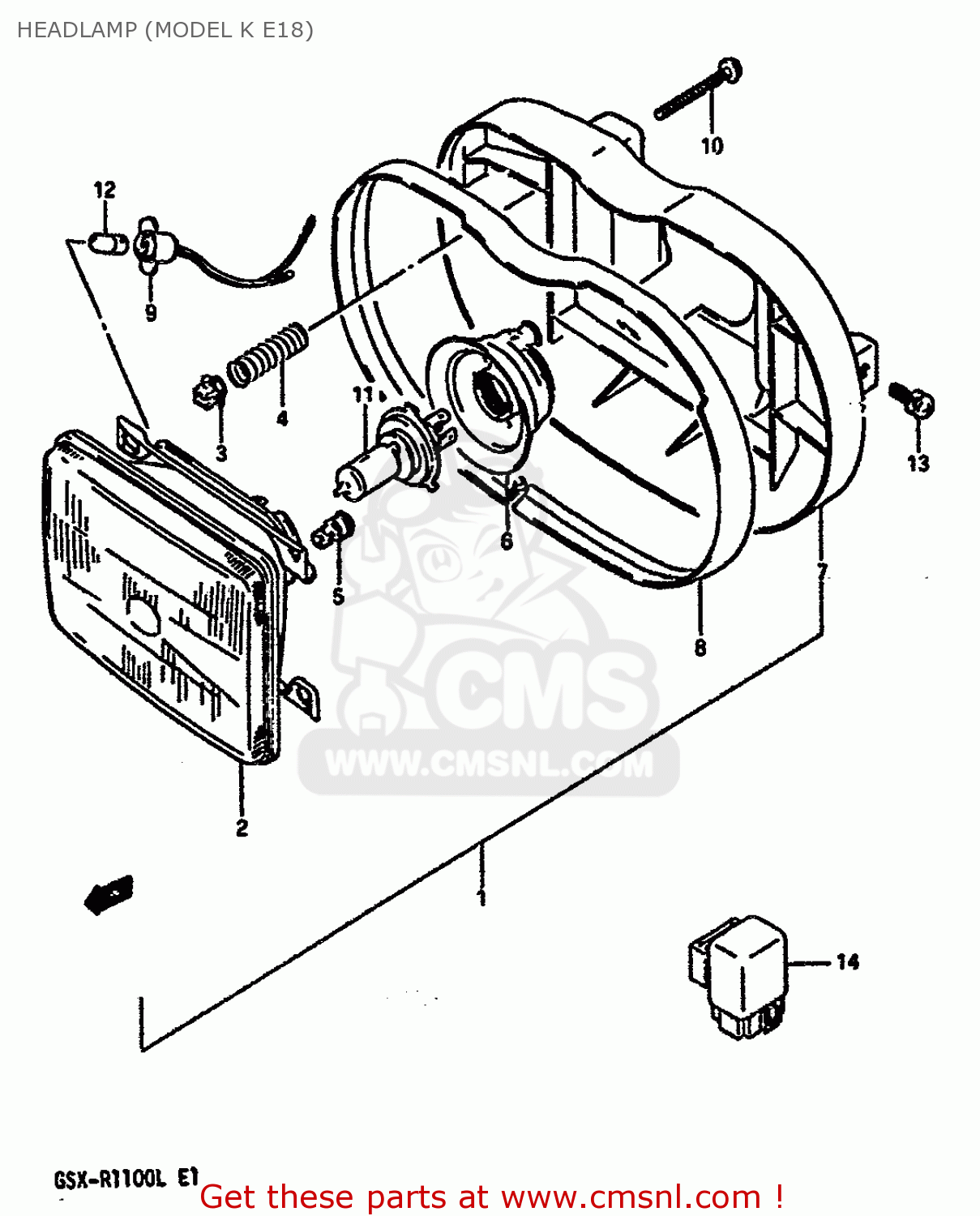

Headlamp (model k e18) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

HEADLAMP (MODEL K E18) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

HEADLAMP (MODEL K E18) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

3510040C10999
ref: 1

HEADLAMP ASSY

€ 0.00

2

3512140C10
ref: 2

LAMP UNIT

€ 0.00

3

3515227A00
ref: 3

NUT

€ 3.00

4

3515420A01
ref: 4

SPRING

€ 5.50

5

3516204A00
ref: 5

SCREW,SPHERICAL

€ 2.00

6

3517345000
ref: 6

COVER,HEADLAMP SOCKET

€ 14.50

7

3524017C11
ref: 7

HOUSING,HEADLAMP

€ 44.00

8

3524217C41
ref: 8

GASKET,HEADLAMP (NAS)

€ 25.50

9

3611827A00
ref: 9

SOCKET

€ 11.50

10

3515140C10
ref: 10

SCREW,ADJUSTING

€ 4.50

11

0947112060
ref: 11

BULB(12V60/55W,H4)

€ 8.00

12

0947112063
ref: 12

BULB(12V4W)

€ 6.00

13

0211236165
ref: 13

SCREW

€ 2.50

14

3864017C00
ref: 14

RELAY ASSY,HEADLAMP

€ 37.50

all assemblies
