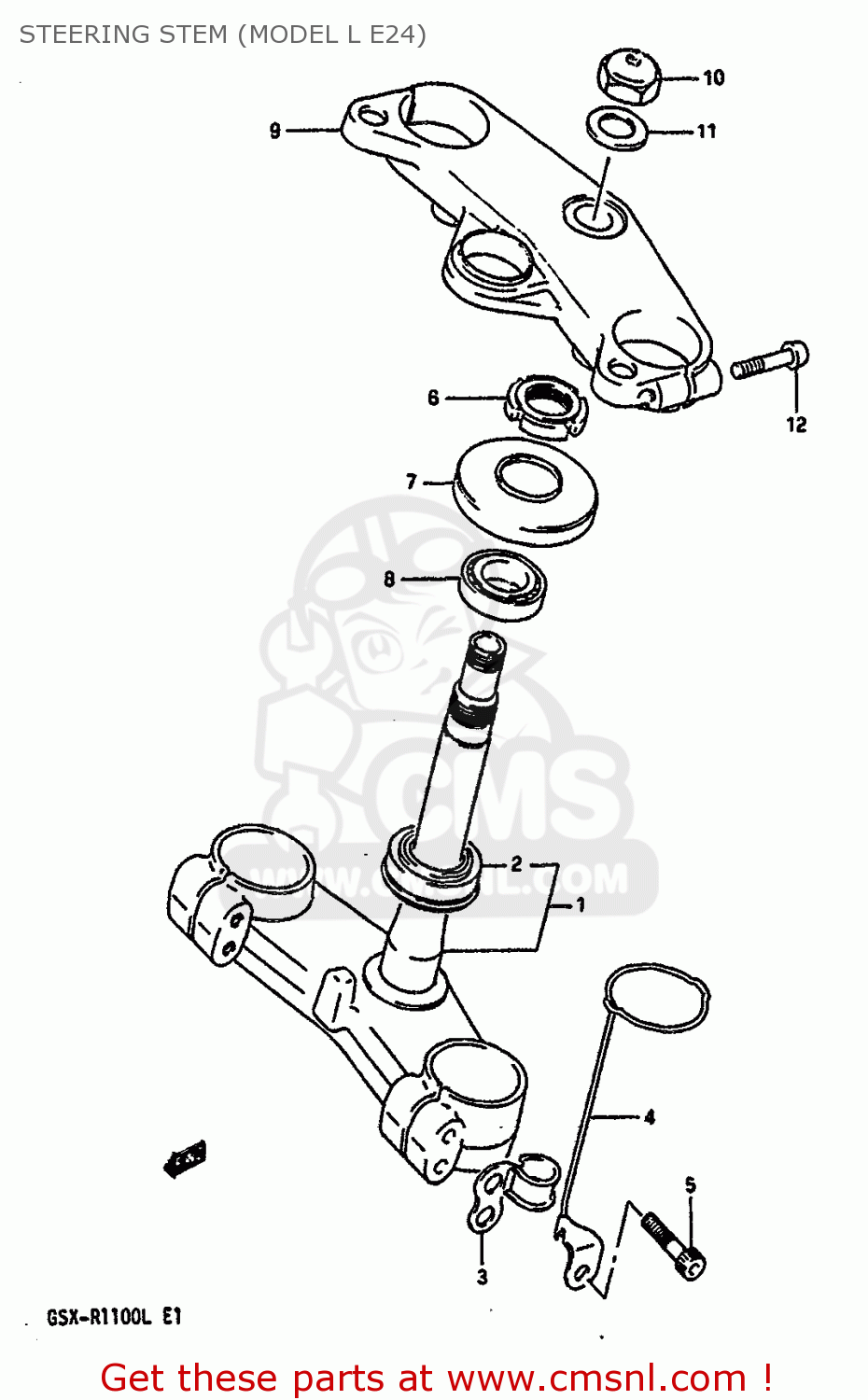

STEERING STEM (MODEL L E24)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

Steering stem (model l e24) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

STEERING STEM (MODEL L E24) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

STEERING STEM (MODEL L E24) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5141040C00
ref: 1

STEM,STEERING

€ 422.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

3493840C50
ref: 3

GUIDE,METER CABLE NO.2

€ 8.00

4

5174040C00
ref: 4

HOLDER,STEERING DAMPER

€ 11.50

5

0711010455
ref: 5

BOLT

€ 4.00

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7

0928534007
ref: 7

SEAL OIL

€ 18.50

8

0926525008
ref: 8

TAPER,ROLLER BEARING

€ 48.50

9

5131140C30
ref: 9

STEM HEAD,STEERING

€ 0.00

10

5135328A10
ref: 10

NUT

€ 30.00

11

5135624B01
ref: 11

WASHER(22.5X32X1.6)

€ 3.00

12

5145127A40
ref: 12

BOLT,FORK INNER TUBE F

€ 17.50
