OIL PAN

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

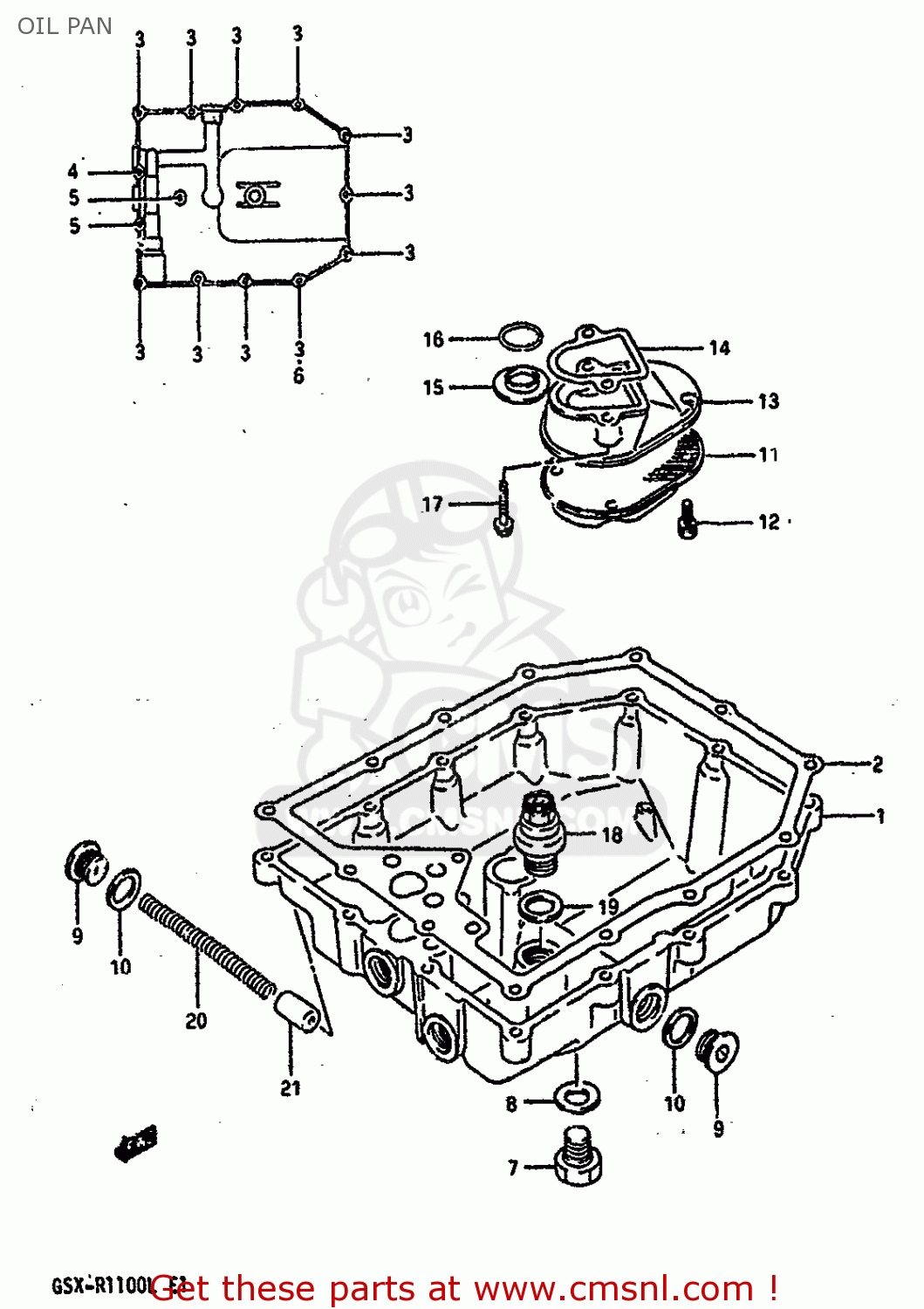

Oil pan diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

OIL PAN GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
OIL PAN GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
OIL PAN GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1151117C01
ref: 1-1
~E.NO.102576
PAN,OIL
€ 148.00
1-2
1151117C02
ref: 1-2
E.NO.102577~
PAN,OIL
1151117C02
€ 148.00
2-1
1148927A00
ref: 2-1
GASKET,OIL PAN (NAS)
1148927A00
€ 23.00
2-2
1148927A00H17
ref: 2-2
E17
GASKET,OIL PAN (NA)
€ 23.00
3-1
0711006255
ref: 3-1
~E.NO.102576
BOLT
0711006255
€ 3.00
3-2
0711006257
ref: 3-2
E.NO.102577~
BOLT
€ 2.50
4-1
0910606034
ref: 4-1
~E.NO.102576
BOLT
0910606034
€ 2.50
4-2
0910606067
ref: 4-2
E.NO.102577~
BOLT
0910606067
€ 2.50
5-1
0711006455
ref: 5-1
~E.NO.102576
BOLT
€ 2.50
5-2
0711006458
ref: 5-2
E.NO.102577~
BOLT
€ 2.50
6
0916806024
ref: 6
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
7
0924714001
ref: 7
PLUG
0924714001
€ 5.00
8
0916814004
ref: 8
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
9
0924816010
ref: 9
PLUG
0924816010
€ 4.50
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
11
1652017C00
ref: 11
STRAINER,ENGINE OIL
1652017C00
€ 13.00
12
0113706128
ref: 12
BOLT
€ 2.50
13
1652517C00
ref: 13
PROTECTOR,OIL STRAINER
€ 21.00
14-1
1652827A02
ref: 14-1
GASKET,OIL STRAINER PROTECTOR (NAS)
1652827A02
€ 9.00
14-2
1652827A02H17
ref: 14-2
E17
GASKET,PROTECTOR (NA)
€ 9.00
15
1652927A01
ref: 15
GASKET,OIL OUTLET (NAS)
1652927A01
€ 2.00
16
0928018009
ref: 16
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
17
0151706258
ref: 17
BOLT
0151706258
€ 2.50
18
1644017C00
ref: 18
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
20
0944009027
ref: 20
SPRING
0944009027
€ 4.50
21
1644234301
ref: 21
PLUNGER,OIL CONTROLL
1644234301
€ 16.00
