FRONT DAMPER (MODEL L E24)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

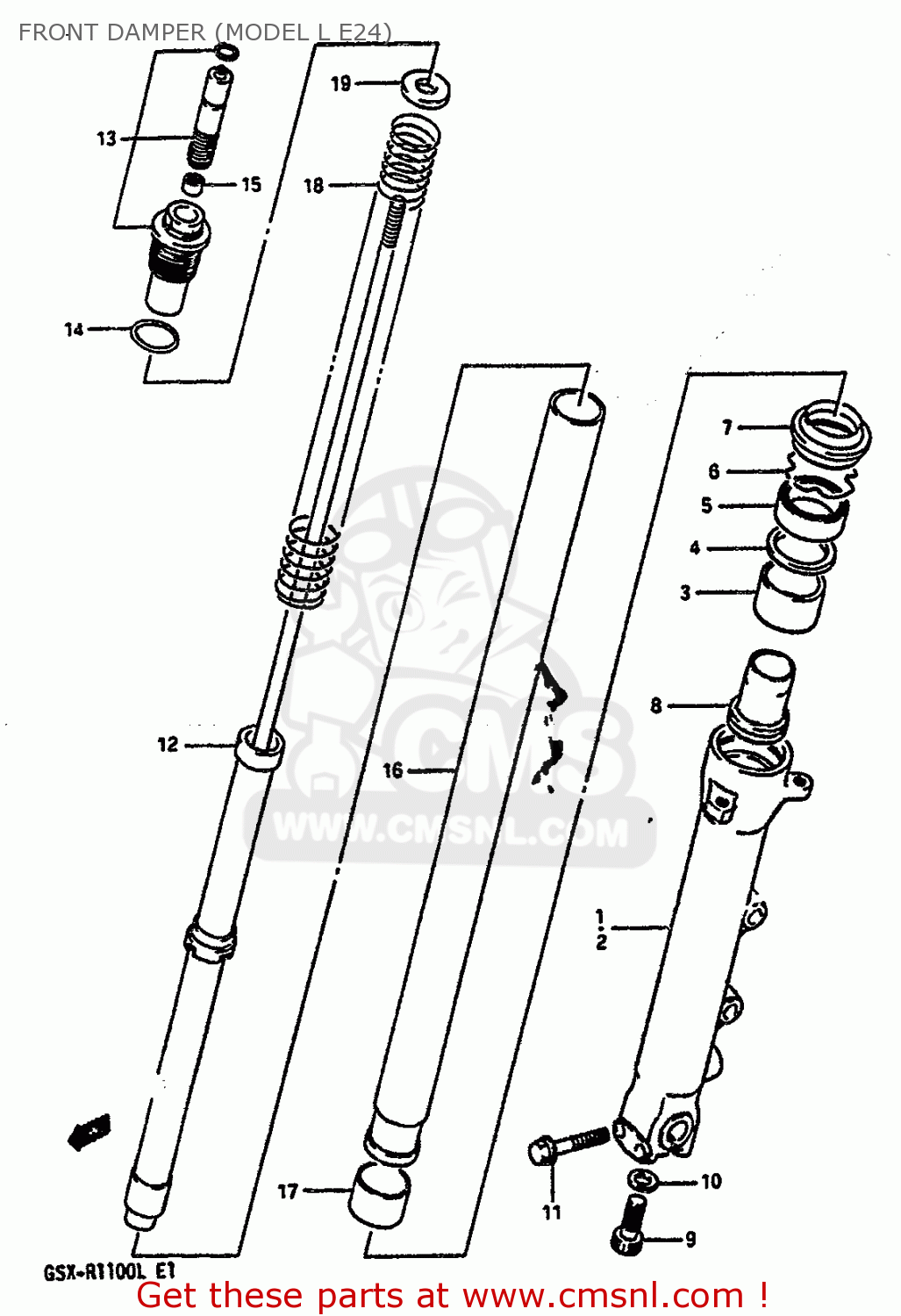

Front damper (model l e24) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

5110340C30
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 0.00

5110440C30
ref: 0

DAMPER ASSEMBLY,LEFT

€ 0.00

5113040C00
ref: 1

TUBE,OUTER,R

€ 358.50

5114040C00
ref: 2

TUBE,OUTER,L

€ 459.00

5116740C00
ref: 3

METAL,SLIDE

€ 13.50

5115814200
ref: 4

WASHER

€ 4.00

5115340C00
ref: 5

OIL SEAL,FRONT FORK

€ 15.50

5115614200
ref: 6

RING,STOPPER

€ 4.50

5117340C00
ref: 7

SEAL,DUST

€ 18.50

5119540C00
ref: 8

PIECE,OIL LOCK

€ 90.50

5114740C00
ref: 9

BOLT,OIL LOCK PIECE,12X22

€ 24.50

5114840300
ref: 10

GASKET,CYLINDER (NAS)

€ 2.50

5176640C00
ref: 11

BOLT,RH

€ 3.00

5114640C30
ref: 12

CYLINDER,FRONT FORK

€ 539.00

5135140C00
ref: 13

CAP ASSY,FORK

€ 119.00

5111714200
ref: 14

O RING

€ 2.00

5135213A60
ref: 15

NUT,ROD

€ 1.50

5111040C30
ref: 16

TUBE,INNER

€ 327.00

5112140C00
ref: 17

PISTON

€ 11.50

5117140C30
ref: 18

SPRING,FORK

€ 0.00

5119240C00
ref: 19

WASHER,SPRING GUIDE

€ 5.50

19-2

5158017D10
ref: 19-2

PLATE,FRONT FENDER,RIGHT

€ 11.50

0151708128
ref: 20

BOLT 8X12

€ 3.50

FRONT DAMPER (MODEL L E24)

all assemblies
