STARTING MOTOR

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

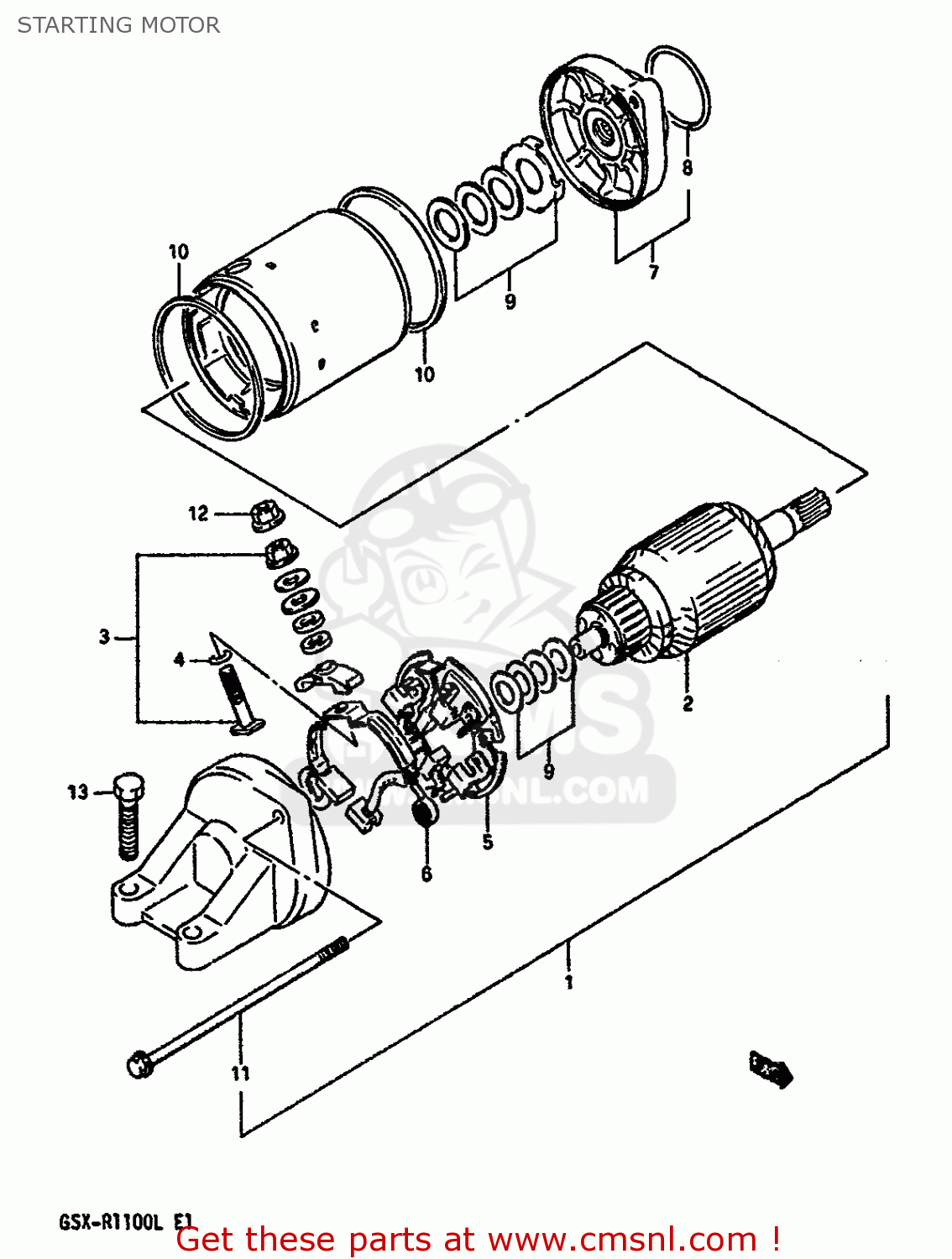

Starting motor diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

STARTING MOTOR GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

STARTING MOTOR GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

3110040C00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 943.50

2

3131040C00
ref: 2

ARMATURE

€ 261.50

3

3113038B00
ref: 3

TERMINAL SET,BRUSH

€ 45.00

4

3114349040
ref: 4

O RING

€ 3.00

5

3113238B00
ref: 5

HOLDER SET,BRUSH

€ 45.00

6

3113538B00
ref: 6

SPRING,BRUSH

€ 3.50

7

3115040C00
ref: 7

BRACKET

€ 129.00

8

3115640C00
ref: 8

O-RING

€ 8.50

9

3117019B10
ref: 9

SHIM SET,STARTING MOTOR

€ 8.00

10

3126431300
ref: 10

O RING

€ 7.50

11

3128040C00
ref: 11

BOLT

€ 12.50

12

0836135066
ref: 12

NUT

€ 2.00

13

0912806024
ref: 13

SCREW (6X25)

€ 2.50
