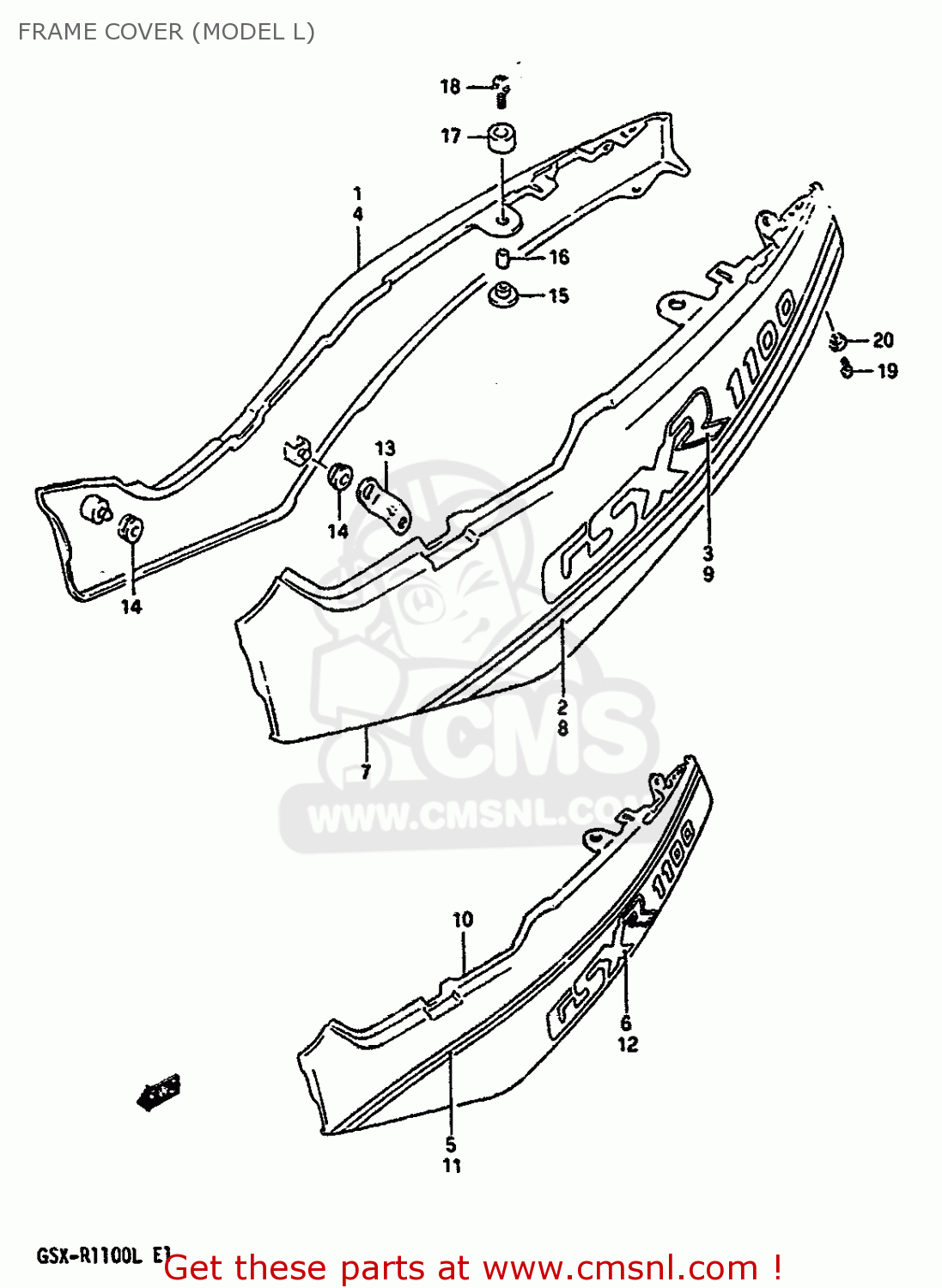

FRAME COVER (MODEL L)

ref

part #

description

quantity

1-1

4711040C613SH
ref: 1-1

COVER,FRAME,RIGHT

€ 422.50

1-2

4711040C613EE
ref: 1-2

COVER,FRAME RH

€ 383.50

2-1

6813540C303TS
ref: 2-1
FOR 3SH

TAPE,FRAME COVER STRIPE

€ 30.00

2-2

6813540C303TT
ref: 2-2
FOR 3EE

TAPE,FRAME COVER RH

€ 29.00

3-1

6813140C403YZ
ref: 3-1
FOR 3SH

EMBLEM,FRAME COVER

€ 23.00

3-2

6813140C403RZ
ref: 3-2
FOR 3EE

EMBLEM,FRAME COVER

€ 19.00

4

4711040C713CH
ref: 4
FOR 3CG

COVER,FRAME,RIGHT

€ 256.00

5

6813517D003CH
ref: 5
FOR 3CH

TAPE,FRAME COVER STRIPE

€ 27.50

6

6813140C402RM
ref: 6
FOR 3CH

EMBLEM,FRAME COVER

€ 19.50

7-1

4721040C613SH
ref: 7-1

COVER,FRAME,LEFT

€ 364.00

7-2

4721040C613EE
ref: 7-2

COVER,FRAME LH

€ 333.00

8-1

6814540C303TS
ref: 8-1
FOR 3SH

TAPE,FRAME COVER STRIPE

€ 30.00

8-2

6814540C303TT
ref: 8-2
FOR 3EE

TAPE,LH

€ 30.00

9-1

6813140C403YZ
ref: 9-1
FOR 3SH

EMBLEM,FRAME COVER

€ 23.00

9-2

6813140C403RZ
ref: 9-2
FOR 3EE

EMBLEM,FRAME COVER

€ 19.00

10

4721040C713CH
ref: 10
FOR 3CG

COVER,FRAME,LEFT

€ 331.00

11

6814517D003CH
ref: 11
FOR 3CH

TAPE,FRAME COVER STRIPE

€ 27.50

12

6813140C402RM
ref: 12
FOR 3CH

EMBLEM,FRAME COVER

€ 19.50

13

4381517C11
ref: 13

BRACKET,FRAME COVER

€ 6.00

14

0932008013
ref: 14

CUSHION

€ 4.00

15

4532617C00
ref: 15

CUSHION,FRAME COVER LWR

€ 7.00

16

0918006143
ref: 16

SPACER

€ 2.50

17

4514904A00
ref: 17

CUSHION,TAIL COVER UPR

€ 2.00

18

0913606083
ref: 18

SCREW(6X30)

€ 3.00

19

0214205124
ref: 19

SCREW, FRONT & REAR

€ 1.50

20

0916105017
ref: 20

WASHER(5.2X14X1.5)

€ 3.00

21

4514904A00
ref: 21

CUSHION,TAIL COVER UPR

€ 2.00

22

0214206305
ref: 22

SCREW

€ 2.00

23

0916006069
ref: 23

WASHER

€ 2.00

24

0214205124
ref: 24

SCREW, FRONT & REAR

€ 1.50

25

0916105017
ref: 25

WASHER(5.2X14X1.5)

€ 3.00
