TAIL LAMP-LICENSE LAMP (E1)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

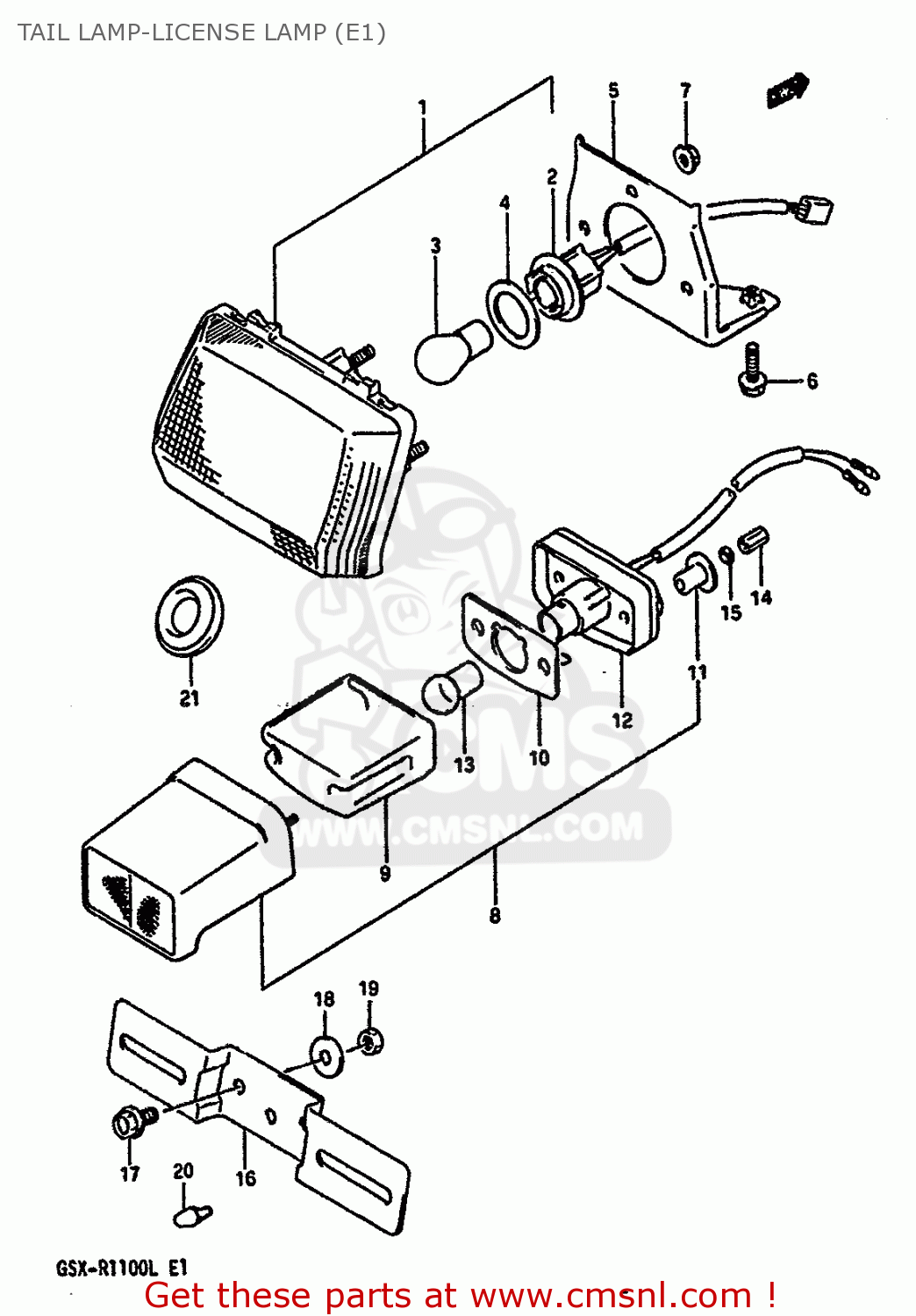

Tail lamp-license lamp (e1) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3571017C00
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 127.50

3571817C00
ref: 2

SOCKET

€ 0.00

0947112128
ref: 3

BULB(12V21/5W,BF141-49642A)

€ 6.00

3576448B20
ref: 4

CUSHION,RUBBER

€ 2.50

3573017C00
ref: 5

BRACKET COMP,REAR COMBINATION LAMP

€ 12.50

0151706128
ref: 6

BOLT

€ 2.50

0831626066
ref: 7

NUT

€ 2.00

3591017C00
ref: 8

LAMP ASSEMBLY,LICENSE

€ 127.50

3591238A30
ref: 9

LENS

€ 11.50

3591338A30
ref: 10

GASKET,LICENSE LAMP (NAS)

€ 2.00

3576617C00
ref: 11

SPACER

€ 3.00

3591517C00
ref: 12

HOUSING,LICENSE

€ 50.00

0947112058
ref: 13

BULB

€ 4.00

0914004006
ref: 14

NUT

€ 4.00

0832121046
ref: 15

LOCK WASHER

€ 2.00

3592700A10
ref: 16

BRACKET,LICENSE PLATE

€ 6.00

0151706164
ref: 17

BOLT

€ 2.50

0916006020
ref: 18

WASHER

€ 2.00

0831626066
ref: 19

NUT

€ 2.00

0932106023
ref: 20

CUSHION

€ 2.00

0925030010
ref: 21

CAP OD:40

€ 3.50
