SEAT (MODEL L)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

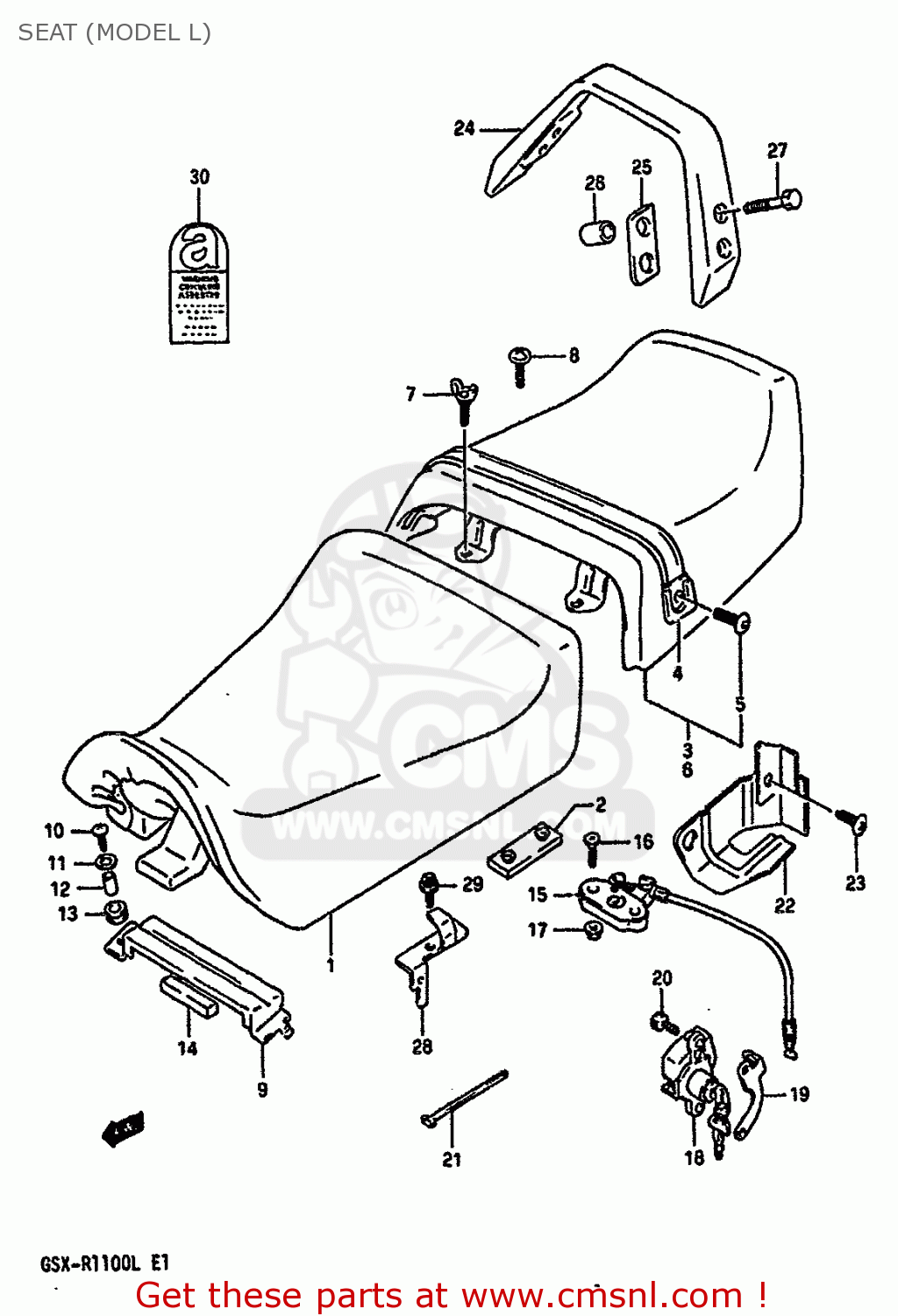

Seat (model l) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

SEAT (MODEL L) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL L) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL L) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510040C005NN
ref: 1-1
FOR 3SH
SEAT ASSEMBLY
€ 268.50
1-2
4510040C0058R
ref: 1-2
FOR 3EE,3CG
SEAT ASSEMBLY
4510040C0058R
€ 268.50
2
0932108009
ref: 2
CUSHION
0932108009
€ 4.00
3-1
4530017C015NN
ref: 3-1
FOR 3SH
SEAT ASSEMBLY,PILLION (BLUE)
€ 307.50
3-2
4530017C0158R
ref: 3-2
FOR 3EE,3CG
SEAT ASSEMBLY,PILLION (BLACK)
4530017C0158R
€ 307.50
4-1
4518017C005NN
ref: 4-1
BAND,SEAT
€ 24.00
4-2
4518017C0058R
ref: 4-2
BAND,SEAT
€ 24.00
5
4518606B00
ref: 5
BOLT
4518606B00
€ 5.00
6-1
4530040C005NN
ref: 6-1
E2,E4,E15,E16,E17,E1
SEAT ASSEMBLY,PILLION
€ 291.00
6-2
4530040C0058R
ref: 6-2
E2,E4,E15,E16,E17,E1
SEAT ASSEMBLY,PILLION
4530040C0058R
€ 291.00
7
0911906072
ref: 7
BOLT
0911906072
€ 3.00
8
0913906050
ref: 8
E16
SCREW(6X20)
0913906050
€ 5.00
9
4527140C00
ref: 9
PLATE,SEAT SUPPORT,REAR
€ 150.00
10
0214206205
ref: 10
SCREW, CENTER
0214206205
€ 2.00
11
0916006069
ref: 11
WASHER
0916006069
€ 2.00
12
0918006044
ref: 12
SPACER (6.1X8X9.5)
0918006044
€ 2.50
13
0932008048
ref: 13
CUSHION
0932008048
€ 3.00
14
4527217C01
ref: 14
CUSHION,PLATE SEAT SPRING
€ 3.50
15
4522017C00
ref: 15
BRACKET,SEAT SUPPORT RR
4522017C00
€ 65.50
16
0212206255
ref: 16
SCREW
€ 2.00
17
0831931067
ref: 17
NUT
0831931067
€ 2.50
18
4570019840
ref: 18
LOCK SET,SEAT
4570019840
€ 59.50
19
4512317C00
ref: 19
PLATE,SEAT LOCK
4512317C00
€ 4.50
20
0910606055
ref: 20
BOLT
0910606055
€ 2.50
21
0940709402
ref: 21
CLAMP
0940709402
€ 3.00
22
4528840C10
ref: 22
PLATE,SEAT LOCK CABLE
€ 0.00
23
0110706165
ref: 23
BOLT 6X16
0110706165
€ 2.00
24
4621117C00
ref: 24
HANDLE,PILLION RIDER
4621117C00
€ 104.50
25
4623817C10
ref: 25
CUSHION,PILLION RIDER HANDLE
4623817C10
€ 3.50
26
0918008078
ref: 26
SPACER(8.6X16X24)
0918008078
€ 6.50
27
0711008505
ref: 27
BOLT
0711008505
€ 3.50
28
9572140C00
ref: 28
HOLDER,HELMET,RIGHT
€ 8.50
29
0712006125
ref: 29
BOLT
€ 3.50
30
1196782000
ref: 30
E2
LABEL,ASBESTOS WARNING
€ 2.00
26
0711008505
ref: 26
BOLT
0711008505
€ 3.50
27
9572140C00
ref: 27
HOLDER,HELMET,RIGHT
€ 8.50
28
0712006125
ref: 28
BOLT
€ 3.50
29
1196782000
ref: 29
E2
LABEL,ASBESTOS WARNING
€ 2.00
