CYLINDER HEAD

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

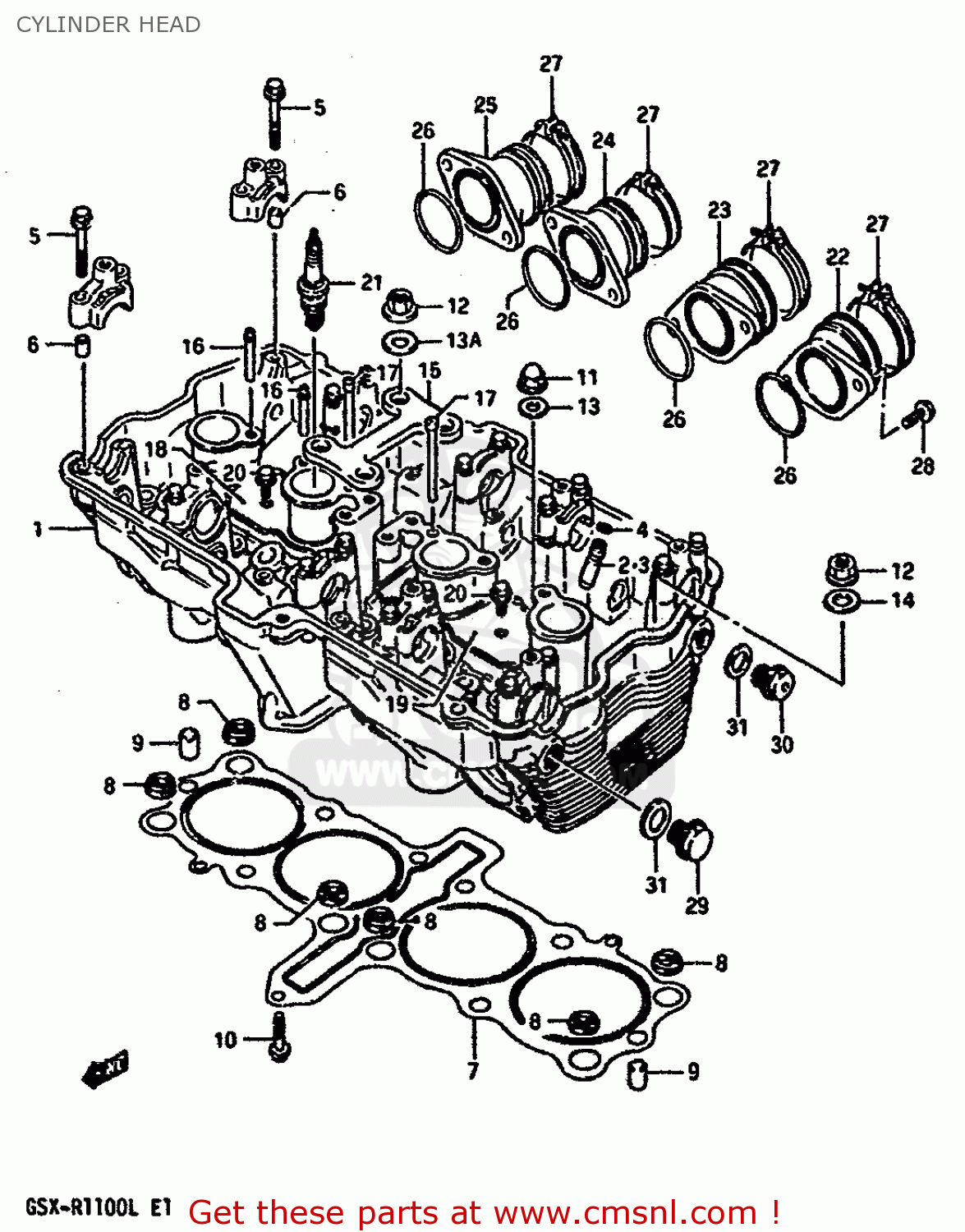

Cylinder head diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1110040C00
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 1,224.00
1-2
1110040C10
ref: 1-2
E18
HEAD ASSEMBLY,CYLINDER
€ 1,632.00
2
1111606B70
ref: 2
GUIDE,VALVE
1111606B70
€ 43.00
3
1111606B70
ref: 3
GUIDE,VALVE
1111606B70
€ 43.00
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
1114148B20
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114148B20
€ 91.00
8
1114348B01
ref: 8
O-RING,HEAD GASKET
1114348B01
€ 6.00
9
0920911007
ref: 9
PIN
0920911007
€ 16.00
10
0151706254
ref: 10
BOLT
€ 2.50
11
0915910069
ref: 11
NUT
0915910069
€ 5.00
12
0831616106
ref: 12
NUT
€ 2.00
13
0916810031
ref: 13
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
13A
0916810031
ref: 13A
MODEL L
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
14
0916010060
ref: 14
WASHER (10.5X22X2.3)
0916010060
€ 2.50
15-1
1113840C00
ref: 15-1
MODEL K
PLATE,HEAD REINF
1113840C00
€ 34.50
15-2
1113840C10
ref: 15-2
MODEL L
PLATE,HEAD REINFORCEMENT
1113840C10
€ 27.00
16
1113127A00
ref: 16
PIPE,OIL NO.1
1113127A00
€ 6.00
17
1113327A00
ref: 17
PIPE,OIL NO.3
1113327A00
€ 7.00
18
1113527A02
ref: 18
PLATE,OIL PIPE,R
1113527A02
€ 4.00
19
1113627A02
ref: 19
PLATE,OIL PIPE,L
1113627A02
€ 4.00
20
0151706128
ref: 20
BOLT
€ 2.50
21-1
0948200389
ref: 21-1
PLUG,SPARK(JR9B)
0948200389
€ 8.00
21-2
0948200391
ref: 21-2
OPT
PLUG,SPARK(JR10B)
0948200391
€ 9.00
22
1311040C00
ref: 22
PIPE,INTAKE
€ 43.50
23
1312040C00
ref: 23
PIPE,INTAKE
€ 43.50
24
1313040C00
ref: 24
NET,INTAKE
€ 43.50
25
1314040C00
ref: 25
PIPE,INTAKE
1314040C00
€ 38.00
26
1311527A01
ref: 26
O RING(D:2.4,ID:39.7)
1311527A01
€ 3.50
27
0940252208
ref: 27
CLAMP
0940252208
€ 5.50
28
0215206165
ref: 28
SCREW
€ 2.00
29-1
0924714034
ref: 29-1
PLUG
0924714034
€ 3.50
29-2
0924714032
ref: 29-2
E18
PLUG
0924714032
€ 5.00
30
0924714032
ref: 30
PLUG
0924714032
€ 5.00
31
0916814004
ref: 31
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
