CAM SHAFT-VALVE

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

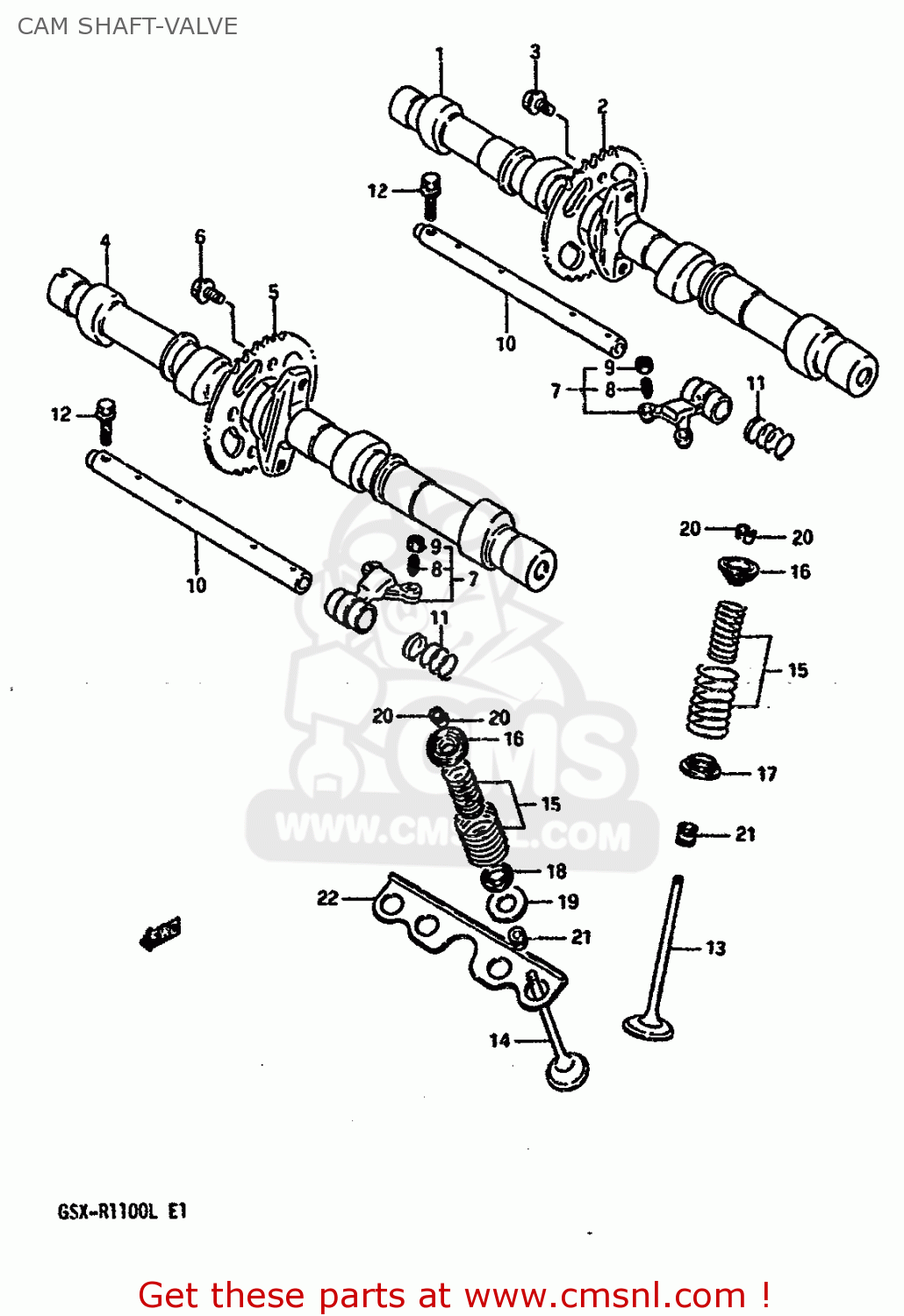

Cam shaft-valve diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1271106B03
ref: 1

CAMSHAFT

€ 549.50

1274106B00
ref: 2

SPROCKET,CAMSHAFT

€ 36.50

0910307001
ref: 3

BOLT(7X11)

€ 2.00

1272117C00
ref: 4

CAMSHAFT,EXHAUST

€ 325.00

1274106B00
ref: 5

SPROCKET,CAMSHAFT

€ 36.50

0910307001
ref: 6

BOLT(7X11)

€ 2.00

1284027A00
ref: 7

ARM,VALVE ROCKER

€ 49.50

1284249210
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.50

1284304A00
ref: 9

NUT,ADJUSTING

€ 3.00

1286127A00
ref: 10

SHAFT,VALVE ROCKER ARM

€ 31.00

0944013014
ref: 11

SPRING

€ 2.50

0171706306
ref: 12

BOLT

€ 2.50

1291106B02
ref: 13

VALVE,INTAKE

€ 84.00

1291206B00
ref: 14

VALVE,EXHAUST

€ 85.50

1292006B00
ref: 15

SPRING SET,VALVE

€ 14.00

1293127A01
ref: 16

RETAINER,VALVE SPRING

€ 5.50

1293327A00
ref: 17

SEAT,VALVE SPRING

€ 4.00

1293427A00
ref: 18

SEAT,VALVE SPRING

€ 7.00

1293527A00
ref: 19

SEAT,VALVE SPRING EXH OUTER

€ 3.50

1293227A00
ref: 20

COTTER VALVE

€ 2.50

0928905011
ref: 21

SEAL,OIL(5X10X9.7)

€ 6.00

1113727A01
ref: 22

PLATE

€ 7.50
