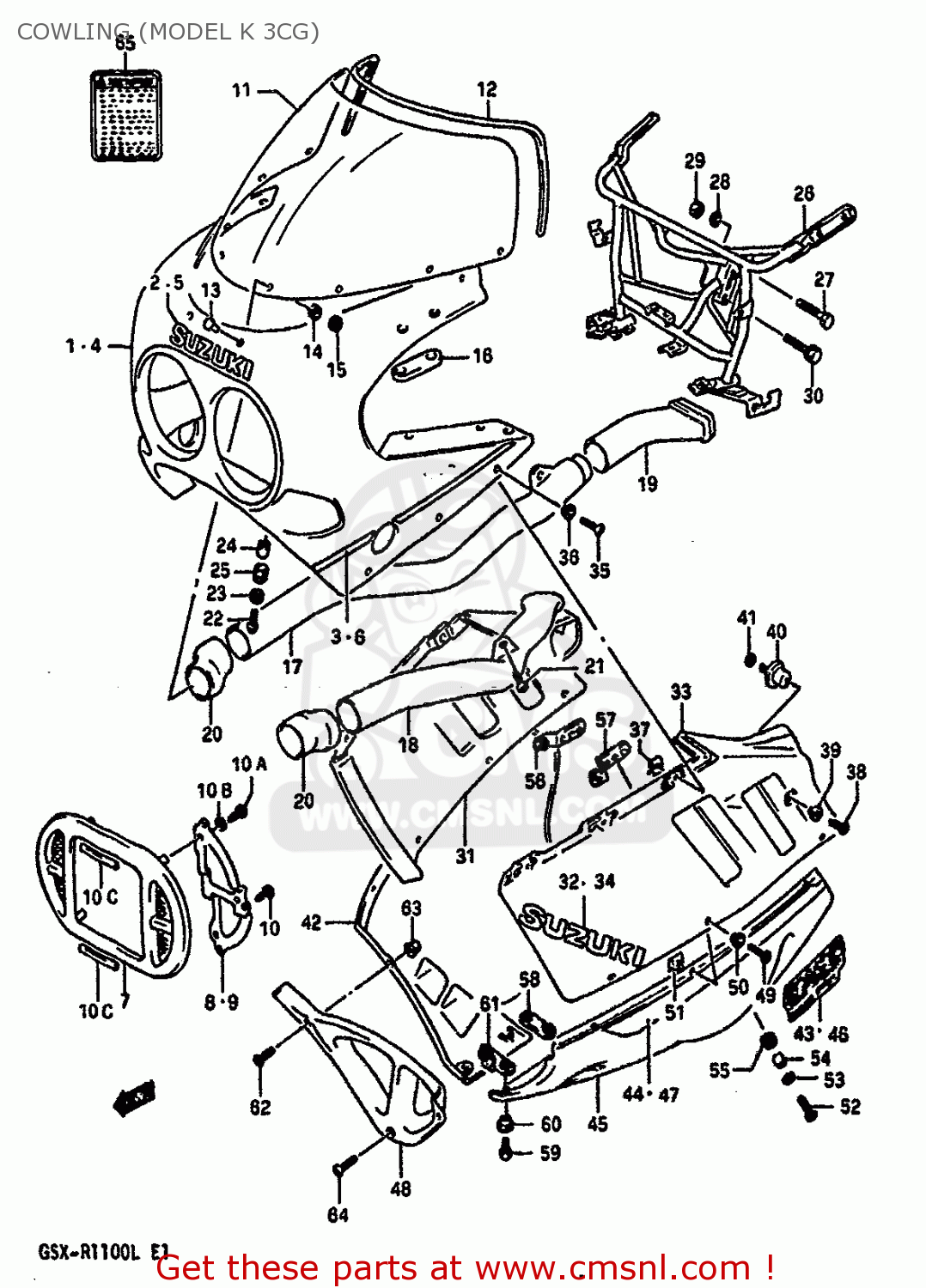

COWLING (MODEL K 3CG)

ref

part #

description

quantity

1-1

9440040C413CG
ref: 1-1
CLEAR COATING

BODY ASSY,COWLING

€ 919.00

1-2

9440040C423CG
ref: 1-2
NO CLEAR COATING

BODY ASSEMBLY,COWLING

€ 919.00

2

6818505C10742
ref: 2

EMBLEM,COWLING FR

€ 9.00

3

6827040C2033J
ref: 3

TAPE SET,COWLING

€ 20.50

4-1

9440040C513CG
ref: 4-1
E18,CLEAR COATING

BODY ASSY,COWLING (BLACK/GRAY)

€ 678.50

4-2

9440040C523CG
ref: 4-2
E18,NO CLEAR COATING

BODY ASSY,COWLING (BLACK/GRAY)

€ 678.50

5

6818505C10742
ref: 5
E18

EMBLEM,COWLING FR

€ 9.00

6

6827040C2033J
ref: 6
E18

TAPE SET,COWLING

€ 20.50

7-1

9446040C0033J
ref: 7-1
E18,CLEAR COATING

COVER,FRONT (BLACK)

€ 0.00

7-2

9446040C0133J
ref: 7-2
E18,NO CLEAR COATING

COVER,FRONT (BLACK)

€ 0.00

8

9469140C00
ref: 8
E18

PLATE,COVER RH

€ 13.00

9

9469240C00
ref: 9
E18

PLATE,COVER LH

€ 13.00

10

0354104106
ref: 10
E18

TAPPING SCREW 4X10/A

€ 1.50

10A

0354104126
ref: 10A
E18

SCREW

€ 1.50

10B

9446640C00
ref: 10B
E18

SPACER

€ 0.00

10C

9446540C00
ref: 10C
E18

CUSHION

€ 0.00

11-1

9461040C00
ref: 11-1

SCREEN SET,WINDOW

€ 455.50

11-2

9461040C10
ref: 11-2
E17

SCREEN SET,WIND

€ 0.00

12-1

9463140C00
ref: 12-1

MOLDING

€ 18.00

12-2

9463140C10
ref: 12-2
E17

MOLDING

€ 0.00

13

9461640C01
ref: 13

PIN,WINDSCREEN

€ 2.50

14

0932004007
ref: 14

CUSHION

€ 3.00

15

0914804032
ref: 15

NUT

€ 2.50

16

9457612C00
ref: 16

CUSHION,RR VIEW MIRRORR

€ 4.50

17

9445140C00
ref: 17

PIPE,AIR INTAKE FR,R

€ 33.00

18

9445240C00
ref: 18

PIPE,AIR INTAKE,FRONT

€ 34.00

19

9445317C00
ref: 19

PIPE,AIR INTAKE RR,R

€ 23.50

20

9445440C00
ref: 20

JOINT,AIR INTAKE

€ 16.00

21

0214206205
ref: 21

SCREW, CENTER

€ 2.00

22

0913906056
ref: 22

SCREW(6X20)

€ 3.00

23

0916006056
ref: 23

WASHER(6.5X18X1)

€ 2.00

24

0918006152
ref: 24

SPACER

€ 3.00

25

0932009016
ref: 25

CUSHION

€ 2.50

26

9451040C02
ref: 26

BRACE,COWLING

€ 236.50

27

0110708355
ref: 27

BOLT

€ 3.50

28

0832121084
ref: 28

WASHER,LOCK,8.

€ 2.50

29

0831012085
ref: 29

NUT ,8MM

€ 1.50

30

0113708355
ref: 30

BOLT

€ 2.00

31-1

9443040C213CG
ref: 31-1
CLEAR COATING

COVER,COWLING SIDE,R

€ 531.50

31-2

9443040C223CG
ref: 31-2
NO CLEAR COATING

COVER ASSEMBLY,COWLING

€ 531.50

32

6868117C00742
ref: 32

EMBLEM,COWLING SIDE

€ 13.50

33-1

9444040C213CG
ref: 33-1
CLEAR COATING

COVER,COWLING SIDE,L

€ 408.00

33-2

9444040C223CG
ref: 33-2
NO CLEAR COATING

COVER COMP,COWLING SIDE,LEFT

€ 408.00

34

6868117C00742
ref: 34

EMBLEM,COWLING SIDE

€ 13.50

35

0913905032
ref: 35

SCREW(5X18)

€ 2.50

36

0916105017
ref: 36

WASHER(5.2X14X1.5)

€ 3.00

37

9448432B00
ref: 37

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

38

0913906027
ref: 38

SCREW(6X12)

€ 3.00

39

0916106021
ref: 39

WASHER(6.3X16X1.5)

€ 2.50

40

9457004A00
ref: 40

CUSHION,COWLING

€ 12.50

41

0832121064
ref: 41

WASHER,LOCK

€ 2.00

42-1

9447040C203CH
ref: 42-1
CLEAR COATING

COVER,COWLING

€ 441.50

42-2

9447040C213CH
ref: 42-2
NO CLEAR COATING

COWLING,UNDER RH (BLACK/SILVER)

€ 441.50

43

6818117C003CS
ref: 43

EMBLEM

€ 5.50

44

6818540C1017U
ref: 44

TAPE,COWLING,UNDER,RIGHT

€ 15.00

45-1

9448040C203CH
ref: 45-1
CLEAR COATING

COVER,COWL LH

€ 374.00

45-2

9448040C213CH
ref: 45-2
NO CLEAR COATING

COWLING,UNDER LH (BLACK/SILVER)

€ 374.00

46

6818117C003CS
ref: 46

EMBLEM

€ 5.50

47

6819540C1017U
ref: 47

TAPE,COWLING,UNDER,LEFT

€ 15.00

48-1

9449817C0033J
ref: 48-1
CLEAR COATING

COWLING,UNDER,CENTER

€ 80.50

48-2

9449817C01
ref: 48-2

COWLING,UNDER,CENTER

€ 80.50

49

0913905032
ref: 49

SCREW(5X18)

€ 2.50

50

0916105017
ref: 50

WASHER(5.2X14X1.5)

€ 3.00

51

9448432B00
ref: 51

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

52

0913906028
ref: 52

SCREW(6X20)

€ 3.50

53

0916006056
ref: 53

WASHER(6.5X18X1)

€ 2.00

54

0918006152
ref: 54

SPACER

€ 3.00

55

0932009016
ref: 55

CUSHION

€ 2.50

56

9458017C01
ref: 56

BRACKET

€ 6.00

57

9459017C01
ref: 57

BRACE,COWLING UNDER,LH

€ 7.00

58

9449306B00
ref: 58

BRACE,COWLING LWR COVER RR

€ 4.00

59

0913906039
ref: 59

SCREW(6X16)

€ 2.50

60

0916106021
ref: 60

WASHER(6.3X16X1.5)

€ 2.50

61

9449006B00
ref: 61

BRACE,COWLING LWR COVER

€ 4.50

62

0913905025
ref: 62

SCREW(5X14)

€ 2.00

63

0831626055
ref: 63

NUT

€ 2.00

64

0913906030
ref: 64

SCREW(6X16)

€ 3.50

65-1

6861248B10
ref: 65-1
E4

LABEL (WARNING SCREEN)

€ 6.50

65-2

6861248B00
ref: 65-2

LABEL (WARNING SCREEN)

€ 6.50

65-3

6861340C11
ref: 65-3

LABEL (WARNING)

€ 8.50

65-4

6861340C00
ref: 65-4
E4,E21,E34,E53

LABEL (WARNING)

€ 7.50
