TAIL LAMP-LICENSE LAMP (SEE NOTE)

GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

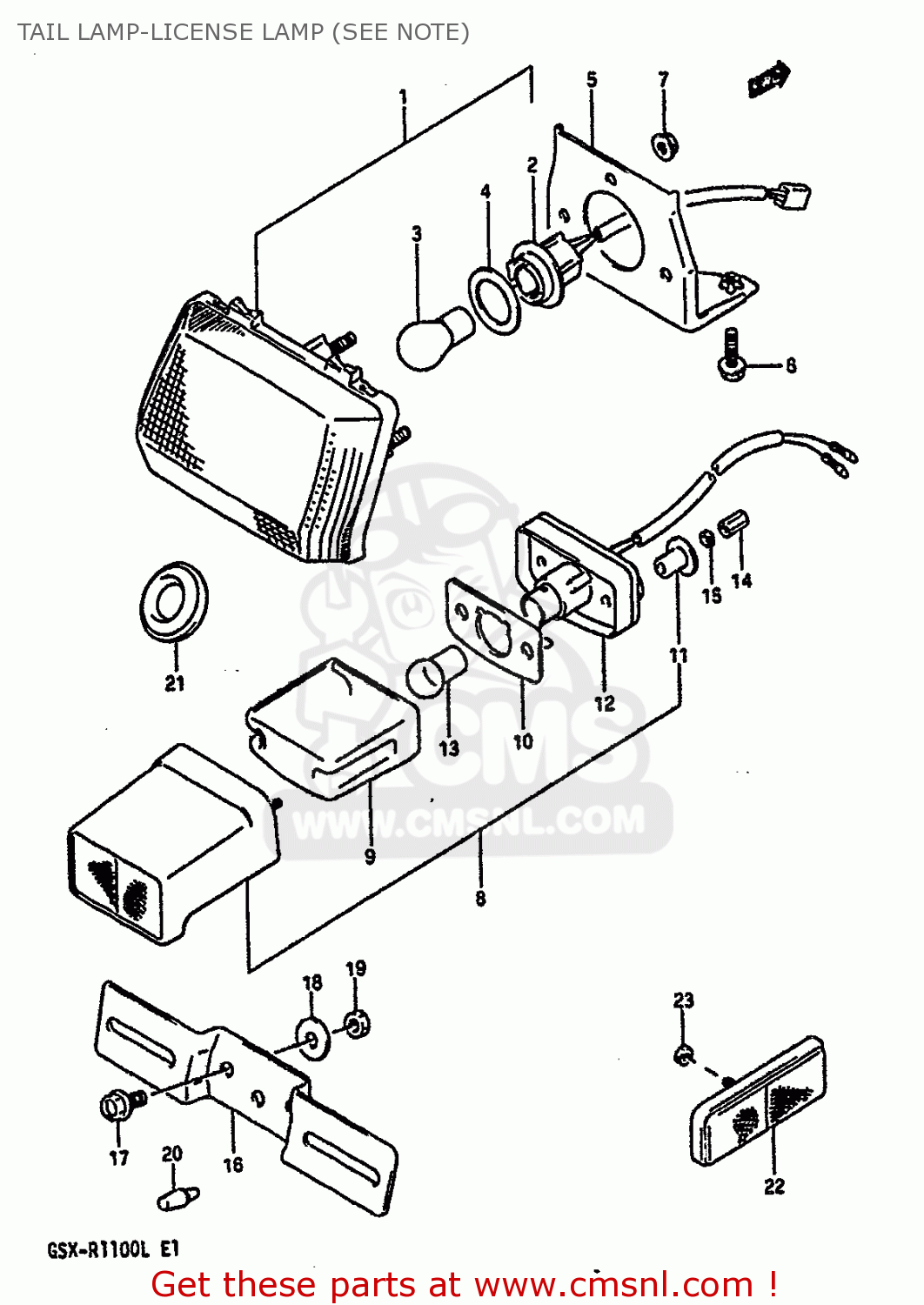

Tail lamp-license lamp (see note) diagram GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

TAIL LAMP-LICENSE LAMP (SEE NOTE) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
TAIL LAMP-LICENSE LAMP (SEE NOTE) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
TAIL LAMP-LICENSE LAMP (SEE NOTE) GSXR1100 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3571017C10
ref: 1
LAMP ASSY,RR C
3571017C10
€ 127.50
2
3571848B20
ref: 2
SOCKET
3571848B20
€ 25.00
3
0947112083
ref: 3
BULB(12V21/5W)
0947112083
€ 6.00
4
3576448B20
ref: 4
CUSHION,RUBBER
3576448B20
€ 2.50
5
3573017C00
ref: 5
BRACKET COMP,REAR COMBINATION LAMP
3573017C00
€ 12.50
6
0151706128
ref: 6
BOLT
€ 2.50
7
0831626066
ref: 7
NUT
€ 2.00
8
3591017C10
ref: 8
LAMP ASSY,LICE
3591017C10
€ 142.50
9
3591238A20
ref: 9
LENS
3591238A20
€ 13.00
10
3591338A30
ref: 10
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
11
3576617C00
ref: 11
SPACER
€ 3.00
12
3591517C10
ref: 12
HOUSING
€ 46.50
13
0947112140
ref: 13
BULB(12V5W,BF150-40160A)
€ 4.00
14
0914004006
ref: 14
NUT
0914004006
€ 4.00
15
0832121046
ref: 15
LOCK WASHER
0832121046
€ 2.00
16
3592717C00
ref: 16
BRACKET,LICENSE PLATE
3592717C00
€ 10.00
17
0151706164
ref: 17
BOLT
€ 2.50
18
0916006020
ref: 18
WASHER
0916006020
€ 2.00
19
0831626066
ref: 19
NUT
€ 2.00
20
0932106025
ref: 20
CUSHION
€ 2.00
21
0925030010
ref: 21
CAP OD:40
0925030010
€ 3.50
22
3595043431
ref: 22
E39
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
23
0831022055
ref: 23
E39
NUT 5MM
0831022055
€ 2.00
