Buy Suzuki GSXR Parts Online


CAM SHAFT-VALVE

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

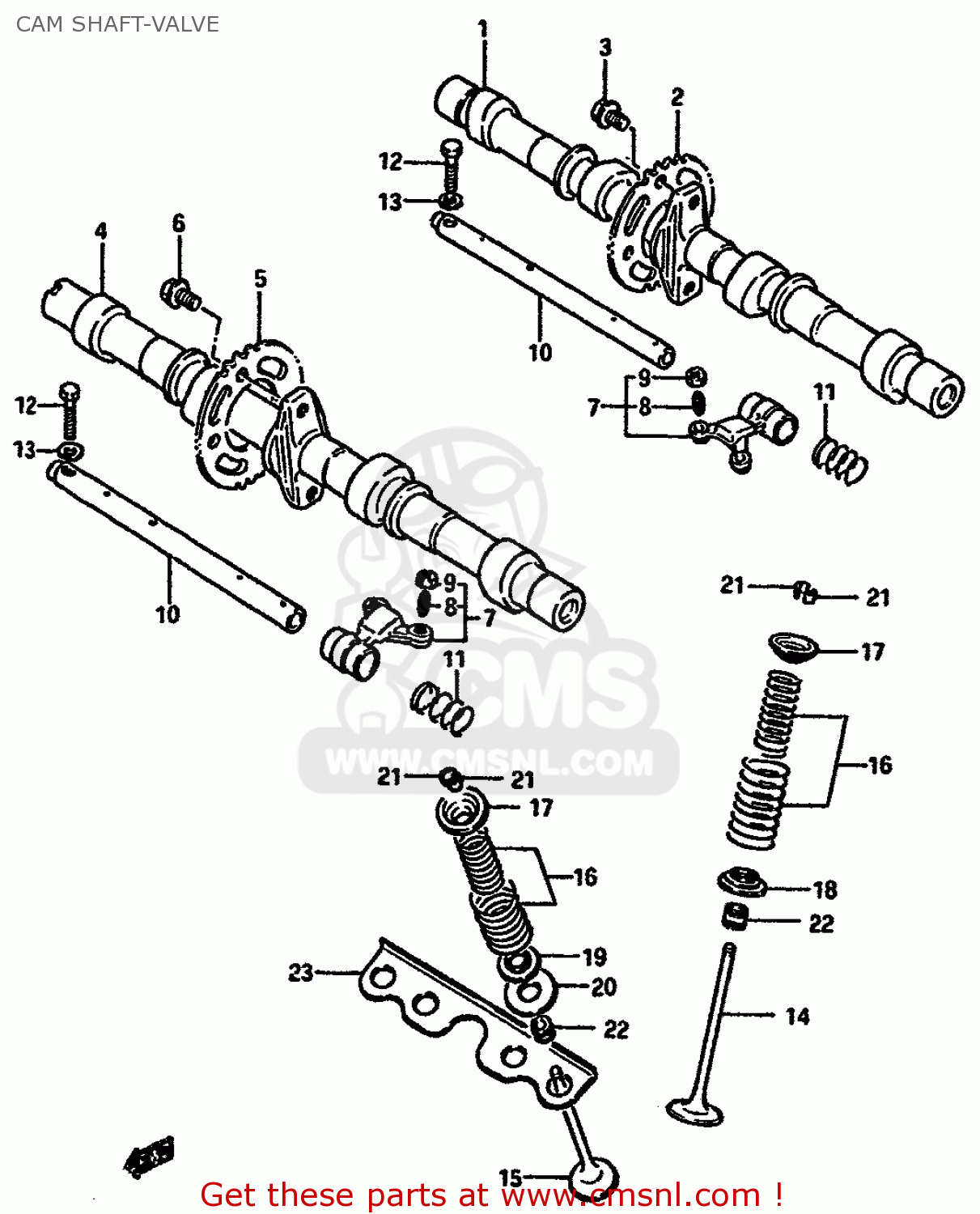

Cam shaft-valve diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CAM SHAFT-VALVE GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CAM SHAFT-VALVE GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CAM SHAFT-VALVE GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1271127A01
ref: 1-1
CAMSHAFT
€ 244.50
1-2
1271128A00
ref: 1-2
MODEL H E18
CAMSHAFT
€ 251.00
2
1274127A00
ref: 2
SPROCKET,CAMSHAFT
1274127A00
€ 41.00
3
0910307001
ref: 3
BOLT(7X11)
0910307001
€ 2.00
4-1
1272127A01
ref: 4-1
CAMSHAFT,EXHAUST
1272127A01
€ 294.00
4-2
1272128A00
ref: 4-2
MODEL H E18
CAMSHAFT,EXHAUST
€ 297.50
5
1274127A00
ref: 5
SPROCKET,CAMSHAFT
1274127A00
€ 41.00
6
0910307001
ref: 6
BOLT(7X11)
0910307001
€ 2.00
7
1284027A00
ref: 7
ARM,VALVE ROCKER
1284027A00
€ 49.50
8
1284249210
ref: 8
SCREW,TAPPET ADJUSTING
1284249210
€ 5.50
9
1284304A00
ref: 9
FROM 12843-27A00
NUT,ADJUSTING
1284304A00
€ 3.00
10
1286127A00
ref: 10
SHAFT,VALVE ROCKER ARM
1286127A00
€ 31.00
11
0944013014
ref: 11
SPRING
0944013014
€ 2.50
12
0110706306
ref: 12
BOLT
0110706306
€ 2.50
13
0832221066
ref: 13
WASHER, LOWER
0832221066
€ 2.00
14
1291127A03
ref: 14
VALVE,INTAKE
1291127A03
€ 34.50
15
1291227A01
ref: 15
VALVE,EXHAUST
1291227A01
€ 45.00
16
1292027A01
ref: 16
SPRING SET,VALVE
1292027A01
€ 15.50
17
1293127A01
ref: 17
RETAINER,VALVE SPRING
1293127A01
€ 5.50
18
1293327A00
ref: 18
SEAT,VALVE SPRING
1293327A00
€ 4.00
19
1293427A00
ref: 19
SEAT,VALVE SPRING
1293427A00
€ 7.00
20
1293527A00
ref: 20
SEAT,VALVE SPRING EXH OUTER
1293527A00
€ 3.50
21
1293227A00
ref: 21
COTTER VALVE
1293227A00
€ 2.50
22
0928905010
ref: 22
OIL SEAL
0928905010
€ 6.00
23
1113727A00
ref: 23
PLATE
€ 7.50
