STARTER CLUTCH

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

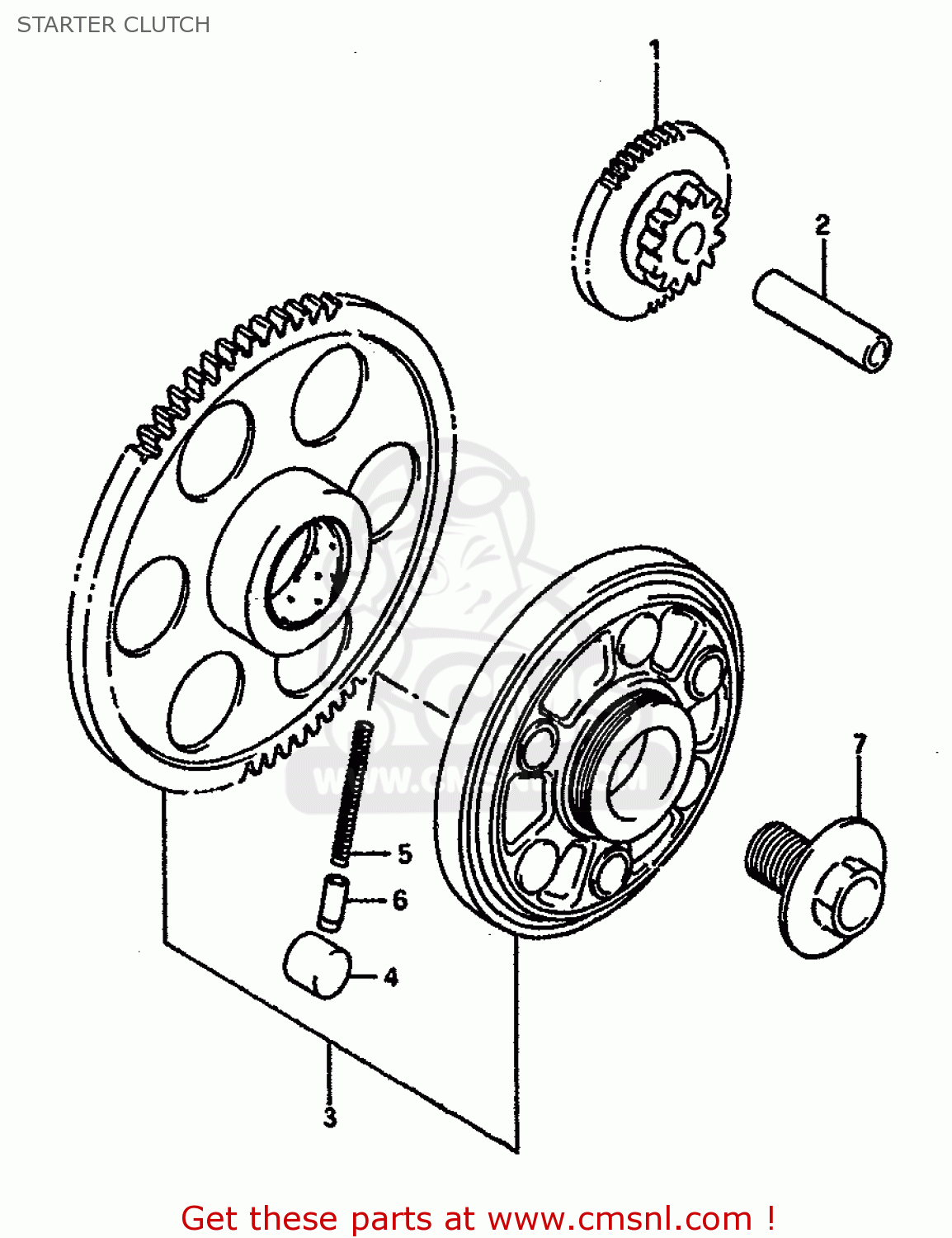

Starter clutch diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1261127A01
ref: 1

GEAR,STARTER IDLE

€ 52.00

0920611014
ref: 2
FROM 09206-11010

PIN(7X11X42)

€ 8.00

3-1

1260027821
ref: 3-1
MODEL F/G TO 12600-2

CLUTCH SET,STARTER

€ 205.00

3-2

1260027822
ref: 3-2
MODEL H

CLUTCH SET,STARTER

€ 205.00

0926114001
ref: 4

PIN(14X13)

€ 5.00

0944004015
ref: 5

SPRING

€ 2.50

1263331000
ref: 6

PIECE,PUSH

€ 9.00

0910314005
ref: 7

BOLT(14X21)

€ 17.00
