CRANKSHAFT

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

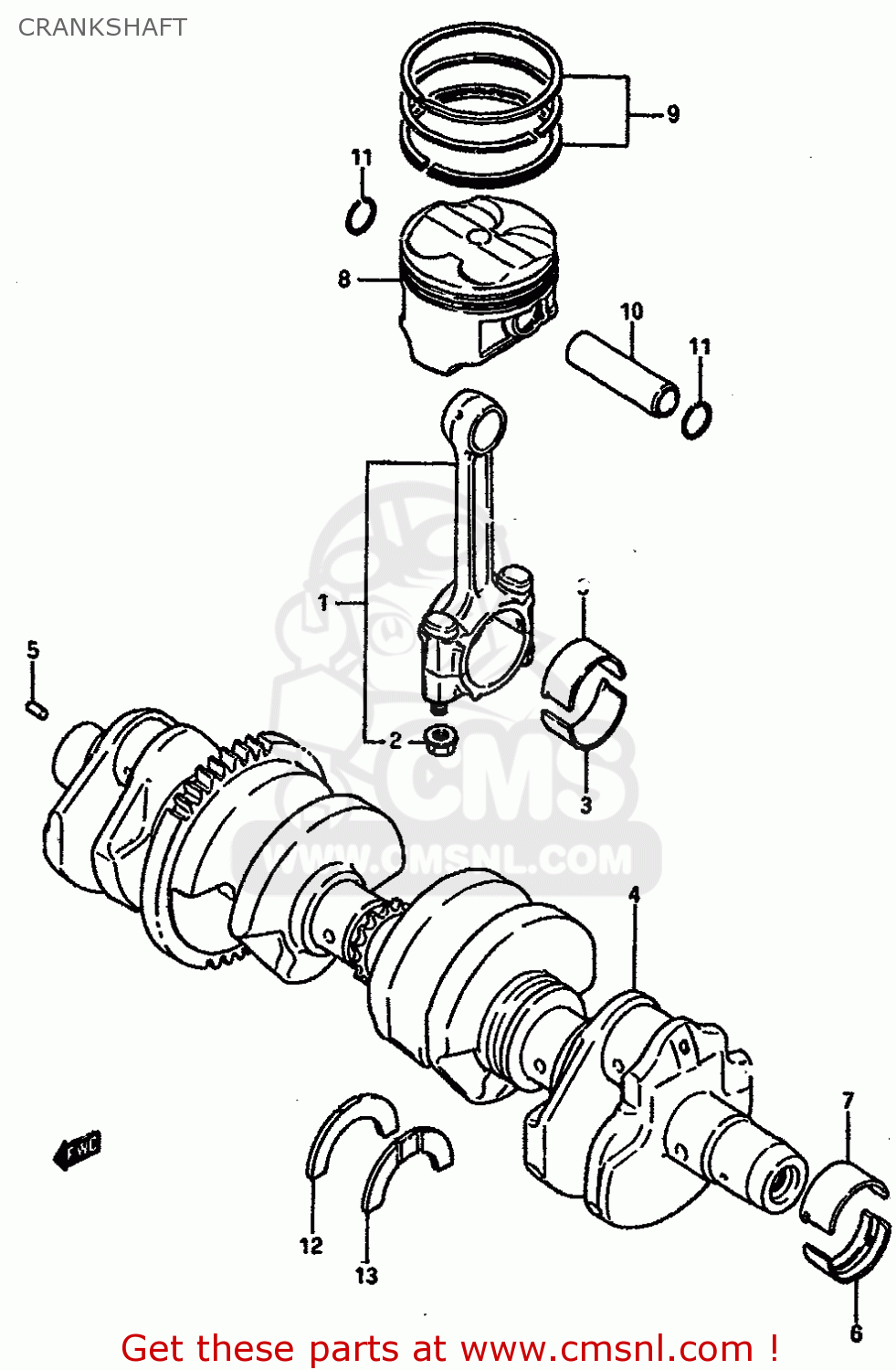

Crankshaft diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CRANKSHAFT GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CRANKSHAFT GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CRANKSHAFT GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1216027990
ref: 1-1
MODEL F TO 12160-27A
ROD ASSY,CONNECTING
1216027990
€ 177.50
1-2
1216027A13
ref: 1-2
MODEL G/H
ROD ASSEMBLY,CONNECTING
1216027A13
€ 177.50
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216427A000A0
ref: 3-1
BEARING,CRANK PIN
1216427A000A0
€ 14.50
3-2
1216427A000B0
ref: 3-2
BEARING,CRANK PIN
1216427A000B0
€ 14.50
3-3
1216427A000C0
ref: 3-3
BEARING,CRANK PIN
1216427A000C0
€ 15.00
3-4
1216427A000D0
ref: 3-4
BEARING,CRANK PIN
1216427A000D0
€ 15.50
4
1222027A03
ref: 4
CRANKSHAFT
€ 976.50
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6-1
1222927A000A0
ref: 6-1
LOWER
BEARING,CRANKSHAFT LWR
1222927A000A0
€ 12.00
6-2
1222927A000B0
ref: 6-2
LOWER
BEARING,CRANKSHAFT LWR
1222927A000B0
€ 12.00
6-3
1222927A000C0
ref: 6-3
LOWER
BEARING,CRANKSHAFT LWR
1222927A000C0
€ 12.00
6-4
1222927A000D0
ref: 6-4
LOWER
BEARING,CRANKSHAFT LWR
1222927A000D0
€ 12.00
7-1
1222927A100A0
ref: 7-1
UPPER
BEARING,CRANKSHAFT UPR
1222927A100A0
€ 12.00
7-2
1222927A100B0
ref: 7-2
UPPER
BEARING,CRANKSHAFT UPR
1222927A100B0
€ 12.00
7-3
1222927A100C0
ref: 7-3
UPPER
BEARING,CRANKSHAFT UPR
1222927A100C0
€ 12.00
7-4
1222927A100D0
ref: 7-4
UPPER
BEARING,CRANKSHAFT UPR
1222927A100D0
€ 11.50
8-1
1211127A13
ref: 8-1
FROM 12111-27A12
PISTON (70.00MM)
1211127A13
€ 470.00
8-2
1211127A12050
ref: 8-2
OPT
PISTON
€ 124.50
8-3
1211127A12100
ref: 8-3
OPT
PISTON
€ 137.50
9-1
1214027A11
ref: 9-1
RING SET,PISTON
1214027A11
€ 50.00
9-2
1214027A11050
ref: 9-2
OPT
RING SET,PISTON (OS:0.5)
1214027A11050
€ 51.00
9-3
1214027A11100
ref: 9-3
OPT
RING SET,PISTON(OS:1.0)
1214027A11100
€ 52.50
10
1215127A10
ref: 10
PIN,PISTON
1215127A10
€ 13.50
11
0938118003
ref: 11
CIRCLIP
0938118003
€ 3.00
12
1222843414
ref: 12
E.NO.131590~,INC.113
PLATE,CRANK THRUST
1222843414
€ 9.50
13-1
1222843411
ref: 13-1
E.NO.131590~,INC.113
PLATE,CRANK THRUST
1222843411
€ 8.50
13-2
1222843412
ref: 13-2
E.NO.131590~,INC.113
PLATE,CRANK THRUST
1222843412
€ 8.50
13-3
1222843413
ref: 13-3
E.NO.131590~,INC.113
PLATE,CRANK THRUST
1222843413
€ 8.00
13-4
1222843414
ref: 13-4
E.NO.131590~,INC.113
PLATE,CRANK THRUST
1222843414
€ 9.50
13-5
1222843415
ref: 13-5
E.NO.131590~,INC.113
BEARING,THRUST
1222843415
€ 8.50
13-6
1222843416
ref: 13-6
E.NO.131590~,INC.113
PLATE,CRANK THRUST
1222843416
€ 9.50
