FUEL TANK (MODEL H)

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

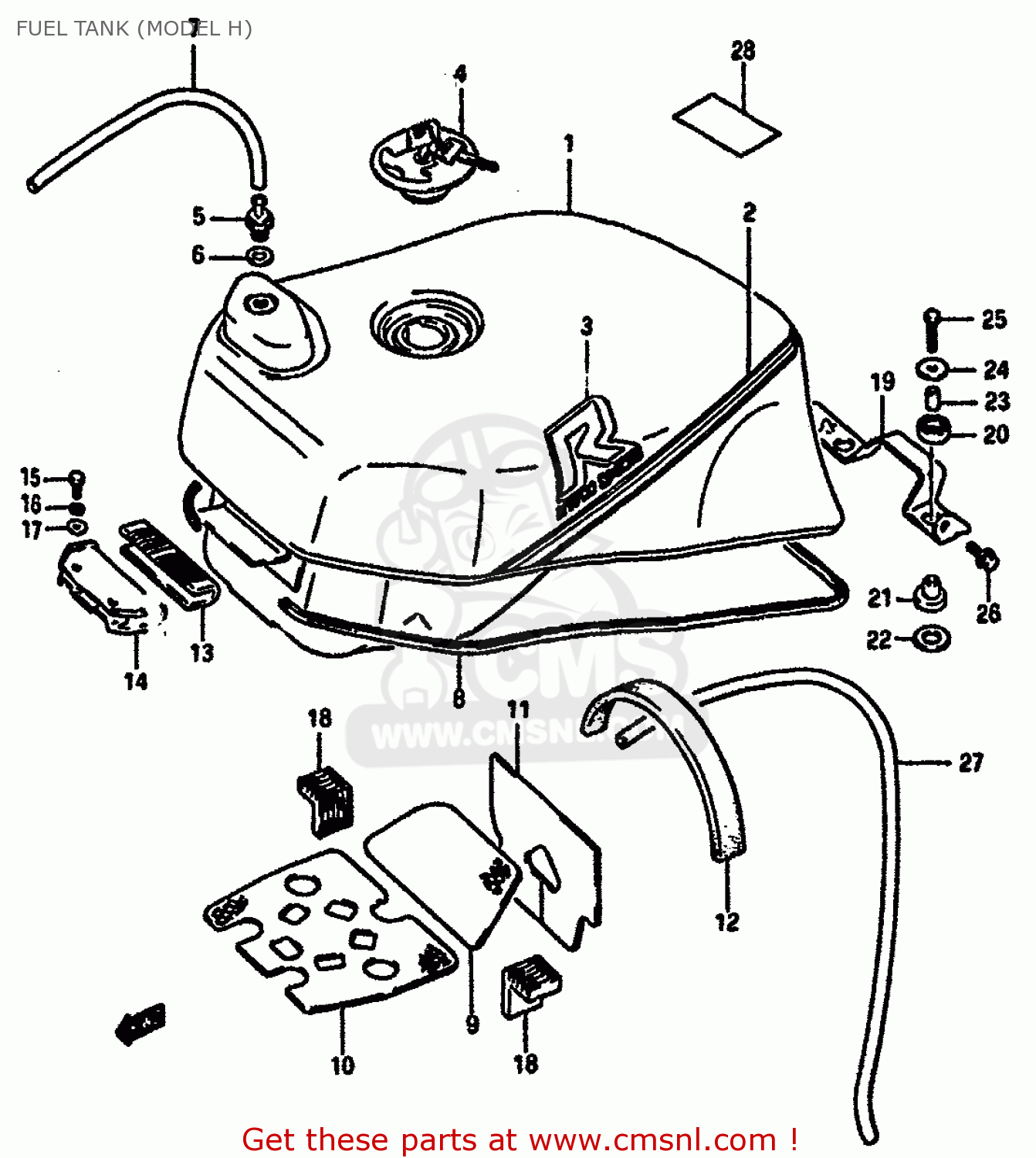

Fuel tank (model h) diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

FUEL TANK (MODEL H) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL H) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL H) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4410028A507JK
ref: 1-1
TANK ASSEMBLY,FUEL
4410028A507JK
€ 629.50
1-2
4410028A607JK
ref: 1-2
E22
TANK ASSY,FUEL
€ 807.00
1-3
4410028A509HE
ref: 1-3
TANK ASSY,FUEL
€ 901.50
1-4
4410028A609HE
ref: 1-4
E22
TANK ASSY,FUEL
€ 807.00
2-1
6811027A309JH
ref: 2-1
FOR 7JK
TAPE SET,FUEL TANK
€ 52.50
2-2
6811027A309JJ
ref: 2-2
FOR 9HE
TAPE SET,FUEL TANK
€ 0.00
3-1
6811127A007TS
ref: 3-1
FOR 7JK
EMBLEM
€ 0.00
3-2
6811127A007TW
ref: 3-2
FOR 9HE
EMBLEM
6811127A007TW
€ 9.00
4
4420020A00KEY
ref: 4
CAP SET,FUEL TANK
4420020A00KEY
€ 174.00
5
4424006B10
ref: 5
PLUG,FUEL TANK BREATHER
4424006B10
€ 36.00
6
0916812012
ref: 6
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
7
0934305129
ref: 7
HOSE
€ 13.00
8
6824127A00
ref: 8
MOLDING,FUEL TANK
6824127A00
€ 23.00
9
4419127A00
ref: 9
SHIELD,FUEL TANK HEAT
4419127A00
€ 15.50
10
4419227A00
ref: 10
SHIELD,FUEL TANK HEAT
4419227A00
€ 25.50
11
4419427A00
ref: 11
HEAT SHIELD,FUEL TANK
€ 16.50
12
4419327A02
ref: 12
SHIELD,TANK & CLEANER
€ 12.50
13
4451127A10
ref: 13
CUSHION,FUEL TANK FR
4451127A10
€ 7.00
14
4452127A00
ref: 14
BRACKET,FUEL TANK FR
4452127A00
€ 16.00
15
0110706205
ref: 15
BOLT
0110706205
€ 2.00
16
0832121064
ref: 16
WASHER,LOCK
0832121064
€ 2.00
17
0832221064
ref: 17
WASHER
0832221064
€ 2.00
18
4454527A10
ref: 18
CUSHION,FUEL TANK SIDE
4454527A10
€ 4.00
19
4521127A00
ref: 19
BRACKET,SEAT SUPPORT,FRONT
4521127A00
€ 9.50
20
0932014017
ref: 20
CUSHION
0932014017
€ 3.00
21
0932010038
ref: 21
CUSHION
0932010038
€ 4.00
22
0916012004
ref: 22
WASHER (12.5X24X1.6)
0916012004
€ 2.00
23
0918006072
ref: 23
SPACER
0918006072
€ 2.00
24
0916006072
ref: 24
WASHER (6.5X24X1.6)
0916006072
€ 2.00
25
0110706356
ref: 25
BOLT ,6X35
€ 2.50
26
0913806038
ref: 26
SCREW(6X16)
0913806038
€ 3.00
27
0934305165
ref: 27
HOSE,FUEL
0934305165
€ 13.00
28
8693273060
ref: 28
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
