REAR SWINGING ARM

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

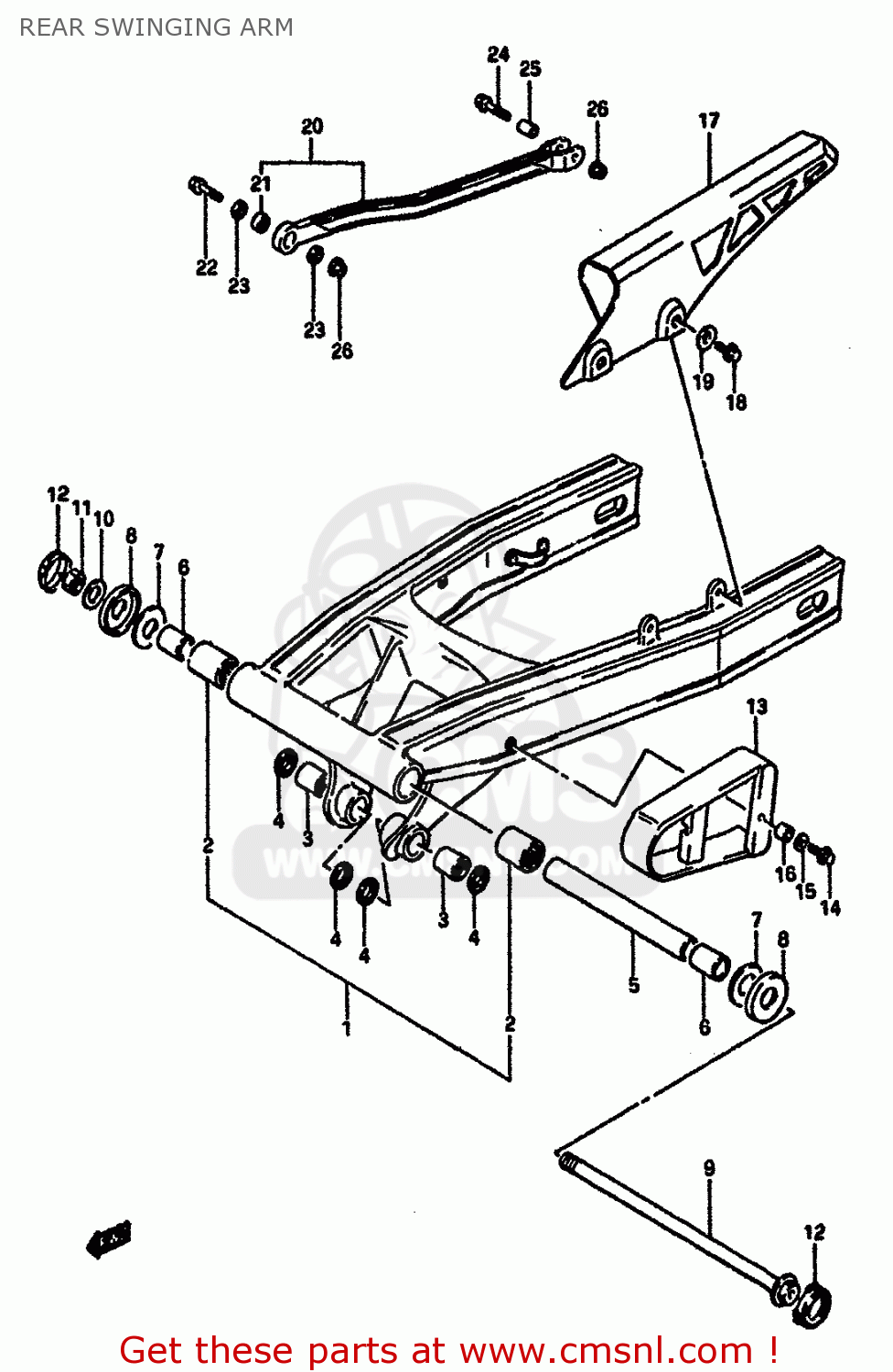

Rear swinging arm diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

REAR SWINGING ARM GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
REAR SWINGING ARM GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
REAR SWINGING ARM GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
6100027A00
ref: 1-1
MODEL F
SWING ARM ASSEMBLY,REAR
€ 856.50
1-2
6100027A20
ref: 1-2
MODEL G/H
SWING ARM ASSEMBLY,REAR
€ 958.50
2
0926322025
ref: 2
BEARING(22X29X25)
0926322025
€ 31.50
3
0926317029
ref: 3
ROLLER BEARING (17X24X25))
0926317029
€ 19.00
4
6264702B00
ref: 4
SPACER,REAR CUSHION ROD
6264702B00
€ 3.50
5
6128227A00
ref: 5
SPACER,RR SWGARM PIVOT CTR
6128227A00
€ 20.50
6
6125127A00
ref: 6
SPACER,RR SWGARM PIVOT BEARING
6125127A00
€ 23.00
7
0821116381
ref: 7
WASHER
0821116381
€ 2.50
8
6126249000
ref: 8
COVER,RR SWGARM DUST SEAL
6126249000
€ 17.50
9
6121127A01
ref: 9
SHAFT,REAR SWING ARM
€ 43.50
10
0916014015
ref: 10
WASHER(14X27X3)
0916014015
€ 4.00
11
0915914013
ref: 11
NUT
0915914013
€ 8.50
12
6122243400
ref: 12
CAP,SWINGINGARM PIVOT
6122243400
€ 4.00
13
6127327A00
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
6127327A00
€ 26.00
14
0110706206
ref: 14
BOLT,M6X1X20
0110706206
€ 2.00
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
0916006019
€ 1.50
16
0918006135
ref: 16
SPACER(6.5X8.5X5.8)
0918006135
€ 2.00
17
6131027A01
ref: 17
CASE,CHAIN
6131027A01
€ 48.00
18
0151706105
ref: 18
BOLT
€ 2.50
19
0916906026
ref: 19
WASHER
0916906026
€ 2.00
20-1
6430027830
ref: 20-1
MODEL F
TORQUE LINK SET,REAR
6430027830
€ 139.00
20-2
6430027840
ref: 20-2
MODEL G/H
TORQUE LINK SET,REAR
6430027840
€ 120.50
21
6435240411
ref: 21
SPHERICAL BEARING,TORQUE
€ 69.50
22
0910308178
ref: 22
BOLT(8X38)
0910308178
€ 5.00
23
6433940410
ref: 23
6433940410
24
0910308142
ref: 24
BOLT(8X35)
0910308142
€ 3.00
25
6433620A00
ref: 25
SPACER,RR TORQUE LINK RR
6433620A00
€ 8.00
26
0831931087
ref: 26
NUT
0831931087
€ 2.50
