Buy Suzuki GSXR Parts Online


STEERING STEM

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

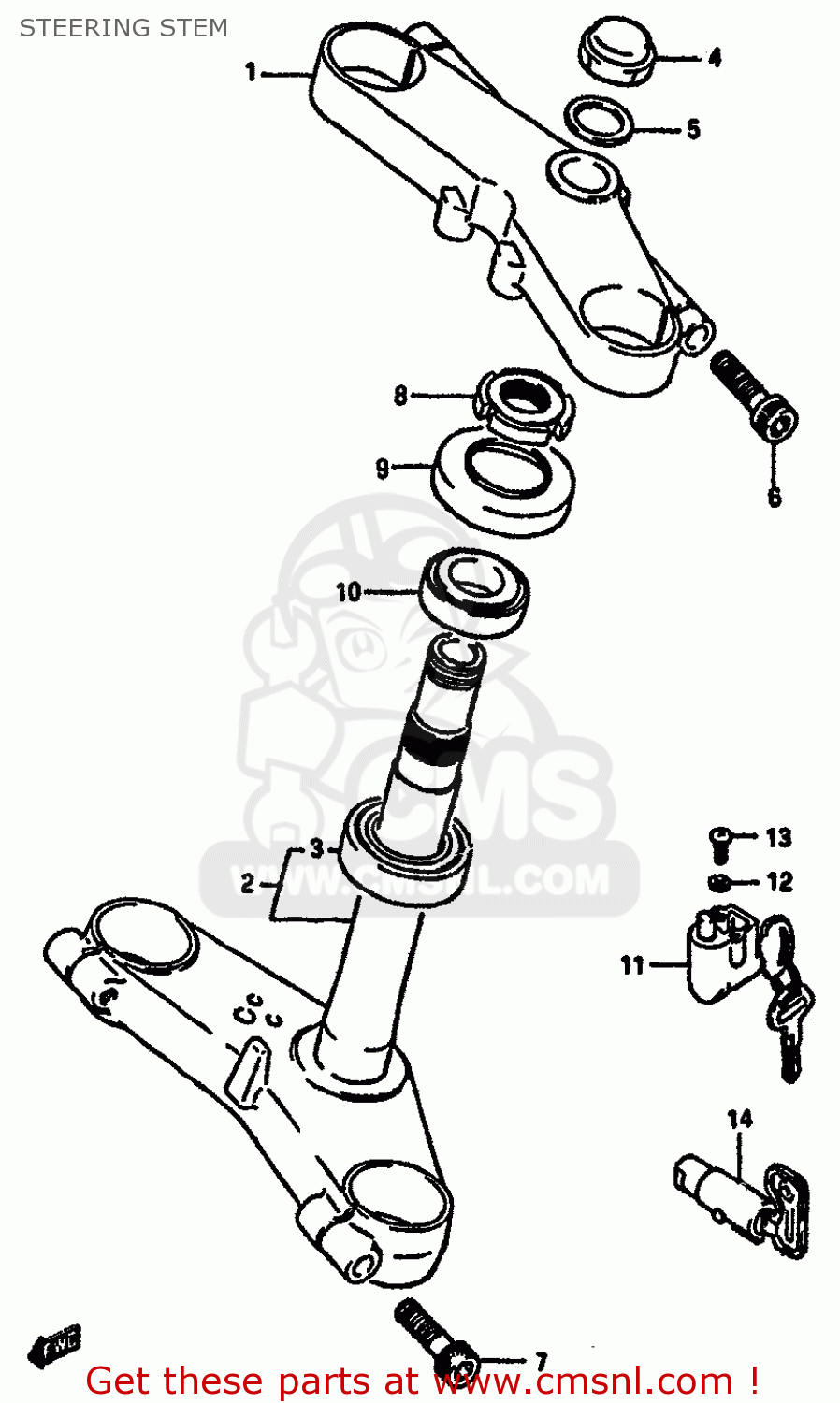

Steering stem diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

STEERING STEM GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STEERING STEM GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STEERING STEM GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
5131127A00291
ref: 1
STEM HEAD,STEERING
5131127A00291
€ 157.50
2
5141027A10
ref: 2
STEM,STEERING
5141027A10
€ 302.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4-1
5135327A00
ref: 4-1
MODEL F/G
NUT,STEM HEAD
5135327A00
€ 30.00
4-2
5135327A80
ref: 4-2
MODEL H
NUT,STEM HEAD
€ 30.00
5
5135627A00
ref: 5
WASHER,STEERING STEM
5135627A00
€ 3.00
6
5135200A00
ref: 6
BOLT,FORK INNER TUBE FITTING
5135200A00
€ 6.00
7
0711010408
ref: 7
BOLT ,10X40
€ 3.50
8
5163128000
ref: 8
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
9
5164327A00
ref: 9
DUST SEAL,STEERING UPR
5164327A00
€ 9.00
10
0926525008
ref: 10
TAPER,ROLLER BEARING
0926525008
€ 48.50
11
5190008014KEY
ref: 11
LOCK ASSY,STEERING
5190008014KEY
€ 30.50
12
0832121057
ref: 12
LOCK WASHER
0832121057
€ 2.00
13
0211205208
ref: 13
SCREW 5X20
0211205208
€ 3.00
14
5190022662
ref: 14
E15,E17,E22
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
