REAR SHOCK ABSORBER

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

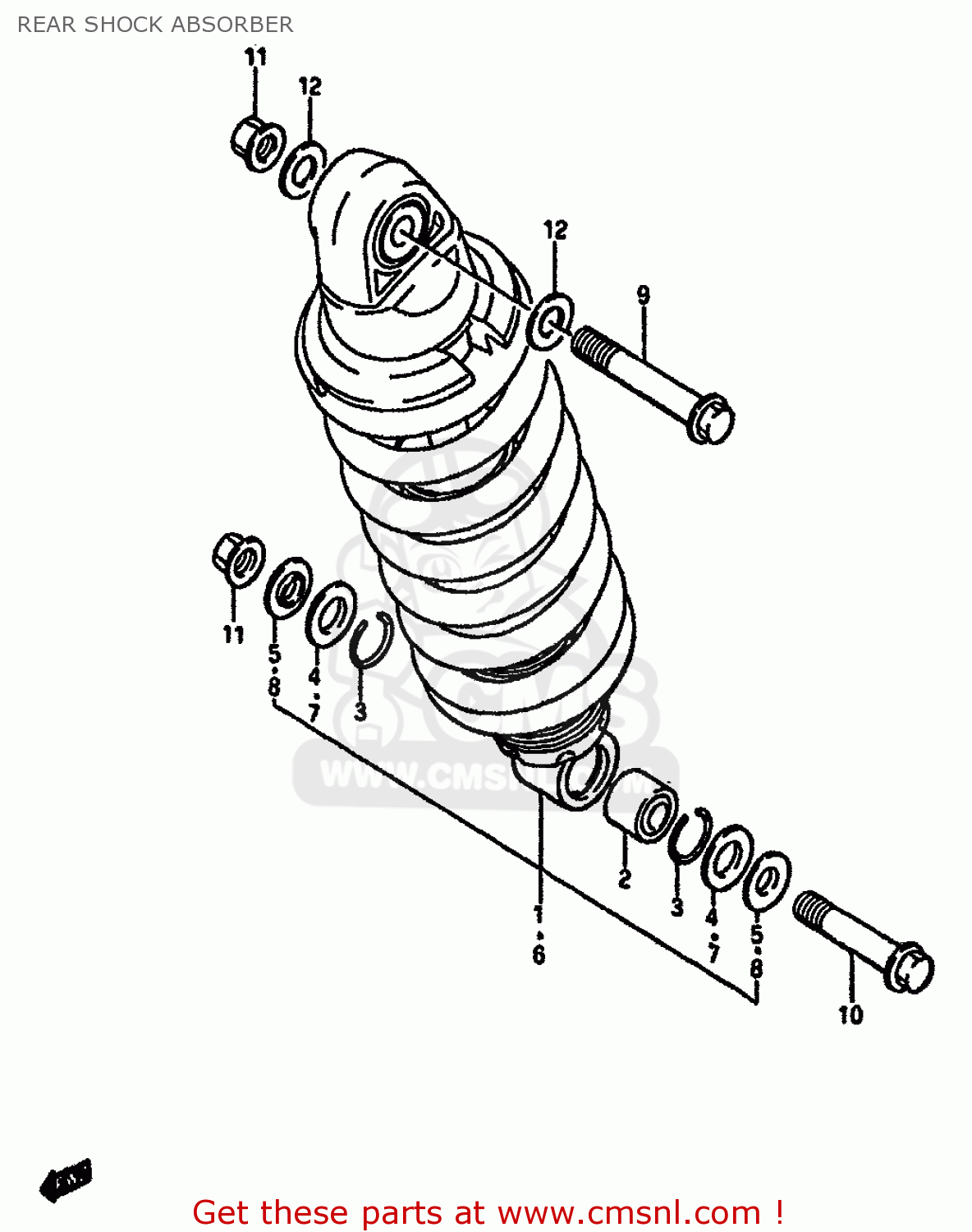

Rear shock absorber diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

6210027A00
ref: 1
MODEL F/G

ABSORBER ASSEMBLY,REAR SHOCK

€ 740.00

6217543400
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

6227714200
ref: 3

RING

€ 1.50

6222600A00
ref: 4

SEAL,DUST UPR

€ 8.00

6268400A00
ref: 5

COLLAR,UPR

€ 13.00

6210027A50
ref: 6
MODEL H

ABSORBER ASSY,RR SHOCK

€ 740.00

6222627A20
ref: 7

SEAL DUST

€ 7.50

6268427A50
ref: 8

COLLAR

€ 12.50

6231108300
ref: 9

BOLT

€ 11.50

6264814500
ref: 10

BOLT,RR CUSHION ROD UPR

€ 3.00

0831931107
ref: 11

NUT

€ 3.00

6232127A00
ref: 12

WASHER,REAR SHOCK ABSORBER

€ 4.00
