SEAT (MODEL G)

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

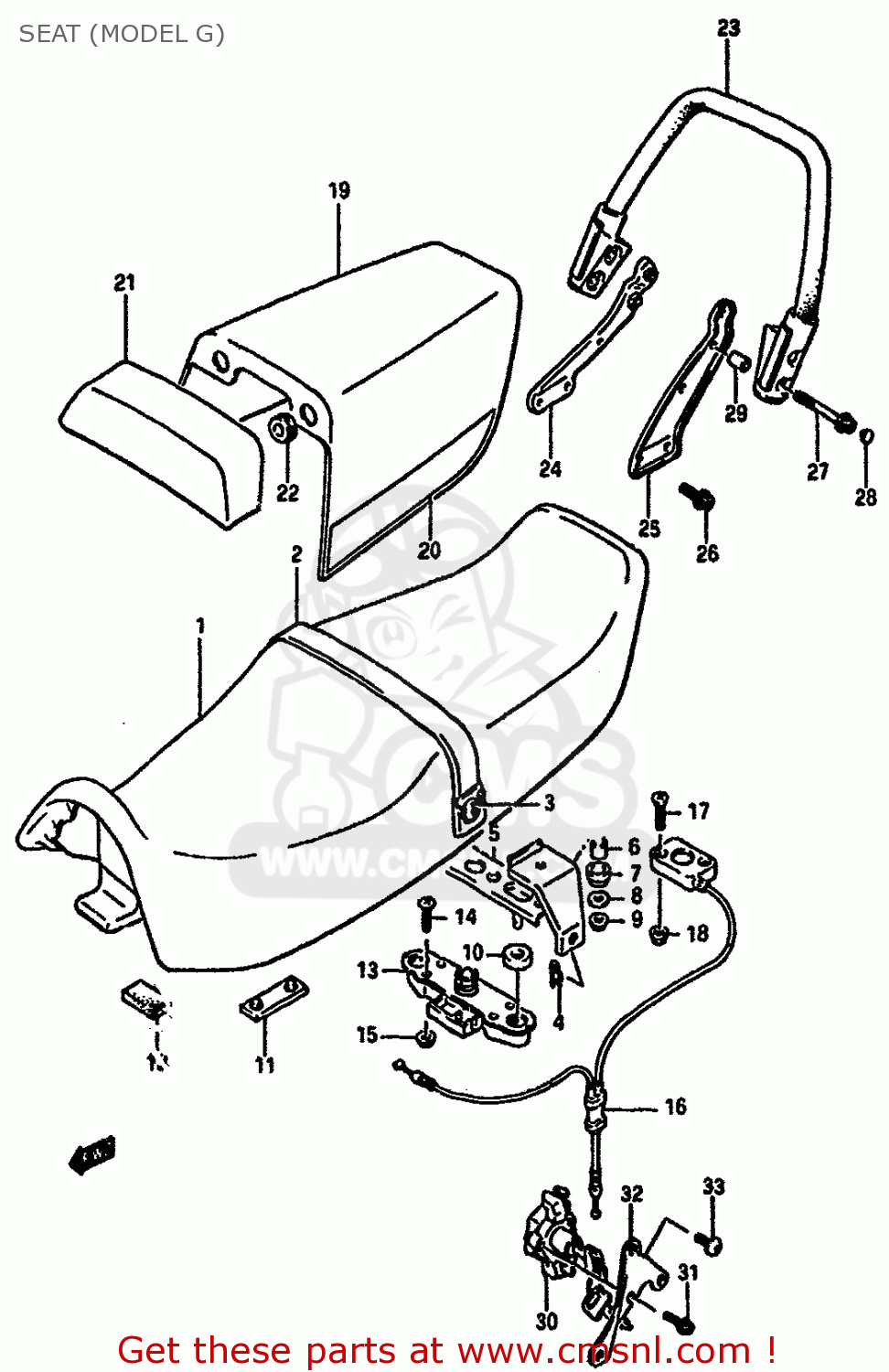

Seat (model g) diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

SEAT (MODEL G) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL G) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL G) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510006B1058D
ref: 1-1
FOR 7GF
SEAT ASSEMBLY
€ 385.00
1-2
4510006B1058E
ref: 1-2
FOR 7JK
SEAT ASSEMBLY
4510006B1058E
€ 385.00
1-3
4510006B0058D
ref: 1-3
E39,FOR 7GF
SEAT ASSY (BLUE)
€ 385.00
1-4
4510006B0058E
ref: 1-4
E39,FOR 7JK
SEAT ASSY (RED)
€ 385.00
2-1
4518006B0058D
ref: 2-1
E39,FOR 7GF
BAND,SEAT GRIP (BLUE)
€ 16.00
2-2
4518006B0058E
ref: 2-2
E39,FOR 7JK
BAND,SEAT GRIP (RED)
4518006B0058E
€ 16.00
3
4518606B00
ref: 3
E39
BOLT
4518606B00
€ 5.00
4
0938506001
ref: 4
E39
CLIP
0938506001
€ 11.00
5
4521006B00
ref: 5
STRIKER,SEAT LOCK
€ 23.00
6
4521506B00
ref: 6
CUSHION
€ 4.50
7
4521606B00
ref: 7
SPACER
4521606B00
€ 2.50
8
0916006020
ref: 8
WASHER
0916006020
€ 2.00
9
0831616066
ref: 9
NUT
€ 2.50
10
4521331300
ref: 10
CUSHION
4521331300
€ 1.50
11
0932108009
ref: 11
CUSHION
0932108009
€ 4.00
12
4525527A00
ref: 12
CUSHION
€ 0.00
13
4522013601
ref: 13
LOCK ASSY,SEAT STRIKER
4522013601
€ 47.00
14
0211206305
ref: 14
SCREW
0211206305
€ 2.50
15
0831626065
ref: 15
NUT
0831626065
€ 2.00
16
4522006B00
ref: 16
BRACKET,SEAT SUPPORT RR
4522006B00
€ 72.50
17
0212206255
ref: 17
SCREW
€ 2.00
18
0831626065
ref: 18
NUT
0831626065
€ 2.00
19-1
455500684014L
ref: 19-1
FOR 58D,GSX-R750XG:O
BOX,SEAT TAIL
€ 387.50
19-2
4555006840019
ref: 19-2
FOR 58E,GSX-R750XG:O
BOX,SEAT TAIL
€ 288.50
20-1
6865027A2008L
ref: 20-1
FOR 14L,GSX-R750XG:O
TAPE SET,SEAT TAIL BOX
€ 17.00
20-2
6865027A20064
ref: 20-2
FOR 019,GSX-R750XG:O
TAPE SET,SEAT TAIL BOX
€ 0.00
21-1
4622027A0058D
ref: 21-1
FOR 14L,GSX-R750XG:O
BACKREST,SEAT
€ 61.00
21-2
4622027A0058E
ref: 21-2
FOR 019,GSX-R750XG:O
BACKREST,SEAT
€ 61.00
22
0932012031
ref: 22
GSX-R750XG:OPT
CUSHION
0932012031
€ 3.00
23
4621027A01
ref: 23
HANDLE,PILLION RIDER
4621027A01
€ 99.50
24
4624027A00
ref: 24
PLATE,PILLION HANDLE,R
4624027A00
€ 10.00
25
4625027A00
ref: 25
PLATE COMP,PILLION HANDLE
4625027A00
€ 9.00
26
0712006168
ref: 26
BOLT
€ 2.50
27
0910608061
ref: 27
BOLT
€ 4.50
28
0925006008
ref: 28
CAP(OD:10)
0925006008
€ 3.00
29
0918008125
ref: 29
SPACER (8.6X13.8X21.5)
0918008125
€ 6.50
30
9570027A00KEY
ref: 30
LOCK SET
9570027A00KEY
€ 65.50
31
0712006205
ref: 31
PLUG ,6X20
0712006205
€ 3.50
32
4528527A00
ref: 32
BRACKET,SEAT LOCK
4528527A00
€ 3.50
33
0214206125
ref: 33
SCREW 6X12
0214206125
€ 2.00
