OIL COOLER

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

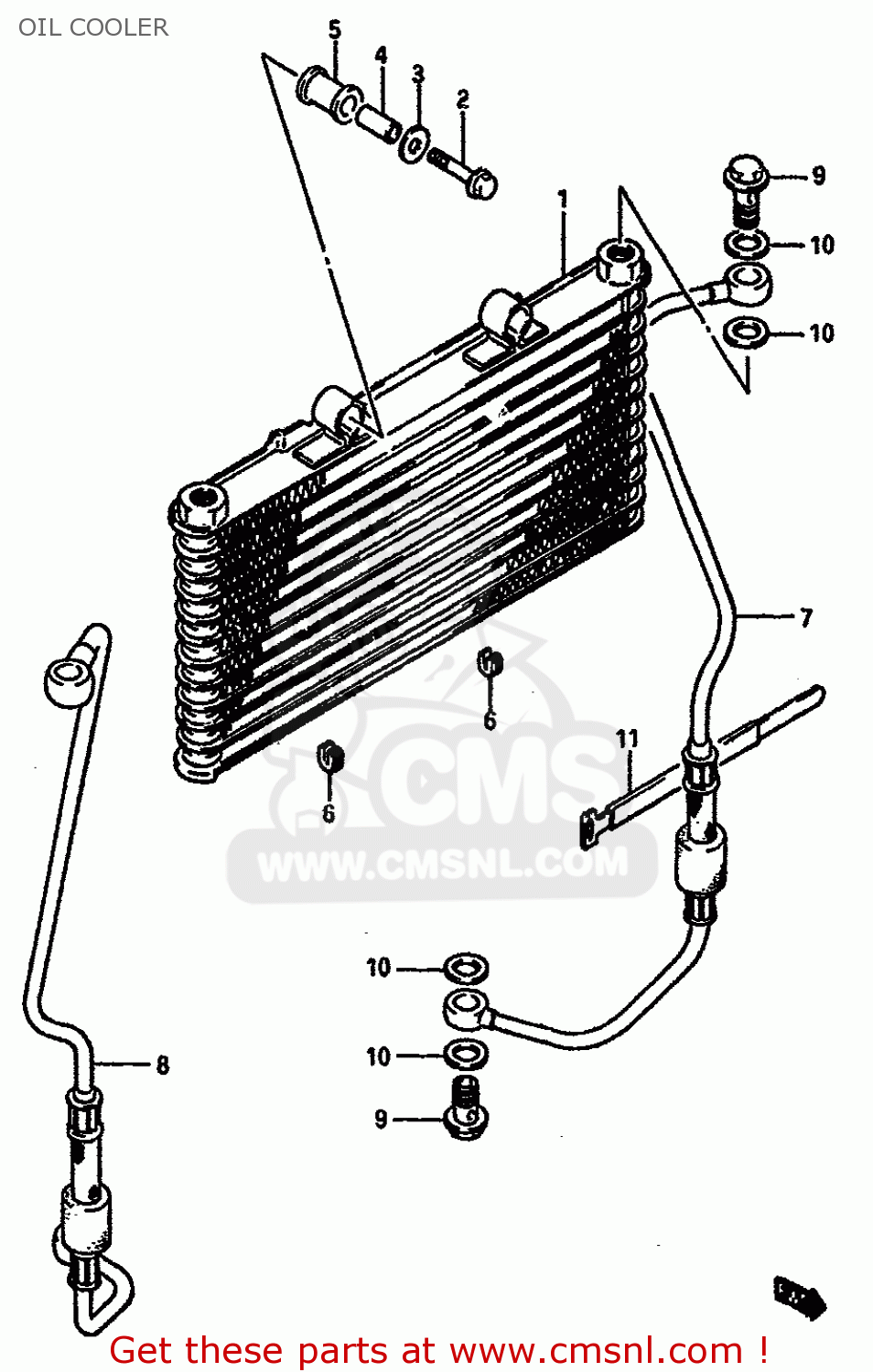

Oil cooler diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1660027A01
ref: 1

COOLER ASSEMBLY,OIL

€ 813.00

0151708405
ref: 2

BOLT 8X40

€ 3.50

0916008047
ref: 3

WASHER(8.5X23X1.2)

€ 2.00

0918008124
ref: 4

SPACER (8.8X12X24.5)

€ 7.00

1662927A01
ref: 5

CUSHION,OIL COOLER NO.1

€ 4.00

1662827A00
ref: 6

CUSHION,OIL COOLER NO.2

€ 3.00

1646027A00
ref: 7

HOSE,OIL

€ 156.50

1647027A00
ref: 8

HOSE,OIL

€ 152.00

0936016001
ref: 9

BOLT,UNION

€ 12.00

0916816003
ref: 10

GASKET(16X22X2) (NAS)

€ 2.00

0940718301
ref: 11

CLAMP

€ 6.00
