CYLINDER HEAD

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

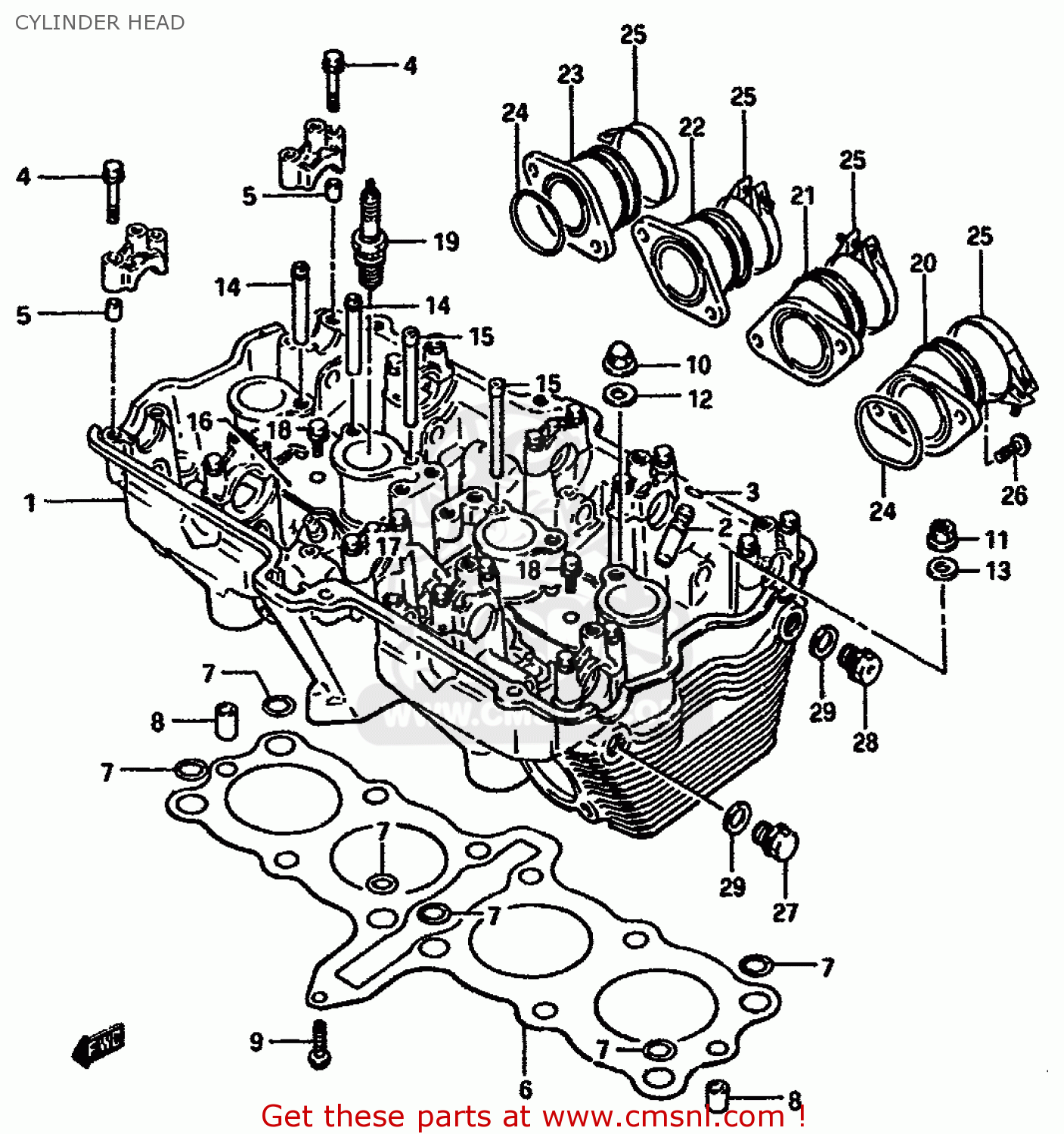

Cylinder head diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1110027A04
ref: 1-1
HEAD ASSY, CYLINDER
€ 1,588.00
1-2
1110028A01
ref: 1-2
MODEL H E18
HEAD ASSEMBLY,CYLINDER
1110028A01
€ 594.50
2
1111527A70
ref: 2
GUIDE,VALVE
1111527A70
€ 43.00
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
0910306026
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
1114127A01
ref: 6
GASKET,CYLINDER HEAD (NAS)
1114127A01
€ 99.50
7
0928012013
ref: 7
O RING(D:2.6,ID:12.1)
0928012013
€ 7.50
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9
0151706254
ref: 9
BOLT
€ 2.50
10
0915910054
ref: 10
NUT
0915910054
€ 7.50
11
0831616106
ref: 11
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
13
0916010060
ref: 13
WASHER (10.5X22X2.3)
0916010060
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
1113127A00
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
1113327A00
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
1113527A02
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
1113627A02
€ 4.00
18
0151706128
ref: 18
BOLT
€ 2.50
19-1
0948200184
ref: 19-1
SPARK PLUG D9EA
€ 6.50
19-2
0948200221
ref: 19-2
E2,E4,E6,E15,E16,E17
PLUG,SPARK(DR8ES)
0948200221
€ 5.50
20-1
1311027A00
ref: 20-1
PIPE,INTAKE
€ 37.00
20-2
1310127A10
ref: 20-2
MODEL F/G E18
PIPE, INTAKE NO.1
€ 37.00
20-3
1311028A00
ref: 20-3
MODEL H E18
PIPE,INTAKE
€ 37.00
21-1
1312027A00
ref: 21-1
PIPE,INTAKE
€ 49.50
21-2
1310227A10
ref: 21-2
MODEL F/G E18
PIPE, INTAKE NO.2
1310227A10
€ 49.50
21-3
1312028A00
ref: 21-3
MODEL H E18
PIPE,INTAKE
€ 49.50
22-1
1313027A00
ref: 22-1
NET,INTAKE
€ 37.00
22-2
1310327A10
ref: 22-2
MODEL F/G E18
PIPE, INTAKE NO.3
€ 37.00
22-3
1313028A00
ref: 22-3
MODEL H E18
NET,INTAKE
€ 37.00
23-1
1314027A00
ref: 23-1
PIPE,INTAKE
€ 39.00
23-2
1310427A10
ref: 23-2
MODEL F/G E18
PIPE, INTAKE NO.4
€ 39.00
23-3
1314028A00
ref: 23-3
MODEL H E18
PIPE,INTAKE
€ 39.00
24
1311527A01
ref: 24
EXCEPT MODEL F/G E18
O RING(D:2.4,ID:39.7)
1311527A01
€ 3.50
25
0940250208
ref: 25
CLAMP
0940250208
€ 5.00
26
0215206165
ref: 26
SCREW
€ 2.00
27
0924714034
ref: 27
PLUG
0924714034
€ 3.50
28
0924714032
ref: 28
PLUG
0924714032
€ 5.00
29
0916814004
ref: 29
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
