CYLINDER

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

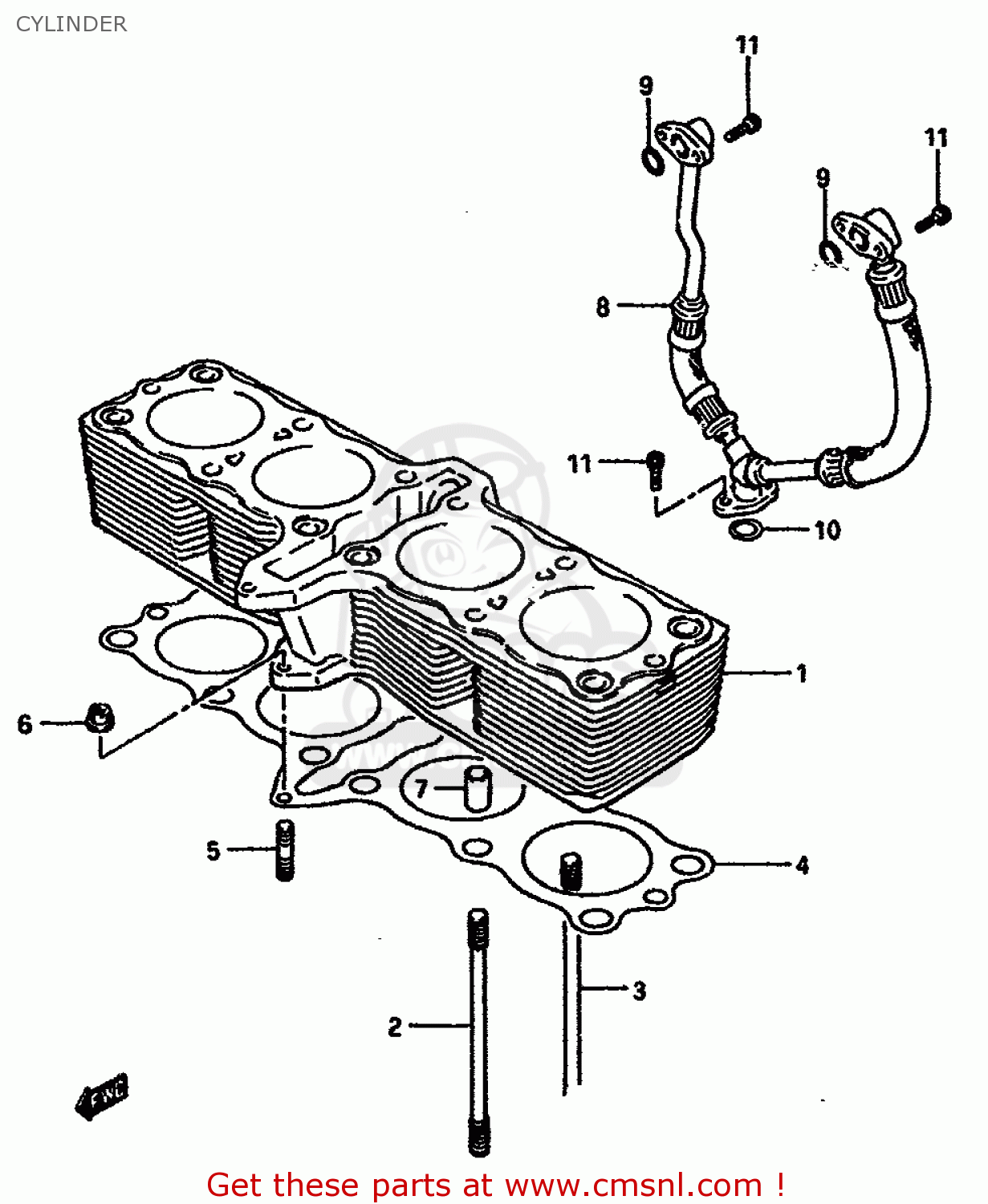

Cylinder diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1121027A04
ref: 1
FROM 11210-27A03

CYLINDER

€ 896.00

0910810074
ref: 2

STUD

€ 11.00

0910810073
ref: 3

BOLT,STUD

€ 9.50

1124127A02
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

0142106205
ref: 5

STUD BOLT L:20

€ 2.50

0831616064
ref: 6

NUT 6MM

€ 2.50

0920613006
ref: 7

PIN

€ 9.00

1132827A01
ref: 8

HOSE

€ 241.00

0928014011
ref: 9

O RING(D:2.5,ID:13.8)

€ 3.50

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

0711006165
ref: 11

BOLT

€ 3.00
