COWLING (MODEL G)

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

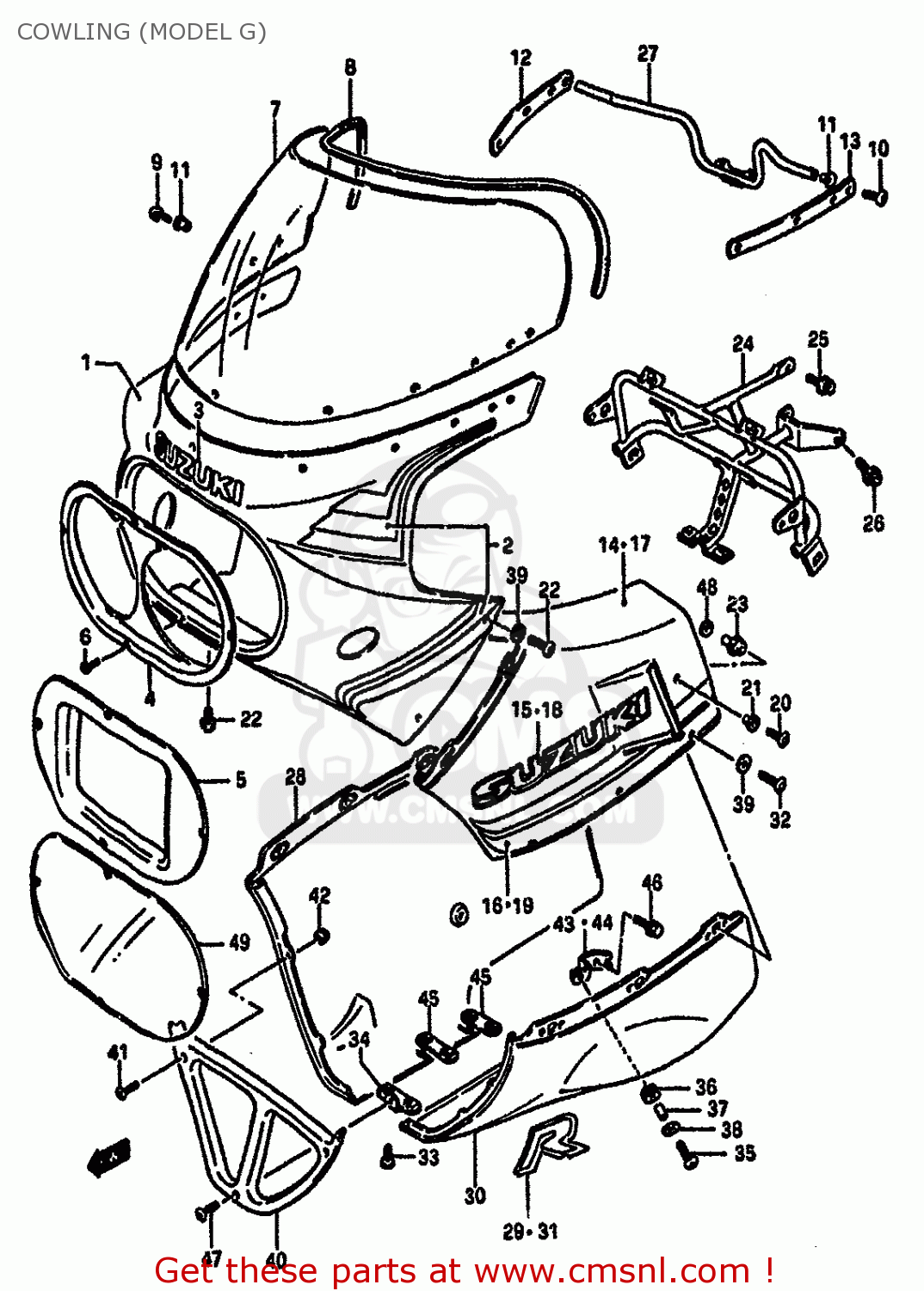

Cowling (model g) diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL G) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL G) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL G) GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440027A417GF
ref: 1-1
TO 94400-27820-7GF
COWLING SET
€ 881.50
1-2
9440027A417JK
ref: 1-2
TO 94400-27820-7JK
COWLING SET
€ 881.50
1-3
9440027A517GF
ref: 1-3
E18,E34,TO 94400-278
BODY ASSY,COWLING (WHITE/BLUE)
€ 881.50
1-4
9440027A517JK
ref: 1-4
E18,E34,TO 94400-278
BODY ASSY,COWLING (BLACK/RED)
€ 881.50
2-1
6819027A117UC
ref: 2-1
FOR 7GF
TAPE SET,COWLING
6819027A117UC
€ 100.50
2-2
6819027A117VE
ref: 2-2
FOR 7JK
TAPE SET,COWLING
€ 69.00
3
6827104A00742
ref: 3
EMBLEM,LEG SHIELD
6827104A00742
€ 13.50
4
9443527A00291
ref: 4
COVER,COWLING FR
9443527A00291
€ 35.00
5-1
9443527A2019F
ref: 5-1
E18,E34,FOR 7GF
COVER,FRONT (BLUE)
€ 42.00
5-2
9443527A2022P
ref: 5-2
E18,E34,FOR 7JK
COVER,FRONT (RED)
9443527A2022P
€ 42.00
6
0354104125
ref: 6
SCREW
0354104125
€ 1.50
7
9461106B01
ref: 7
WINDSCREEN
€ 457.50
8-1
9463127A00
ref: 8-1
MOLDING,SCREEN
9463127A00
€ 15.00
8-2
9463127A10
ref: 8-2
E17
MOLDING
€ 14.00
9
0913905025
ref: 9
SCREW(5X14)
0913905025
€ 2.00
10
0913905032
ref: 10
SCREW(5X18)
0913905032
€ 2.50
11
9461927A00
ref: 11
NUT,COWLING SCREEN
9461927A00
€ 6.50
12
9452927A00
ref: 12
PLATE,RR VIEW MIRROR,R
9452927A00
€ 6.00
13
9453927A00
ref: 13
PLATE,RR VIEW MIRROR,L
9453927A00
€ 4.50
14-1
9443027A4014L
ref: 14-1
FOR 7GF
COVER ASSEMBLY,COWLING
9443027A4014L
€ 304.00
14-2
9443027A40019
ref: 14-2
FOR 7JK
COVER ASSEMBLY,COWLING
9443027A40019
€ 304.00
14-3
9443027A5014L
ref: 14-3
E39,FOR 7GF
COVER ASSEMBLY,COWLING
€ 304.00
14-4
9443027A50019
ref: 14-4
E39,FOR 7JK
COVER ASSEMBLY,COWLING
€ 304.00
15
681113130066P
ref: 15
EMBLEM
681113130066P
€ 24.00
16-1
6868027A2181F
ref: 16-1
FOR 14L
TAPE SET,COWLING SIDE,RIGHT
6868027A2181F
€ 23.50
16-2
6868027A2165G
ref: 16-2
FOR 019
TAPE SET,COWL SIDE RH
€ 18.00
17-1
9444027A4014L
ref: 17-1
FOR 7GF
COVER,COWLING SIDE,LEFT
9444027A4014L
€ 264.00
17-2
9444027A40019
ref: 17-2
FOR 7JK
COVER,COWLING SIDE,LEFT
€ 264.00
17-3
9444027A5014L
ref: 17-3
E39,FOR 7GF
COVER,COWLING SIDE,LEFT
€ 264.00
17-4
9444027A50019
ref: 17-4
E39,FOR 7JK
COVER,COWLING SIDE,LEFT
€ 264.00
18
681113130066P
ref: 18
EMBLEM
681113130066P
€ 24.00
19-1
6869027A2181F
ref: 19-1
FOR 14L
TAPE SET,COWLING SIDE,LEFT
€ 50.00
19-2
6869027A2165G
ref: 19-2
FOR 019
TAPE SET,COWL SIDE LH
6869027A2165G
€ 27.00
20
0913906027
ref: 20
SCREW(6X12)
0913906027
€ 3.00
21
0916906033
ref: 21
WASHER
0916906033
€ 1.50
22
0913906030
ref: 22
SCREW(6X16)
0913906030
€ 3.50
23
9457004A00
ref: 23
CUSHION,COWLING
9457004A00
€ 12.50
24
9451027A40
ref: 24
BRACE,COWLING
9451027A40
€ 132.00
25
0712006165
ref: 25
BOLT
€ 2.50
26
0712008165
ref: 26
BOLT
€ 3.00
27
9453027A10
ref: 27
BRACE,COWLING BODY RR
9453027A10
€ 38.00
28-1
9447027A417TG
ref: 28-1
FOR 7GF
COVER,COWLING,LOWER,RIGHT
€ 626.00
28-2
9447027A417JK
ref: 28-2
FOR 7JK
COVER,COWLING,LOWER,RIGHT
9447027A417JK
€ 626.00
29-1
6826127A0073H
ref: 29-1
FOR 7TG
EMBLEM
6826127A0073H
€ 27.00
29-2
6826127A0060D
ref: 29-2
FOR 7JK
EMBLEM
6826127A0060D
€ 22.50
30-1
9448027A407TG
ref: 30-1
FOR 7GF
COVER,COWLING,LOWER,LEFT
9448027A407TG
€ 626.00
30-2
9448027A407JK
ref: 30-2
FOR 7JK
COVER,COWLING,LOWER,LEFT
9448027A407JK
€ 626.00
31-1
6826127A1073H
ref: 31-1
FOR 7TG
EMBLEM
€ 27.00
31-2
6826127A1060D
ref: 31-2
FOR 7JK
EMBLEM
€ 22.50
32
0913906030
ref: 32
SCREW(6X16)
0913906030
€ 3.50
33
0913906039
ref: 33
SCREW(6X16)
0913906039
€ 2.50
34
9449006B00
ref: 34
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
35
0913906028
ref: 35
SCREW(6X20)
0913906028
€ 3.50
36
0932009016
ref: 36
CUSHION
0932009016
€ 2.50
37
0918006152
ref: 37
SPACER
0918006152
€ 3.00
38
0916006056
ref: 38
WASHER(6.5X18X1)
0916006056
€ 2.00
39
0916107005
ref: 39
WASHER
0916107005
€ 3.00
40-1
9447506B0114L
ref: 40-1
FOR 7GF
COVER,COWLING,LOWER,FRONT
€ 121.50
40-2
9447506B01019
ref: 40-2
FOR 7JK
COVER,COWLING,LOWER,FRONT
9447506B01019
€ 121.50
41
0913905025
ref: 41
SCREW(5X14)
0913905025
€ 2.00
42
0831626055
ref: 42
NUT
0831626055
€ 2.00
43
9458027A00
ref: 43
BRACE,COWLING LWR,R
9458027A00
€ 10.00
44
9459027A00
ref: 44
BRACE,COWLING LWR,L
9459027A00
€ 6.50
45
9449306B00
ref: 45
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
46
0151706128
ref: 46
BOLT
€ 2.50
47
0913906030
ref: 47
SCREW(6X16)
0913906030
€ 3.50
48
0832131064
ref: 48
WASHER
0832131064
€ 2.00
49
9441927A00
ref: 49
OPT
COVER,HEADLAMP
9441927A00
€ 131.50
