STARTING MOTOR

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

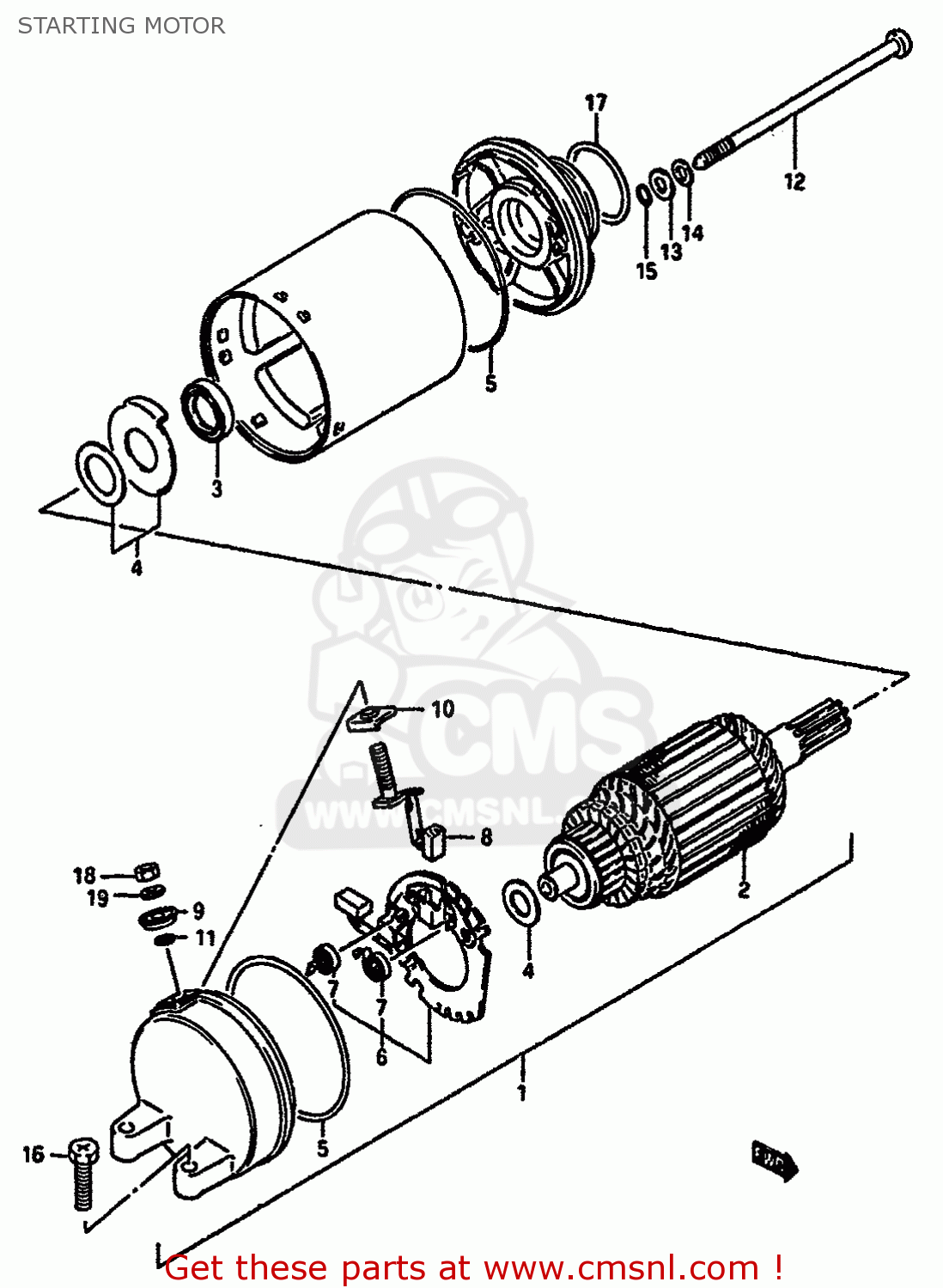

Starting motor diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

STARTING MOTOR GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STARTING MOTOR GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STARTING MOTOR GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3110027A00
ref: 1
MOTOR ASSEMBLY,STARTING
3110027A00
€ 530.00
2
3131027A00
ref: 2
ARMATURE
€ 222.00
3
3115343400
ref: 3
SEAL,OIL
3115343400
€ 21.50
4
3117043400
ref: 4
SHIM SET,STARTING MOTOR
3117043400
€ 4.00
5
3126444110
ref: 5
O RING
3126444110
€ 8.50
6
3113244110
ref: 6
HOLDER,BRUSH
€ 51.00
7
3113565010
ref: 7
SPRING
3113565010
€ 3.50
8
3113038300
ref: 8
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 14.00
9
3117238300
ref: 9
BUSHING
3117238300
€ 4.50
10
3117138300
ref: 10
BUSH,B
3117138300
€ 6.50
11
3114338300
ref: 11
O RING
3114338300
€ 4.00
12
3128105310
ref: 12
BOLT
€ 9.50
13
3116105310
ref: 13
WASHER
€ 2.50
14
0832121055
ref: 14
WASHER,LOCK
0832121055
€ 3.00
15
3115638300
ref: 15
O RING
3115638300
€ 3.50
16
0912806024
ref: 16
SCREW (6X25)
0912806024
€ 3.00
17
0928024003
ref: 17
O RING(D:3,ID:24.5)
0928024003
€ 2.00
18
0831011066
ref: 18
NUT
€ 2.50
19
0832121066
ref: 19
WASHER,LOCK
0832121066
€ 2.50
