FRONT LH DAMPER

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

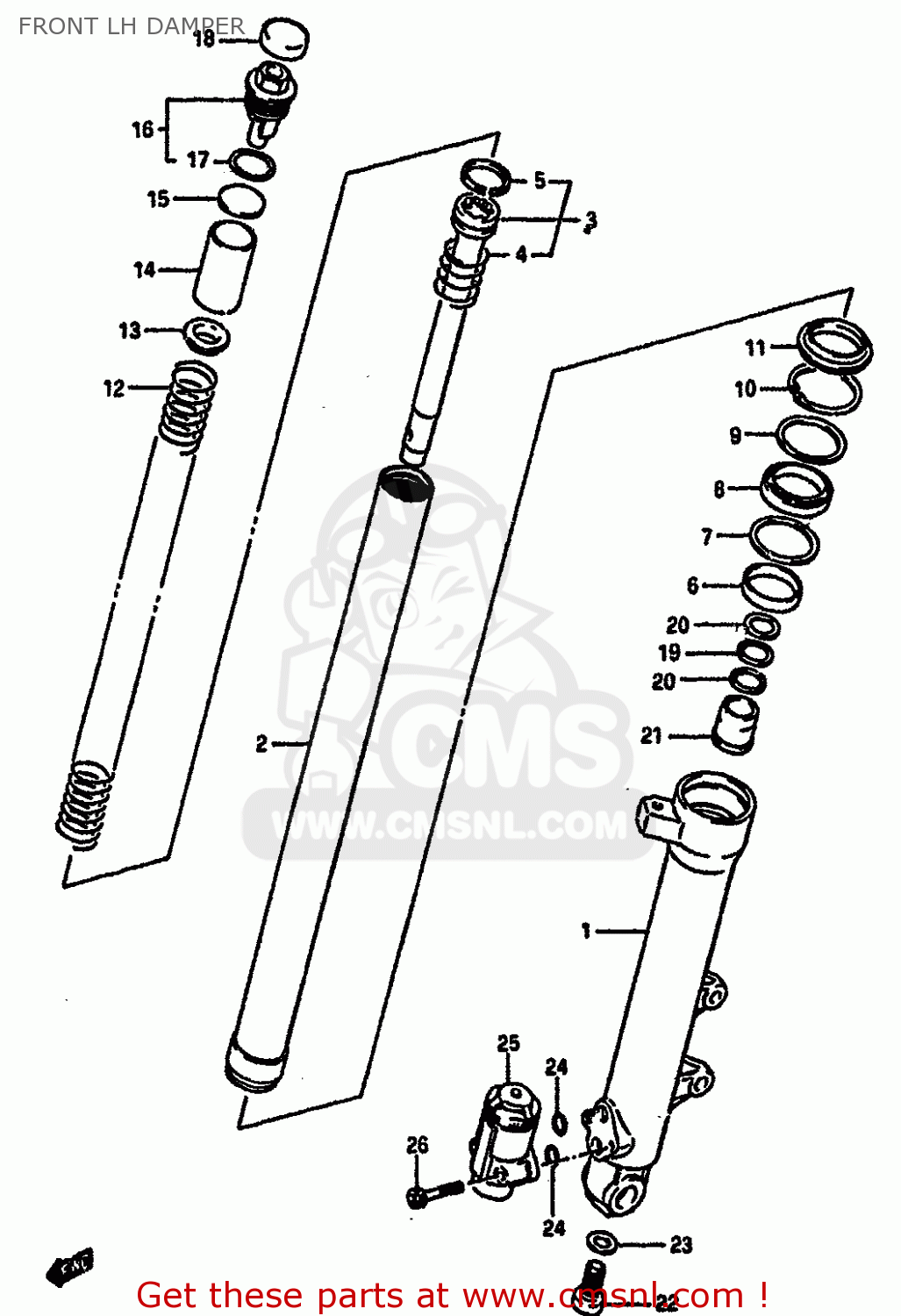

Front lh damper diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

FRONT LH DAMPER GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRONT LH DAMPER GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRONT LH DAMPER GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
0
5110427A00
ref: 0
MODEL F/G
DAMPER ASSEMBLY,LEFT (PDF)
€ 826.00
0
5110427A80
ref: 0
MODEL H
DAMPER ASSEMBLY,LEFT
€ 768.50
1-1
5114027A00
ref: 1-1
MODEL F/G
TUBE,FORK,LEFT,OUTER
€ 439.00
1-2
5114027A80
ref: 1-2
MODEL H
TUBE,OUTER,LEFT
€ 332.50
2
5111027A00
ref: 2
TUBE,FORK INNER
5111027A00
€ 298.00
3
5114627A00
ref: 3
CYLINDER,FRONT FORK
€ 0.00
4
5117727A00
ref: 4
SPRING,FORK REBOUND
€ 0.00
5
5119624A00
ref: 5
RING,FR FORK PISTON
5119624A00
€ 6.50
6
5116705A00
ref: 6
METAL,SLIDE
5116705A00
€ 20.50
7
5115805A00
ref: 7
WASHER,FORK OIL SEAL
5115805A00
€ 5.00
8
5115305A00
ref: 8
OIL SEAL,FRONT FORK
5115305A00
€ 22.00
9
5115827A00
ref: 9
WASHER,FORK OIL SEAL
5115827A00
€ 6.00
10
5115649440
ref: 10
RING,OIL SEAL STOPPER
5115649440
€ 5.50
11
5117305A00
ref: 11
DUST SEAL,FRONT FORK
5117305A00
€ 18.50
12
5117127A00
ref: 12
SPRING,FRONT FORK
€ 65.00
13
5117227A00
ref: 13
WASHER
€ 5.50
14
5117627A00
ref: 14
SPACER
5117627A00
€ 9.00
15
5119227A00
ref: 15
WASHER,FR FORK SPRING
5119227A00
€ 5.50
16
5135127A00
ref: 16
CAP,FORK INNER TUBE
5135127A00
€ 48.50
17
5111724A00
ref: 17
O RING
5111724A00
€ 6.00
18
5118900A00
ref: 18
CAP,FORK INNER TUBE
5118900A00
€ 8.50
19
5112327A00
ref: 19
WASHER,OIL LOCK PIECE
5112327A00
€ 4.50
20
5112527A00
ref: 20
SPRING,FORK OIL LOCK PIECE
5112527A00
€ 4.50
21
5119527A00
ref: 21
PIECE,OIL LOCK
5119527A00
€ 24.50
22
5114714200
ref: 22
BOLT(14X25)
5114714200
€ 5.50
23
5114814200
ref: 23
GASKET (NAS)
5114814200
€ 2.00
24
5179900A00
ref: 24
O RING
5179900A00
€ 5.50
25
5177027A00
ref: 25
PDF ASSEMBLY
5177027A00
€ 150.50
26
0711006408
ref: 26
BOLT
€ 2.50
