FOOTREST

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

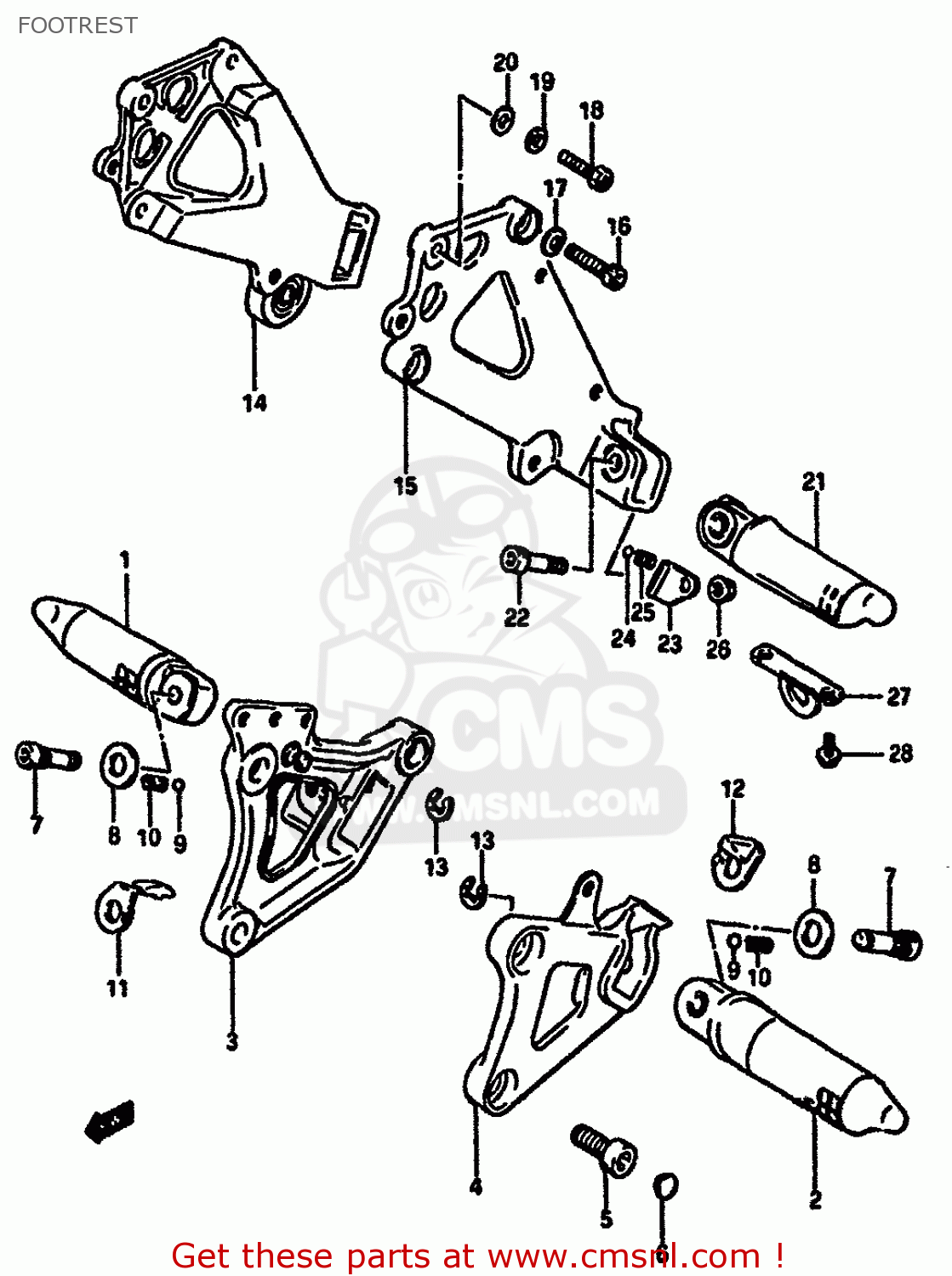

Footrest diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

FOOTREST GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4350127A00
ref: 1-1
MODEL F/G
FOOTREST ASSEMBLY,FRONT,RIGHT
€ 122.50
1-2
4350127A02
ref: 1-2
MODEL H
FOOTREST ASSY,FR,R
4350127A02
€ 122.50
2-1
4350227A00
ref: 2-1
MODEL F/G
FOOTREST ASSEMBLY,FRONT,LEFT
4350227A00
€ 65.00
2-2
4350227A02
ref: 2-2
MODEL H
FOOTREST ASSY,FR,L
4350227A02
€ 65.00
3
4351027A00
ref: 3
BRACKET,FOOTREST,R
4351027A00
€ 115.50
4
4352227A00
ref: 4
BRACKET,FOOTREST,L
4352227A00
€ 85.00
5
0711010258
ref: 5
BOLT
€ 3.00
6
4357534500
ref: 6
CAP
4357534500
€ 1.50
7
4352927A00
ref: 7
BOLT,FR FOOTREST
4352927A00
€ 6.50
8
4359627A00
ref: 8
MODEL F/G
PLATE,SPRING STOP
€ 2.50
9
0611207004
ref: 9
MODEL F/G
BALL
€ 1.50
10
0944005003
ref: 10
MODEL F/G
SPRING
0944005003
€ 1.50
11
4358006B10
ref: 11
MODEL H
CUSHION,FRONT FOOTREST,RIGHT
€ 10.50
12
4359006B10
ref: 12
MODEL H
CUSHION,FRONT FOOTREST,LEFT
€ 10.50
13
0833211068
ref: 13
E RING 6MM
0833211068
€ 2.00
14-1
4381027A00
ref: 14-1
MODEL F/G
BRACKET
€ 100.50
14-2
4381027A01
ref: 14-2
MODEL H
BRACKET,PILLION FOOTREST
4381027A01
€ 100.50
15-1
4382127A00
ref: 15-1
MODEL F/G
BRACKET
€ 71.50
15-2
4382127A01
ref: 15-2
MODEL H
BRACKET,PILLION FOOTREST
4382127A01
€ 71.50
16
0711006257
ref: 16
BOLT
€ 2.50
17
0916406009
ref: 17
WASHER
€ 2.50
18
0110706307
ref: 18
BOLT 6X30
€ 2.50
19
0832121067
ref: 19
WASHER,LOCK
0832121067
€ 2.50
20
0832221067
ref: 20
WASHER
0832221067
€ 2.00
21-1
4360127A00
ref: 21-1
FOOTREST ASSY,PILLION RH
4360127A00
€ 55.50
21-2
4360227A00
ref: 21-2
FOOTREST ASSY,PILLION LH
4360227A00
€ 52.00
22
4364204A00
ref: 22
BOLT,PILLION FOOTREST
4364204A00
€ 4.50
23-1
4363504A00
ref: 23-1
PLATE,SPRING STOP,RIGHT
4363504A00
€ 9.50
23-2
4373504A00
ref: 23-2
PLATE,SPRING STOP LH
4373504A00
€ 4.00
24
0611207004
ref: 24
BALL
€ 1.50
25
0944005003
ref: 25
SPRING
0944005003
€ 1.50
26
0831931065
ref: 26
NUT
0831931065
€ 2.50
27
4361927A00
ref: 27
HOOK
4361927A00
€ 6.00
28
0215204128
ref: 28
SCREW
0215204128
€ 2.00
