HEADLAMP (E18,E34)

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

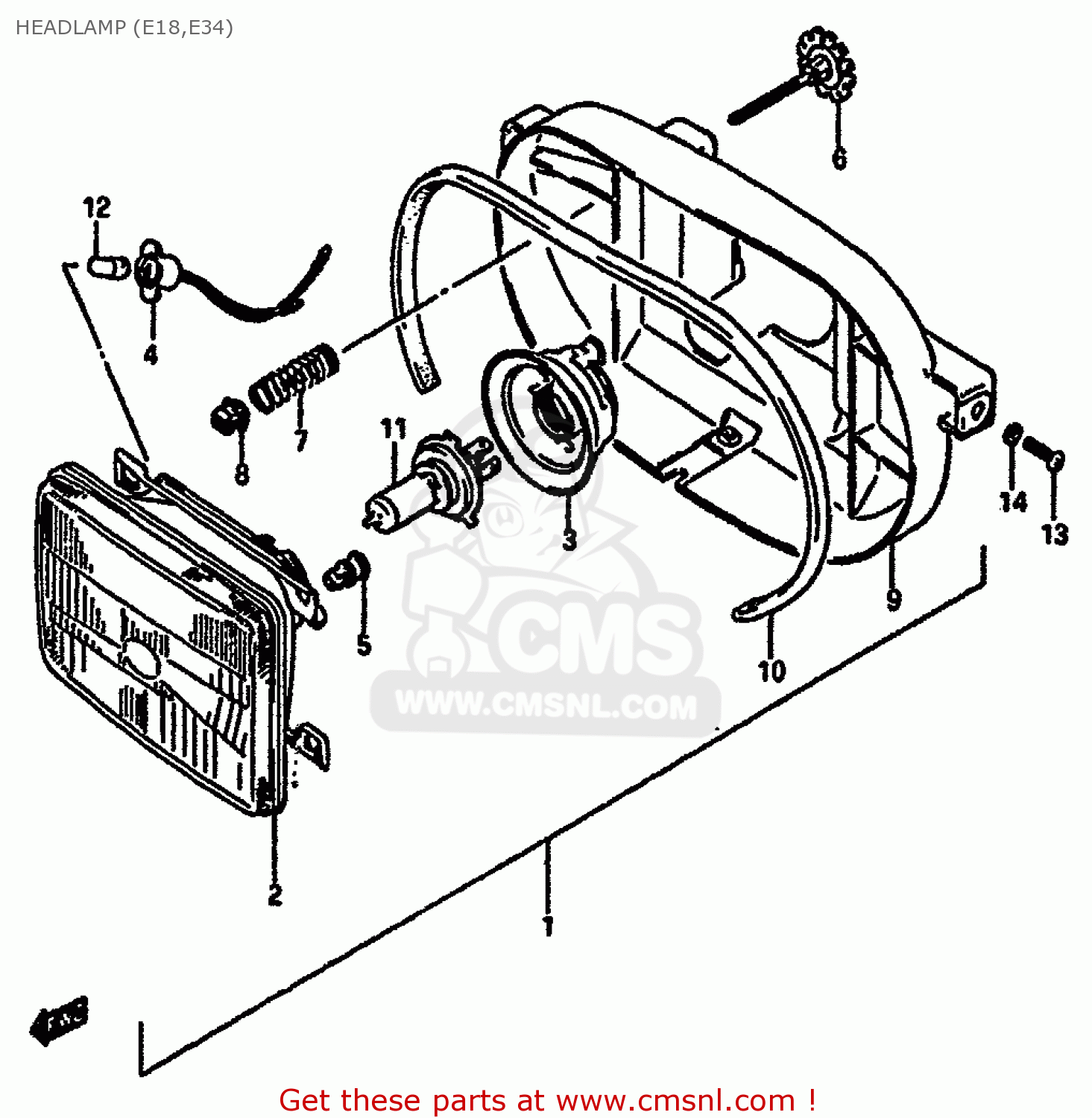

Headlamp (e18,e34) diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3510027A82999
ref: 1

HEADLAMP ASSY

€ 208.50

3512127A80
ref: 2

UNIT

€ 103.50

3517320A01
ref: 3

COVER,SOCKET

€ 14.50

3611827A00
ref: 4

SOCKET

€ 11.50

3516204A00
ref: 5

SCREW,SPHERICAL

€ 2.00

3515327A00
ref: 6

SCREW,ADJUSTER

€ 3.50

3515404A00
ref: 7

SPRING

€ 4.00

3515227A00
ref: 8

NUT

€ 3.00

3524027A81
ref: 9

HOUSING

€ 61.50

3524227A00
ref: 10

GASKET (NAS)

€ 12.50

0947112060
ref: 11

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 12

BULB(12V4W)

€ 6.00

0211206166
ref: 13

SCREW

€ 2.00

0832121066
ref: 14

WASHER,LOCK

€ 2.00
