OIL PUMP

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

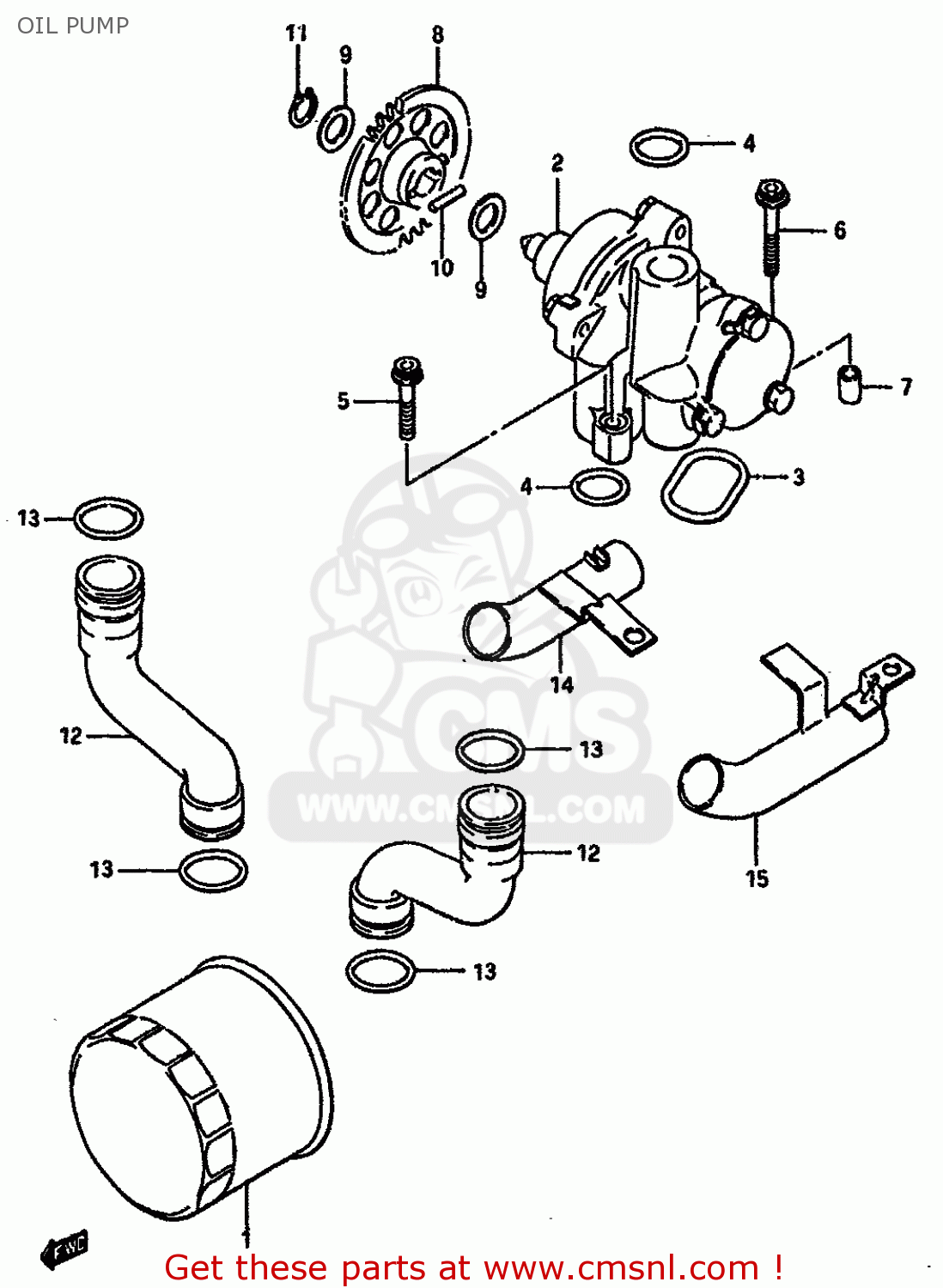

Oil pump diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

OIL PUMP GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
OIL PUMP GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
OIL PUMP GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1651005A00
ref: 1
FILTER ASSY,ENGINE OIL
1651005A00
€ 8.50
2
1640027A00
ref: 2
PUMP ASSEMBLY,OIL
€ 348.50
3
1649127A01
ref: 3
O RING,OIL PUMP
1649127A01
€ 13.50
4
0928018009
ref: 4
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
5
0712006308
ref: 5
BOLT
€ 2.50
6
0712006358
ref: 6
BOLT
€ 3.50
7
0421109129
ref: 7
PIN
0421109129
€ 2.00
8-1
1633127A01
ref: 8-1
GEAR,OIL PUMP DRIVEN
€ 54.00
8-2
1633227A01
ref: 8-2
GEAR,OIL PUMP DRIVEN
€ 37.50
9
0822112205
ref: 9
SHIM
0822112205
€ 1.50
10
0926105006
ref: 10
PIN(5X18)
0926105006
€ 1.50
11
0833131128
ref: 11
CIRCLIP
0833131128
€ 2.00
12
1648027A03
ref: 12
HOSE,OIL
€ 47.00
13-1
0928022015
ref: 13-1
~E.NO.131290 TO 0928
O-RING
€ 5.50
13-2
0928022016
ref: 13-2
E.NO.131291~
O RING(D:3.7,ID:21.7)
0928022016
€ 5.50
14
1653027A00
ref: 14
PIPE,OIL,OUTLET,UNDER
€ 22.00
15
1654027A00
ref: 15
PIPE,OIL,OUTLET,UNDER
€ 23.00
