OIL PAN

GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

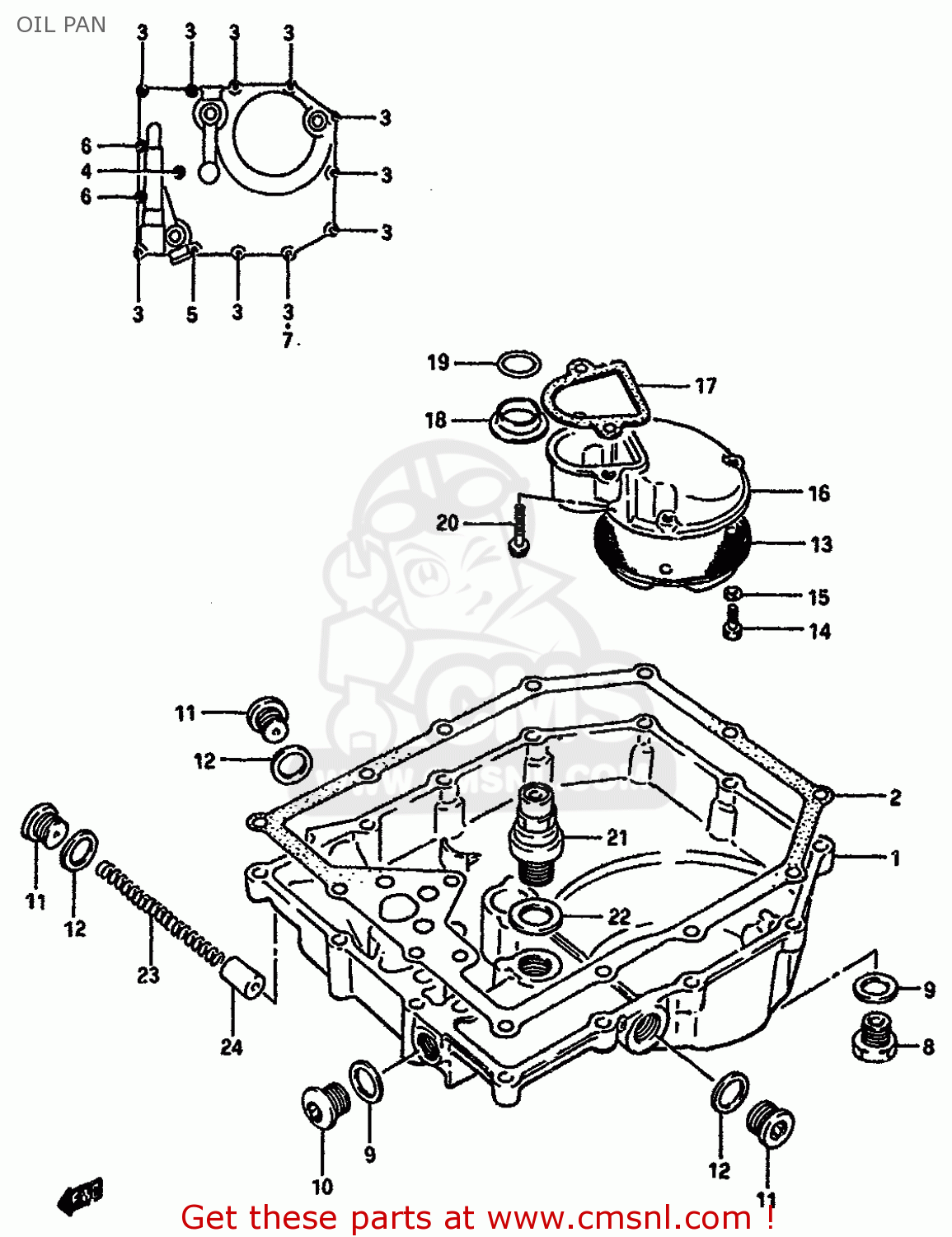

Oil pan diagram GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

OIL PAN GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
OIL PAN GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
OIL PAN GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1151127A01
ref: 1
PAN,OIL
1151127A01
€ 156.00
2
1148927A00
ref: 2
GASKET,OIL PAN (NAS)
1148927A00
€ 23.00
3
0711006255
ref: 3
BOLT
0711006255
€ 3.00
4
0711006355
ref: 4
BOLT
€ 3.50
5
0711006405
ref: 5
BOLT
0711006405
€ 3.50
6
0711006455
ref: 6
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
8
0924714001
ref: 8
PLUG
0924714001
€ 5.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
10
0924814004
ref: 10
PLUG
0924814004
€ 5.00
11
0924816010
ref: 11
PLUG
0924816010
€ 4.50
12
0916816D02
ref: 12
GASKET
€ 0.00
13
1652009300
ref: 13
STRAINER,ENGINE OIL
1652009300
€ 14.00
14
0110706127
ref: 14
BOLT
0110706127
€ 2.00
15
0832121067
ref: 15
WASHER,LOCK
0832121067
€ 2.50
16
1652527A00
ref: 16
PROTECTOR,OIL STRAINER
1652527A00
€ 20.50
17
1652827A02
ref: 17
GASKET,OIL STRAINER PROTECTOR (NAS)
1652827A02
€ 9.00
18
1652927A01
ref: 18
GASKET,OIL OUTLET (NAS)
1652927A01
€ 2.00
19
0928018009
ref: 19
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
20
0151706258
ref: 20
BOLT
0151706258
€ 2.50
21
1644027A00
ref: 21
VALVE ASSEMBLY,OIL RELIEF
1644027A00
€ 42.00
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
23
0944009023
ref: 23
SPRING
0944009023
€ 3.00
24
1644234301
ref: 24
PLUNGER,OIL CONTROLL
1644234301
€ 16.00
