BATTERY HOLDER (SFV650AL4 E33)

SFV650A GLADIUS 2014 (L4) USA (E03)

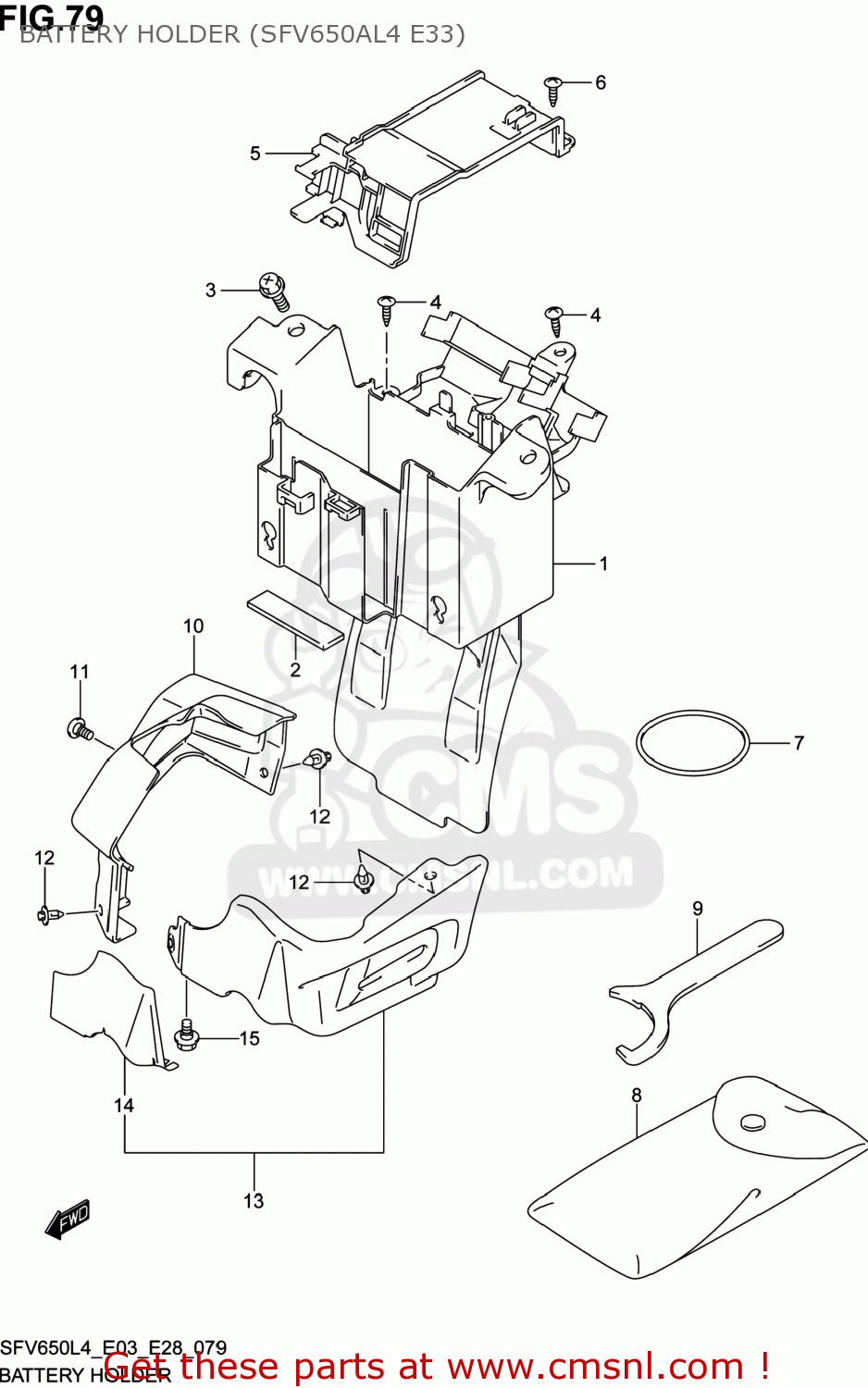

Battery holder (sfv650al4 e33) diagram SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

4743144H00
ref: 1

HOLDER,BATTERY

€ 34.00

5314540A00
ref: 2

CUSHION,FR FENDER

€ 1.50

0911306001
ref: 3

BOLT(6X16)

€ 3.00

035410516A
ref: 4

SCREW

€ 1.50

4743244H00
ref: 5

LID,BATTERY HOLDER

€ 8.50

035410516A
ref: 6

SCREW

€ 1.50

0928057003
ref: 7

O RING(D:3.5,ID:56.5)

€ 5.50

0980021056
ref: 8

TOOL ASSY

€ 31.50

0982200003
ref: 9

CLAMP

€ 6.00

4744144H00
ref: 10

COVER,HYDR ABS UNIT,R

€ 26.50

0913906144
ref: 11

SCREW(6X12)

€ 3.00

09409063145PK
ref: 12

CLIP(BLACK)

€ 3.50

4745044H00
ref: 13

COVER,HYDR ABS UNIT,L

€ 39.00

4745244H00
ref: 14

SHIELD,ABS UNIT COVER,L

€ 8.50

0911106107
ref: 15

BOLT(6X12)

€ 3.00
