CYLINDER HEAD (FRONT)

SFV650A GLADIUS 2014 (L4) USA (E03)

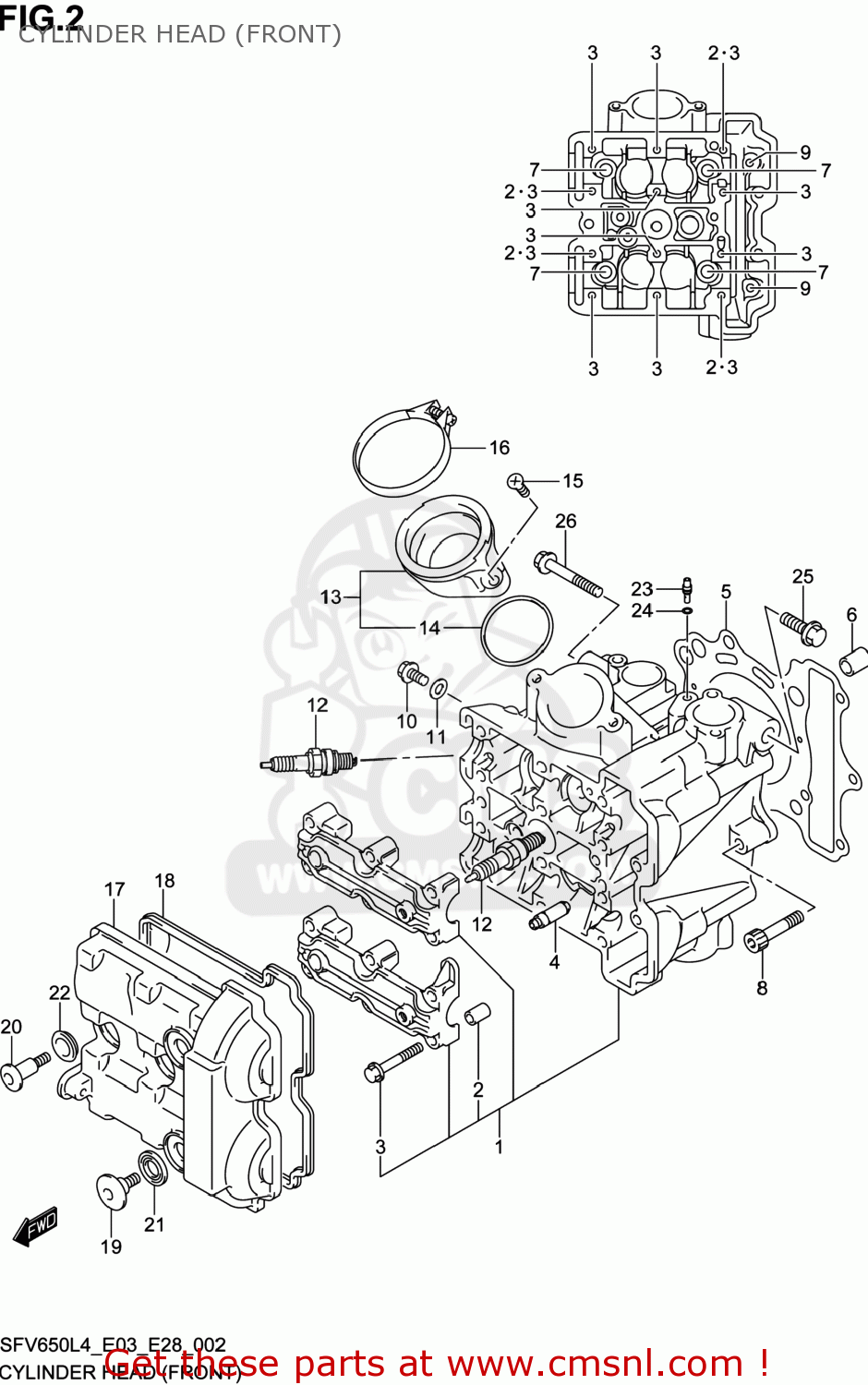

Cylinder head (front) diagram SFV650A GLADIUS 2014 (L4) USA (E03)

CYLINDER HEAD (FRONT) SFV650A GLADIUS 2014 (L4) USA (E03)
CYLINDER HEAD (FRONT) SFV650A GLADIUS 2014 (L4) USA (E03)
CYLINDER HEAD (FRONT) SFV650A GLADIUS 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1110144H00
ref: 1
HEAD ASSY,CYLINDER FR
1110144H00
€ 906.50
2
0920608001
ref: 2
PIN(6.2X8X11)
0920608001
€ 2.00
3
0910306266
ref: 3
BOLT(6X40)
0910306266
€ 2.50
4
1111518D72
ref: 4
GUIDE,VALVE
1111518D72
€ 18.50
5
1114120F00
ref: 5
GASKET,CYLINDER HEAD (NAS)
1114120F00
€ 31.50
6
0421113189
ref: 6
PIN
0421113189
€ 2.50
7
1111744H00
ref: 7
BOLT,CYLINDER HEAD(L:160)
1111744H00
€ 12.00
8
071200640A
ref: 8
BOLT
€ 3.50
9
0910306103
ref: 9
BOLT(6X70)
0910306103
€ 2.50
10
0910306222
ref: 10
BOLT(6X12)
0910306222
€ 2.00
11
0916806023
ref: 11
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
12-1
0948200556
ref: 12-1
PLUG,SPARK(CR8EIA-9)
€ 20.00
12-2
0948200555
ref: 12-2
PLUG,SPARK(IU24D)
€ 20.00
12-3
0948200558
ref: 12-3
PLUG,SPARK(CR9EIA-9)
0948200558
€ 21.00
12-3
0948200558
ref: 12-3
PLUG,SPARK(CR9EIA-9)
0948200558
€ 21.00
12-4
0948200557
ref: 12-4
PLUG,SPARK(IU27D)
0948200557
€ 21.00
12-4
0948200557
ref: 12-4
PLUG,SPARK(IU27D)
0948200557
€ 21.00
12-5
0948200554
ref: 12-5
PLUG,SPARK(CR7EIA-9)
0948200554
€ 13.50
12-5
0948200554
ref: 12-5
PLUG,SPARK(CR7EIA-9)
0948200554
€ 13.50
13
1310117G10
ref: 13
PIPE ASSY,INTAKE FR
€ 42.00
14
0928046006
ref: 14
O RING(D:2.4,ID:47X42)
0928046006
€ 8.00
15
021220616B
ref: 15
SCREW
021220616B
€ 2.00
16
1382740H01
ref: 16
CLAMP,INTAKE PIPE
€ 11.00
17
1117119F20
ref: 17
COVER,CYLINDER HEAD FR
€ 128.50
18
1117319F01
ref: 18
GASKET,CYLINDER HEAD COVER (NAS)
1117319F01
€ 26.50
19
0910607009
ref: 19
BOLT(7X17.5)
0910607009
€ 4.50
20
0910607010
ref: 20
BOLT(7X31)
0910607010
€ 4.50
21
1119127E00
ref: 21
WASHER,CYL HEAD COVER
1119127E00
€ 4.50
22
1119213E00
ref: 22
CUSHION,HEAD COVER BOLT
1119213E00
€ 4.50
23
0949380005
ref: 23
JET(8)
0949380005
€ 12.00
24
0928004004
ref: 24
O RING(D:1.2,ID:4)
0928004004
€ 2.00
25
0910310378
ref: 25
BOLT(10X25)
0910310378
€ 2.50
26
015501070A
ref: 26
BOLT
015501070A
€ 2.50
