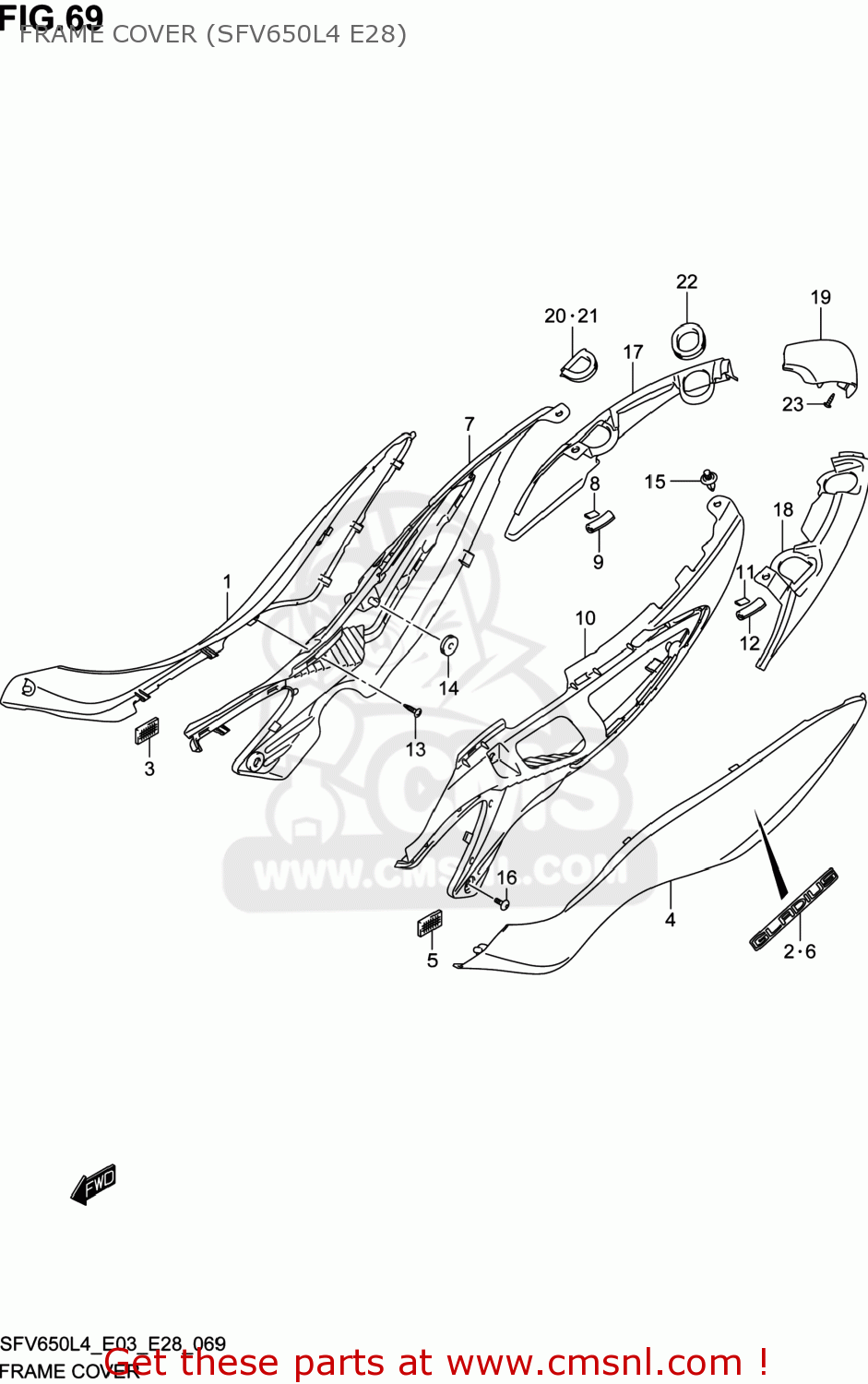

FRAME COVER (SFV650L4 E28)

SFV650A GLADIUS 2014 (L4) USA (E03)

Frame cover (sfv650l4 e28) diagram SFV650A GLADIUS 2014 (L4) USA (E03)

FRAME COVER (SFV650L4 E28) SFV650A GLADIUS 2014 (L4) USA (E03)

FRAME COVER (SFV650L4 E28) SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711144H00YLF
ref: 1-1

COVER,FRAME,R(GRAY)

€ 117.00

1-2

4711144H00YKY
ref: 1-2

COVER,FRAME,R(BLUE)

€ 99.50

1-3

4711144H00YKV
ref: 1-3

COVER,FRAME,R(BLACK)

€ 95.00

2-1

6813144H00YVZ
ref: 2-1

EMBLEM,FRAME COVER

€ 10.00

2-2

6813144H00YWW
ref: 2-2

EMBLEM,FRAME COVER

€ 10.00

2-3

6813144H00DUJ
ref: 2-3

EMBLEM,FRAME COVER

€ 10.00

3

4791237H00
ref: 3

FASTENER,FRAME COVER

€ 8.00

4-1

4721144H00YLF
ref: 4-1

COVER,FRAME,L

€ 100.00

4-2

4721144H00YKY
ref: 4-2

COVER,FRAME,L

€ 102.50

4-3

4721144H00YKV
ref: 4-3

COVER,FRAME,L

€ 95.00

5

4791237H00
ref: 5

FASTENER,FRAME COVER

€ 8.00

6-1

6813144H00YVZ
ref: 6-1

EMBLEM,FRAME COVER

€ 10.00

6-2

6813144H00YWW
ref: 6-2

EMBLEM,FRAME COVER

€ 10.00

6-3

6813144H00DUJ
ref: 6-3

EMBLEM,FRAME COVER

€ 10.00

7

4741144H00291
ref: 7

COVER,FRAME RR,R

€ 31.50

8

4426343E00
ref: 8

TAPE,DRAIN WASHER

€ 3.50

9

9463135F00
ref: 9

MOLDING

€ 3.00

10

4751144H00291
ref: 10

COVER,FRAME RR,L

€ 31.50

11

4426343E00
ref: 11

TAPE,DRAIN WASHER

€ 3.50

12

9463135F00
ref: 12

MOLDING

€ 3.00

13

035410512A
ref: 13

SCREW

€ 2.00

14

0932008028
ref: 14

CUSHION

€ 2.50

15

09409083085ES
ref: 15

CLIP(BLACK)

€ 2.00

16

0913905064
ref: 16

SCREW(5X13)

€ 2.50

17

4731144H00291
ref: 17

COVER,FRAME RR CTR,R

€ 30.00

18

4731244H00291
ref: 18

COVER,FRAME RR CTR

€ 31.00

19

4731344H00291
ref: 19

COVER,FRAME RR CTR RR

€ 15.50

20

4732144H00
ref: 20

CUSHION,COVER RR CTR,R

€ 5.00

21

4732244H00
ref: 21

CUSHION,COVER RR CTR,L

€ 5.00

22

4732344H00
ref: 22

CUSHION,COVER RR CTR RR

€ 7.50

23

035410512A
ref: 23

SCREW

€ 2.00
