REAR CALIPER (SFV650AL4 E33)

SFV650A GLADIUS 2014 (L4) USA (E03)

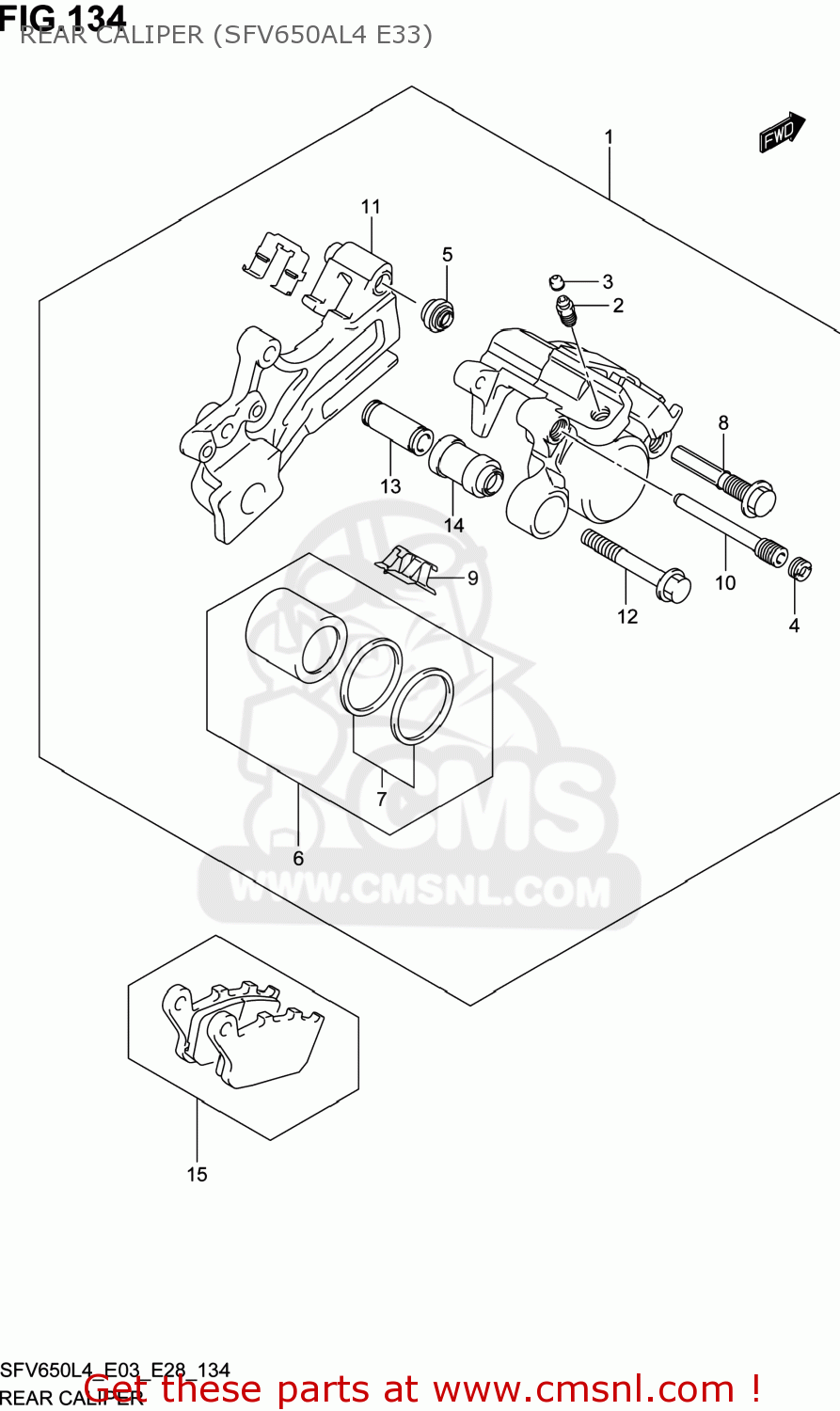

Rear caliper (sfv650al4 e33) diagram SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

6910044H10999
ref: 1

CALIPER ASSY,RR

€ 576.00

5912101A00
ref: 2

BLEEDER

€ 8.50

5912246H00
ref: 3

CAP,BLEEDER

€ 4.50

5914621E10
ref: 4

PLUG,PIN

€ 6.50

5930314500
ref: 5

BOOT

€ 5.50

6910144860
ref: 6

PISTON SET

€ 46.50

6910004820
ref: 7

SEAL SET,PISTON

€ 12.50

6910504F00
ref: 8

BOLT

€ 11.50

6911506G00
ref: 9

SPRING,PAD

€ 7.50

6914140F00
ref: 10

PIN,PAD

€ 17.50

6915044H10
ref: 11

BRACKET

€ 126.50

6918204F00
ref: 12

BOLT

€ 7.50

6918504F00
ref: 13

SLEEVE

€ 12.50

6918604F00
ref: 14

BOOT,SLEEVE

€ 11.00

6910144850
ref: 15

PAD SET (NAS)

€ 54.00
