CRANKCASE
SFV650A GLADIUS 2014 (L4) USA (E03)

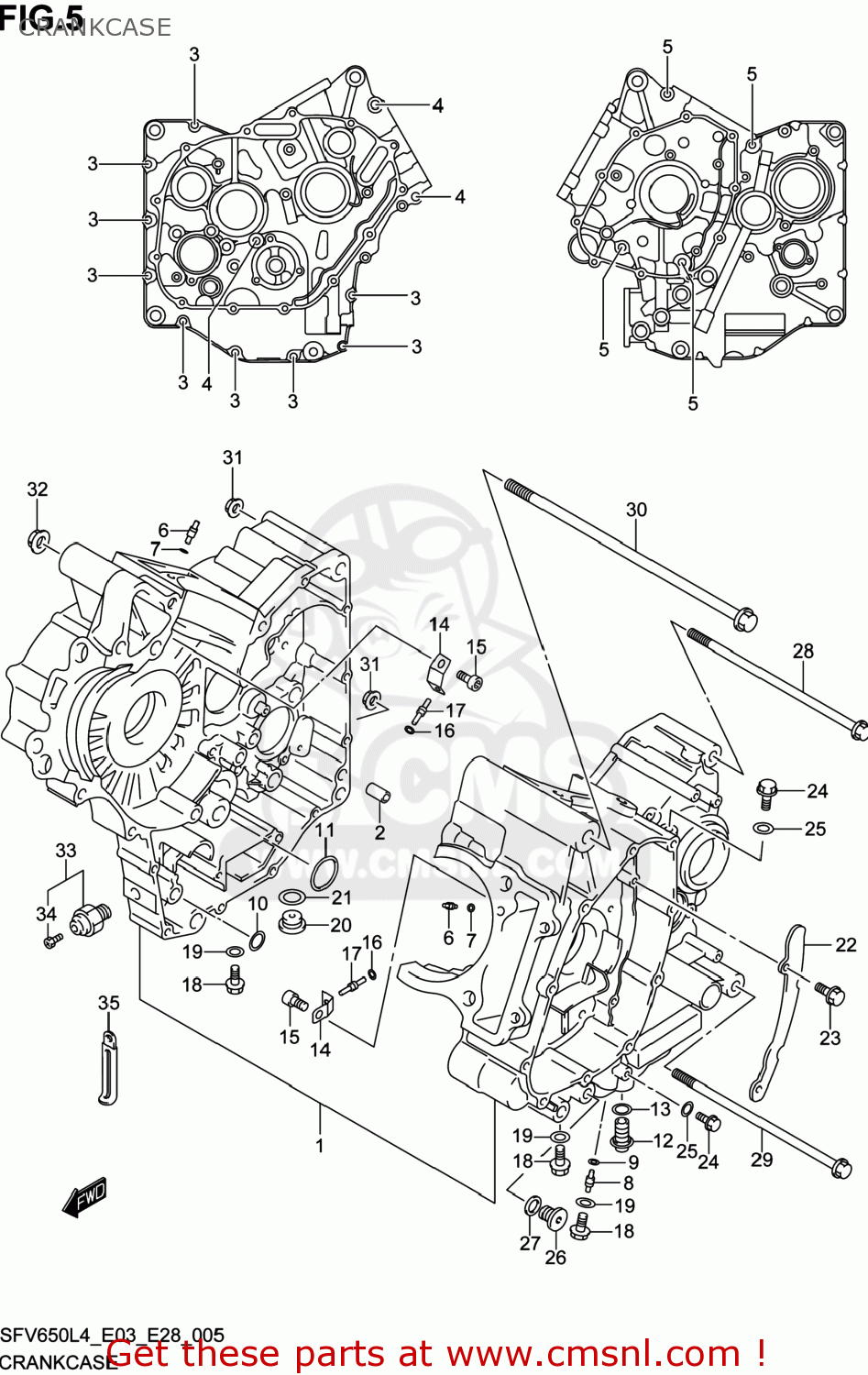

Crankcase diagram SFV650A GLADIUS 2014 (L4) USA (E03)
CRANKCASE SFV650A GLADIUS 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130127850
ref: 1
CRANKCASE SET
€ 1,556.50
2
0920611007
ref: 2
PIN(8.4X11X20)
€ 1.50
3
015470650A
ref: 3
BOLT
€ 2.50
4
071200855A
ref: 4
BOLT
€ 2.50
5
071200880A
ref: 5
BOLT
€ 3.00
6
0949328010
ref: 6
JET,AIR(14)
€ 10.50
7
0928004004
ref: 7
O RING(D:1.2,ID:4)
€ 2.00
8
0949336004
ref: 8
JET,OIL GALLERY(18)
€ 8.00
9
0928004004
ref: 9
O RING(D:1.2,ID:4)
€ 2.00
10
0928012009
ref: 10
O RING(D:1.9,ID:12.6)
€ 2.50
11
0928015007
ref: 11
O RING(D:2.4,ID:15.8)
€ 2.00
12
0924712011
ref: 12
PLUG(12X20)
€ 4.50
13
0916812002
ref: 13
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
14
1643819F00
ref: 14
PLATE,PISTON COOLING JET
€ 2.50
15
0910606075
ref: 15
BOLT(6X12)
€ 2.50
16
0928004004
ref: 16
O RING(D:1.2,ID:4)
€ 2.00
17
0949326007
ref: 17
JET(13)
€ 13.50
18
015500812A
ref: 18
BOLT
€ 2.50
19
0916808016
ref: 19
GASKET(8.2X14X1) (NAS)
€ 1.00
20
0924816012
ref: 20
PLUG,16X8
€ 4.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
€ 2.00
22
1132319F00
ref: 22
PLATE,OIL SEPARATOR
€ 3.00
23
015470612A
ref: 23
BOLT
€ 2.00
24
015470610A
ref: 24
BOLT
€ 2.00
25
0916806023
ref: 25
GASKET(5.8X13X1.2) (NAS)
€ 2.00
26
0924712006
ref: 26
PLUG(12X10)
€ 2.50
27
0916812017
ref: 27
GASKET(12X17X1) (NAS)
€ 2.00
28
0910310041A05
ref: 28
BOLT(10X215)
€ 9.00
29
0910310145
ref: 29
BOLT(10X205)
€ 13.00
30
0910312016
ref: 30
BOLT(12X300)
€ 14.50
31
0915910111
ref: 31
NUT
€ 3.00
32
0915912054
ref: 32
NUT
€ 8.00
33
3782033D10
ref: 33
SWITCH ASSY,OIL PRESSURE
€ 29.00
34
3782233D00
ref: 34
BOLT,OIL PRESSURE SWITCH
€ 3.00
35
0940406429
ref: 35
CLAMP(L:45)
€ 2.50
