SEAT (SFV650AL4 E28)

SFV650A GLADIUS 2014 (L4) USA (E03)

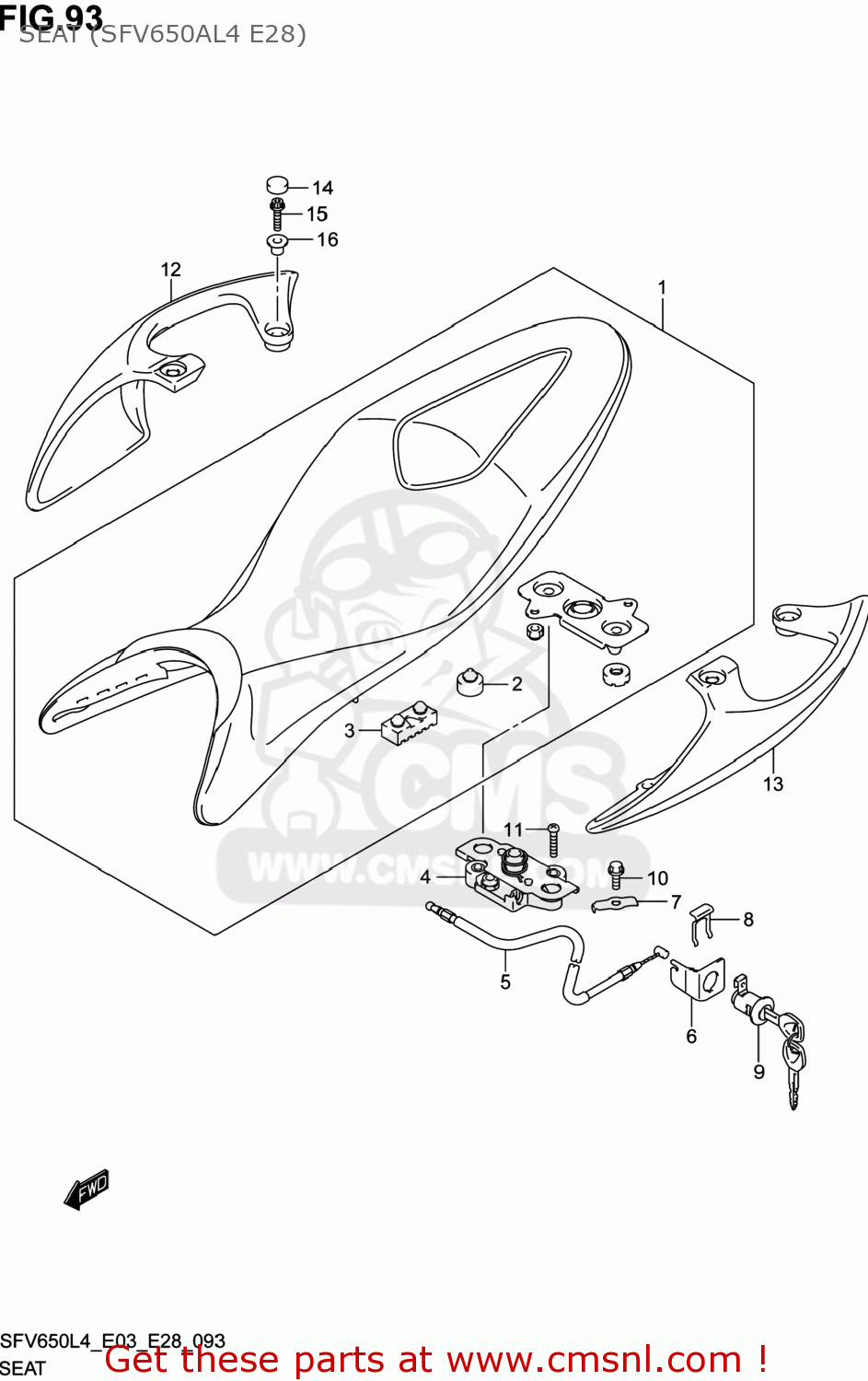

Seat (sfv650al4 e28) diagram SFV650A GLADIUS 2014 (L4) USA (E03)

SEAT (SFV650AL4 E28) SFV650A GLADIUS 2014 (L4) USA (E03)
SEAT (SFV650AL4 E28) SFV650A GLADIUS 2014 (L4) USA (E03)
SEAT (SFV650AL4 E28) SFV650A GLADIUS 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4510044H30JRV
ref: 1
45100-44H10-JRV
SEAT ASSY
€ 423.50
2
0932110011
ref: 2
CUSHION
0932110011
€ 3.00
3
4514942F00
ref: 3
CUSHION
4514942F00
€ 4.50
4
4522015H00
ref: 4
BRACKET,STRIKER SUPPORT
€ 58.50
5
4528044H01
ref: 5
CABLE,SEAT LOCK
€ 17.50
6
4528814F00
ref: 6
GUIDE,SEAT LOCK CABLE
4528814F00
€ 3.00
7
4528844H00
ref: 7
GUIDE,SEAT LOCK CABLE
4528844H00
€ 8.50
8
4528911F00
ref: 8
PLATE,SEAT LOCK ASSY
4528911F00
€ 3.00
9
9570014810
ref: 9
LOCK SET,SEAT
9570014810
€ 75.50
10
015470612A
ref: 10
BOLT
015470612A
€ 2.00
11
021120630A
ref: 11
SCREW
021120630A
€ 2.00
12
4621144H00YVB
ref: 12
HANDLE,PILLION RIDER,R
€ 193.50
12
4621144H00YVB
ref: 12
HANDLE,PILLION RIDER,R
€ 193.50
13
4623144H00YVB
ref: 13
HANDLE,PILLION RIDER,L
€ 136.50
13
4623144H00YVB
ref: 13
HANDLE,PILLION RIDER,L
€ 136.50
14
4627114G00
ref: 14
CAP
4627114G00
€ 3.00
15
0910608151
ref: 15
BOLT(8X25)
0910608151
€ 3.50
16
0916908049
ref: 16
WASHER
0916908049
€ 3.00
