STARTER CLUTCH

SFV650A GLADIUS 2014 (L4) USA (E03)

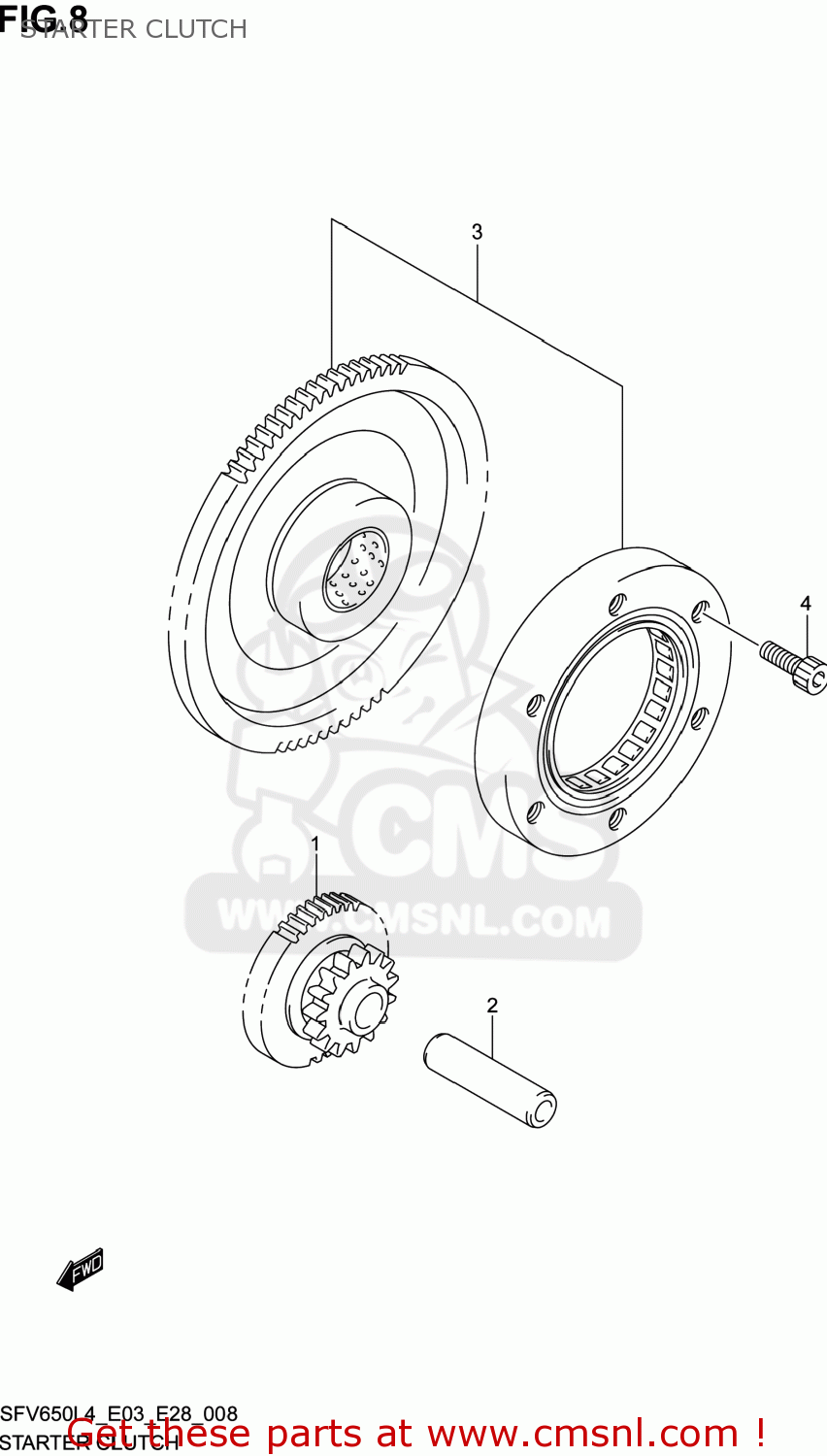

Starter clutch diagram SFV650A GLADIUS 2014 (L4) USA (E03)

STARTER CLUTCH SFV650A GLADIUS 2014 (L4) USA (E03)

STARTER CLUTCH SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261127G00
ref: 1

GEAR,STARTER IDLE

€ 57.50

2

0920612006
ref: 2

PIN(8X12X45.5)

€ 7.50

3

1260006821
ref: 3

CLUTCH SET,STARTER

€ 263.00

4

0910608190
ref: 4

BOLT(8X16)

€ 2.00
