FRAME BODY COVER

SFV650A GLADIUS 2014 (L4) USA (E03)

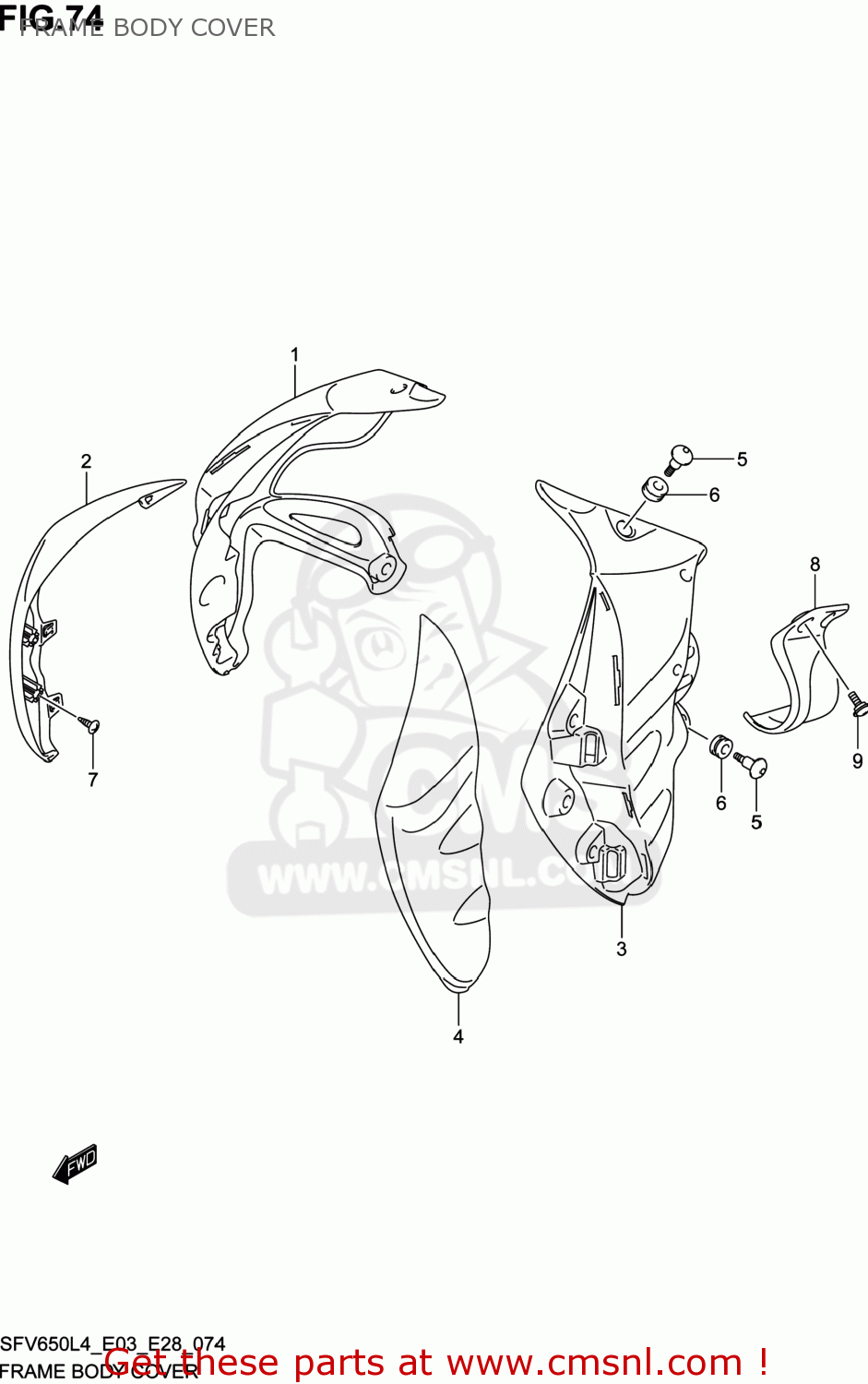

Frame body cover diagram SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

4753144H00
ref: 1

COVER,FRAME BODY,R

€ 34.00

2-1

4753244H00YLF
ref: 2-1

COVER,FRAME BODY,R

€ 62.50

2-2

4753244H00YWW
ref: 2-2

COVER,FRAME BODY,R

€ 62.50

2-3

4753244H00YKV
ref: 2-3

COVER,FRAME BODY,R

€ 62.50

4754144H00
ref: 3

COVER,FRAME BODY,L

€ 32.50

4-1

4754244H00YLF
ref: 4-1

COVER,FRAME BODY,L

€ 62.50

4-2

4754244H00YWW
ref: 4-2

COVER,FRAME BODY,L

€ 62.50

4-3

4754244H00YKV
ref: 4-3

COVER,FRAME BODY,L

€ 62.50

0913906126
ref: 5

SCREW(6X20)

€ 4.00

0932009016
ref: 6

CUSHION

€ 2.50

035410512B
ref: 7

SCREW

€ 2.00

4754344H00
ref: 8

COVER,FRAME BODY RR,L

€ 12.00

0913905064
ref: 9

SCREW(5X13)

€ 2.50
