HEADLAMP

SFV650A GLADIUS 2014 (L4) USA (E03)

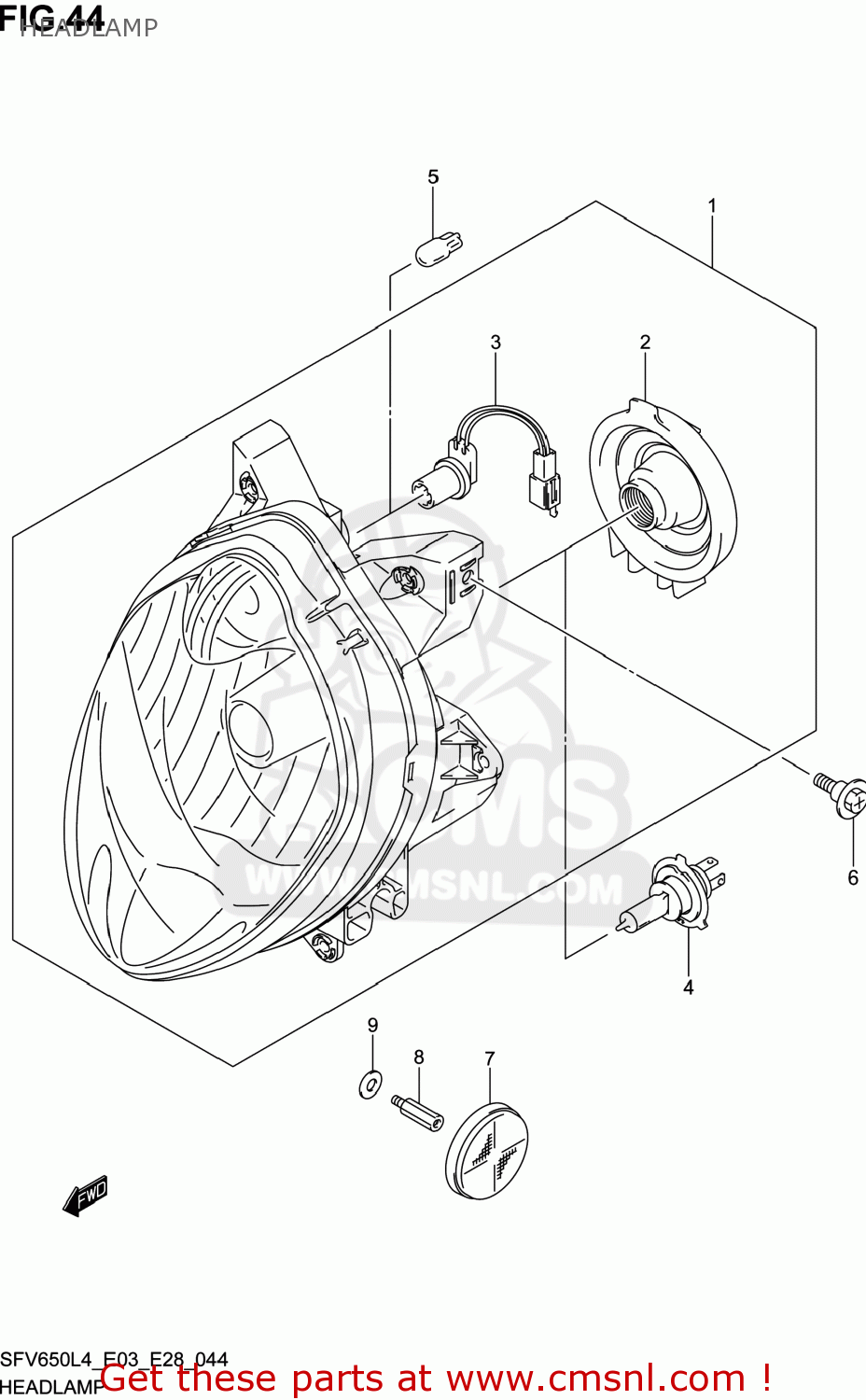

Headlamp diagram SFV650A GLADIUS 2014 (L4) USA (E03)

HEADLAMP SFV650A GLADIUS 2014 (L4) USA (E03)

HEADLAMP SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510044H02999
ref: 1

HEADLAMP ASSY

€ 409.00

2

3512577A00
ref: 2

COVER,SOCKET

€ 12.00

3

3611844H10
ref: 3

CORD ASSY

€ 21.50

4

0947112182
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112216
ref: 5

BULB(12V5W)

€ 5.00

6

0913906118
ref: 6

SCREW(6X22.5)

€ 3.50

7

3595014A11
ref: 7

REFLEX REFLECTOR ASSY,FR SIDE

€ 11.00

8

0911905023
ref: 8

BOLT(5X10)

€ 7.50

9

083220105B
ref: 9

WASHER

€ 2.50
