FRONT CALIPER

SFV650A GLADIUS 2014 (L4) USA (E03)

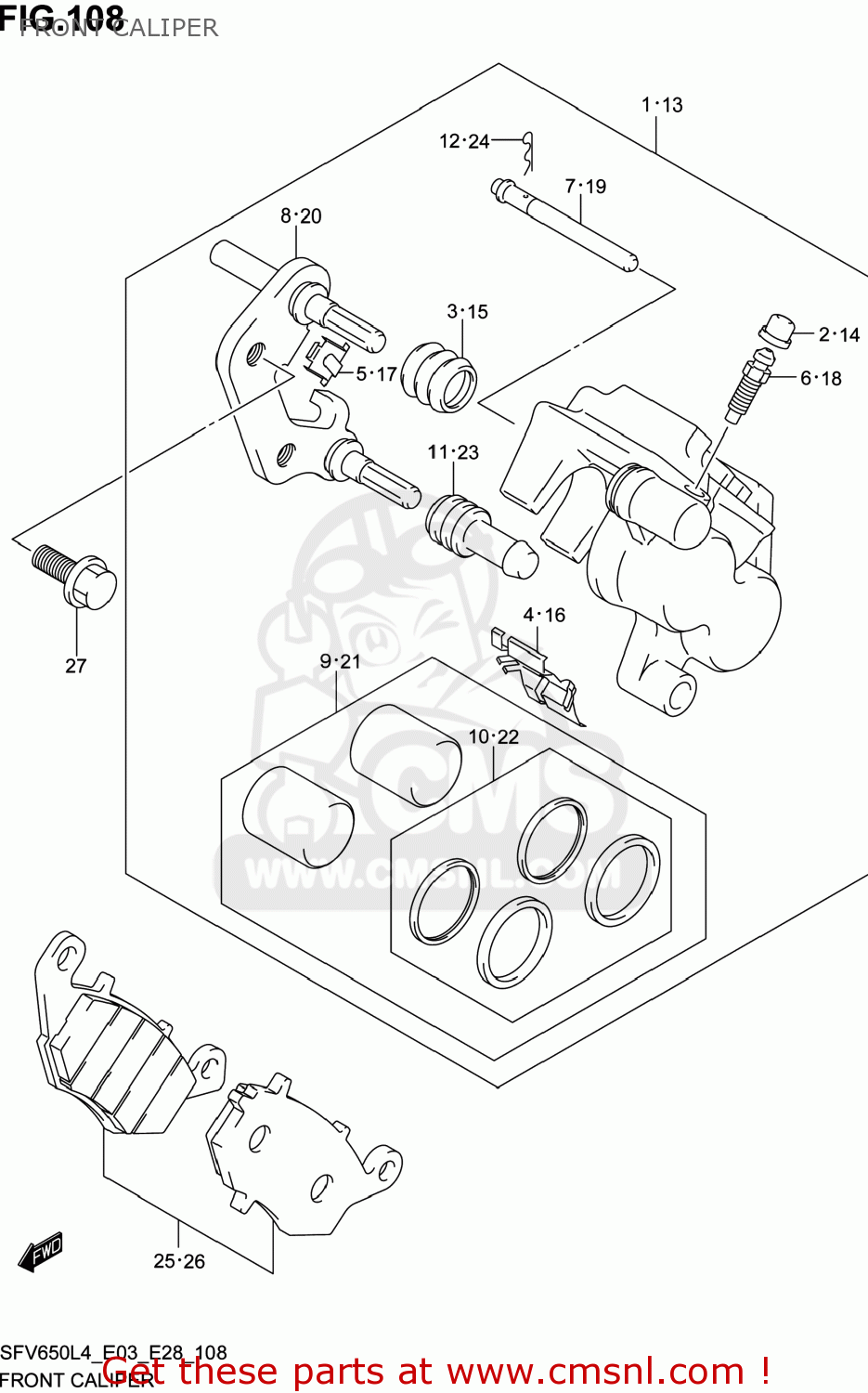

Front caliper diagram SFV650A GLADIUS 2014 (L4) USA (E03)

FRONT CALIPER SFV650A GLADIUS 2014 (L4) USA (E03)

FRONT CALIPER SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5910033DJ0999
ref: 1

CALIPER ASSY,FR,R

€ 411.50

2

5515666310
ref: 2

CAP,BLEEDER PLUG

€ 6.00

3

5911244B00
ref: 3

BOOT,AXLE

€ 8.00

4

5911533D00
ref: 4

SPRING,PAD,R

€ 12.00

5

5911633D00
ref: 5

GUIDE,PAD

€ 6.50

6

5912118410
ref: 6

BLEEDER

€ 8.00

7

5914144B01
ref: 7

PIN,PAD

€ 8.00

8

5915033D01
ref: 8

CARRIER,CALIPER,R

€ 70.00

9

5930001820
ref: 9

PISTON SET

€ 55.00

10

5910004851
ref: 10

SEAL SET,PISTON

€ 16.50

11

5931336500
ref: 11

INSULATOR,AXLE

€ 5.50

12

6914245000
ref: 12

CLIP,PAD PIN

€ 4.50

13

5930033DJ0999
ref: 13

CALIPER ASSY,FR,L

€ 407.50

14

5515666310
ref: 14

CAP,BLEEDER PLUG

€ 6.00

15

5911244B00
ref: 15

BOOT,AXLE

€ 8.00

16

5931533D00
ref: 16

SPRING,PAD,L

€ 11.50

17

5911633D00
ref: 17

GUIDE,PAD

€ 6.50

18

5912118410
ref: 18

BLEEDER

€ 8.00

19

5914144B01
ref: 19

PIN,PAD

€ 8.00

20

5935033D01
ref: 20

CARRIER,CALIPER,L

€ 70.00

21

5930001820
ref: 21

PISTON SET

€ 55.00

22

5910004851
ref: 22

SEAL SET,PISTON

€ 16.50

23

5931336500
ref: 23

INSULATOR,AXLE

€ 5.50

24

6914245000
ref: 24

CLIP,PAD PIN

€ 4.50

25

5910133880
ref: 25

PAD SET (NAS)

€ 67.50

26

5930233890
ref: 26

PAD SET (NAS)

€ 62.00

27

015501025A
ref: 27

BOLT

€ 2.00
