FRONT FENDER

SFV650A GLADIUS 2014 (L4) USA (E03)

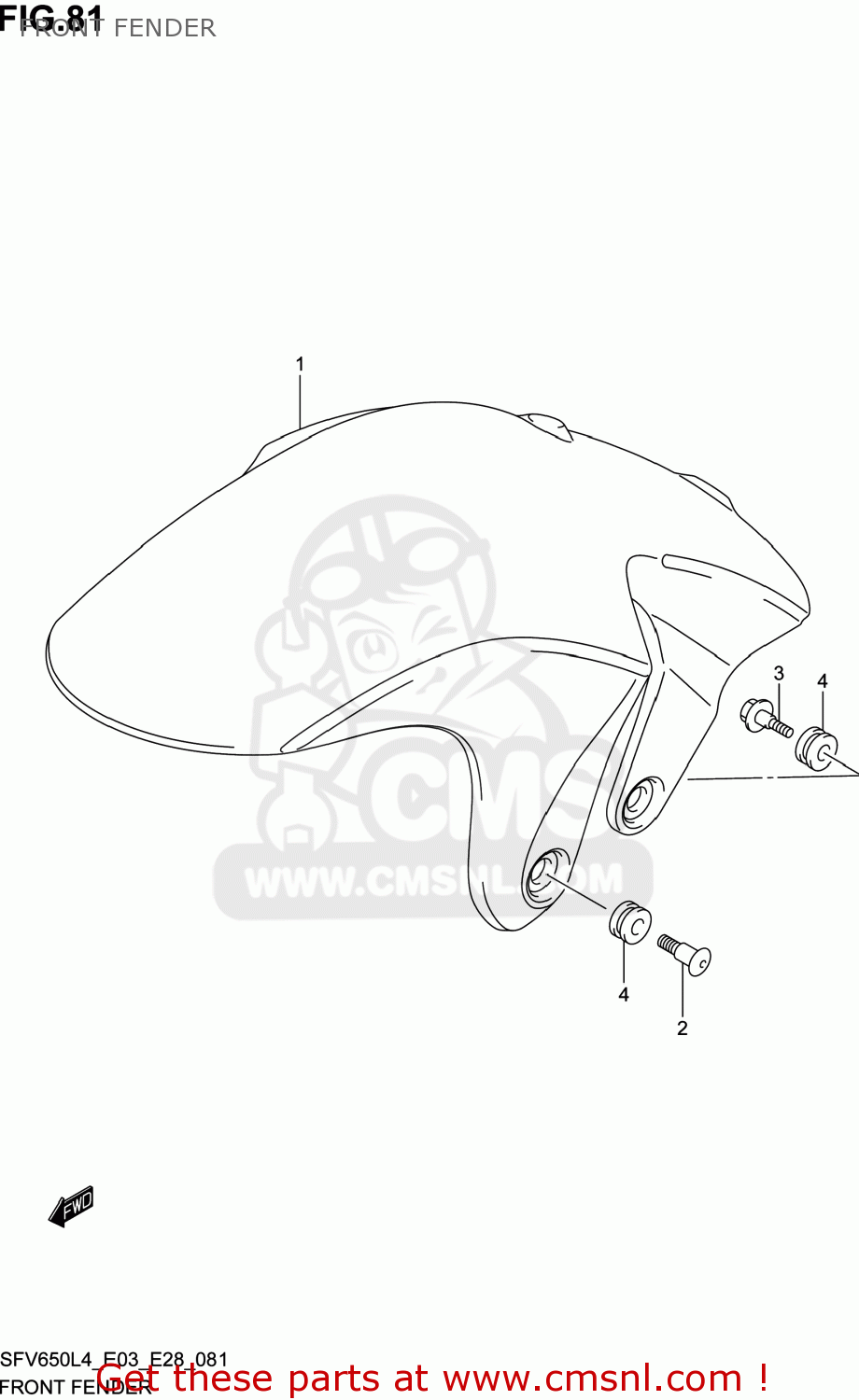

Front fender diagram SFV650A GLADIUS 2014 (L4) USA (E03)

FRONT FENDER SFV650A GLADIUS 2014 (L4) USA (E03)

FRONT FENDER SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311144H00YLF
ref: 1-1

FENDER,FR

€ 139.00

1-2

5311144H00YWW
ref: 1-2

FENDER,FR

€ 139.00

1-3

5311144H00YKV
ref: 1-3

FENDER,FR

€ 139.00

2

0913906146
ref: 2

SCREW(6X16)

€ 3.00

3

0911106092
ref: 3

BOLT(6X19)

€ 2.50

4

0932009016
ref: 4

CUSHION

€ 2.50
