REAR SWINGINGARM

SFV650A GLADIUS 2014 (L4) USA (E03)

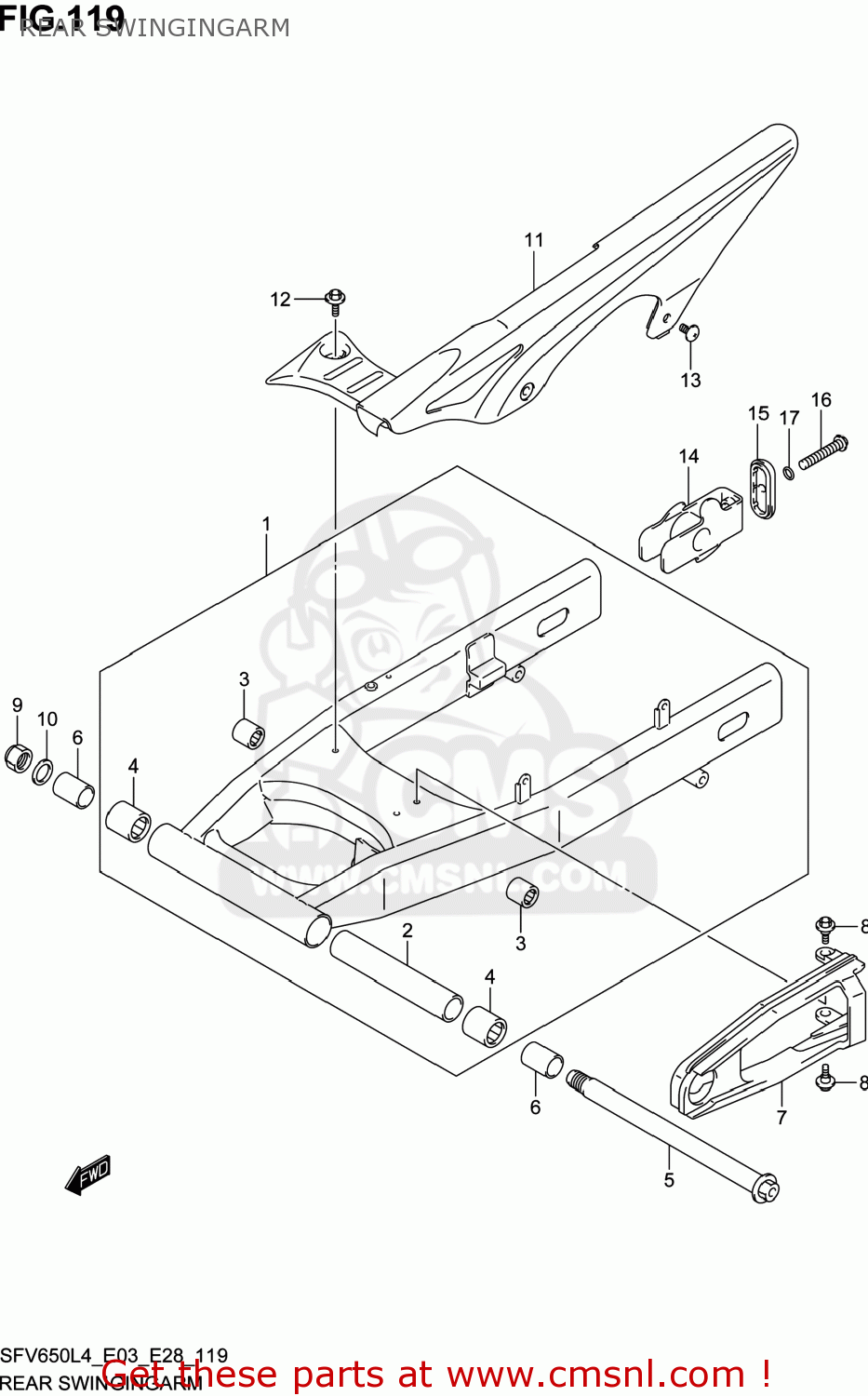

Rear swingingarm diagram SFV650A GLADIUS 2014 (L4) USA (E03)

REAR SWINGINGARM SFV650A GLADIUS 2014 (L4) USA (E03)

REAR SWINGINGARM SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100044H00YAP
ref: 1

SWINGINGARM ASSY,RR

€ 833.50

2

6128217C00
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 11.50

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926325059
ref: 4

BEARING(25X33X35)

€ 35.00

5

6121131E00
ref: 5

SHAFT,RR SWINGINGARM PIVOT

€ 53.00

6

6125121E00
ref: 6

SPACER,RR SWGARM PIVOT

€ 8.50

7

6127344H00
ref: 7

BUFFER,CHAIN TOUCH DEFENSE

€ 19.00

8

0911106072
ref: 8

BOLT(6X17.8)

€ 2.00

9

0915918007
ref: 9

NUT

€ 14.00

10

0916018030
ref: 10

WASHER(18.5X28X2.6)

€ 2.50

11

6131044H00
ref: 11

CASE,CHAIN

€ 51.00

12

0911106065
ref: 12

BOLT(6X16)

€ 2.00

13

0913906168
ref: 13

SCREW(6X16)

€ 2.00

14

6141044H00
ref: 14

ADJUSTER,CHAIN

€ 16.00

15

6142144H0013L
ref: 15

PLATE,CHAIN ADJUSTER GUIDE

€ 22.50

16

0910608119
ref: 16

BOLT(8X50)

€ 4.50

17

0916408015
ref: 17

WASHER

€ 3.00
